Vehicle Security Module C3008e

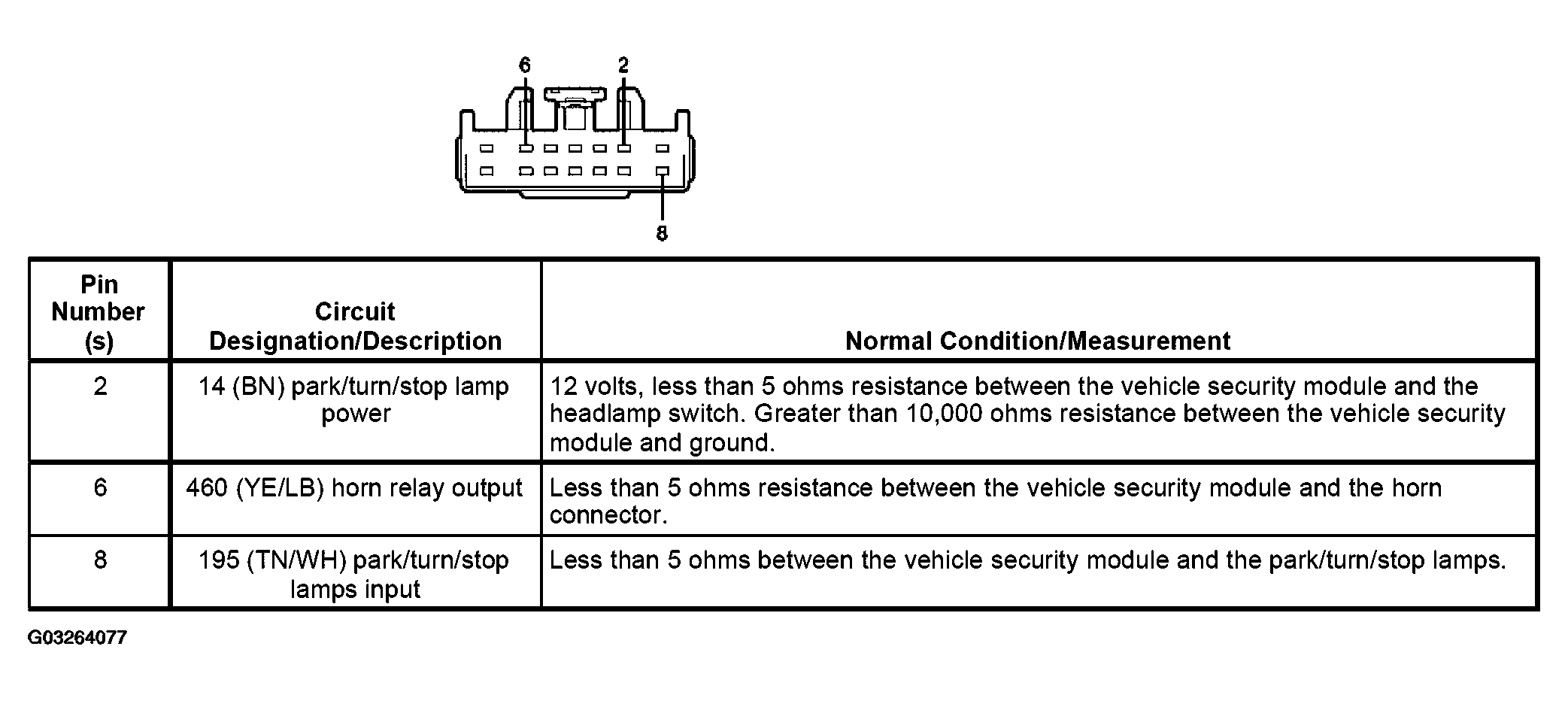

Fig 1: Identifying Vehicle Security Module C3008e
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
