Door Lock Unit, Passenger Side Front (5421812)

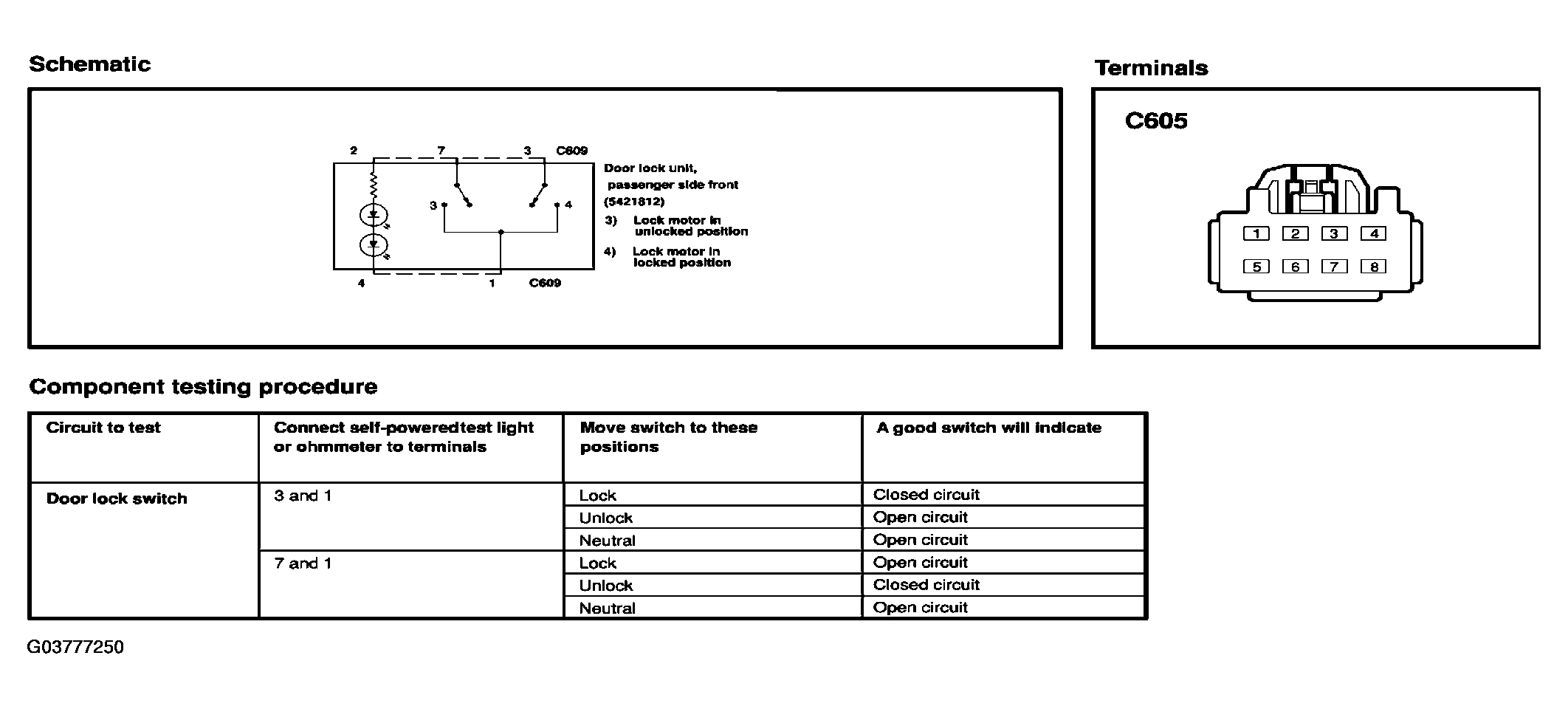

Fig 1: Testing Door Lock Switch - Passenger Side Front
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
