Knock Sensor

The knock sensor (KS) (Fig 1) is a tuned accelerometer on the engine which converts engine vibration to an electrical signal. The PCM uses this signal to determine the presence of engine knock and to retard spark timing.

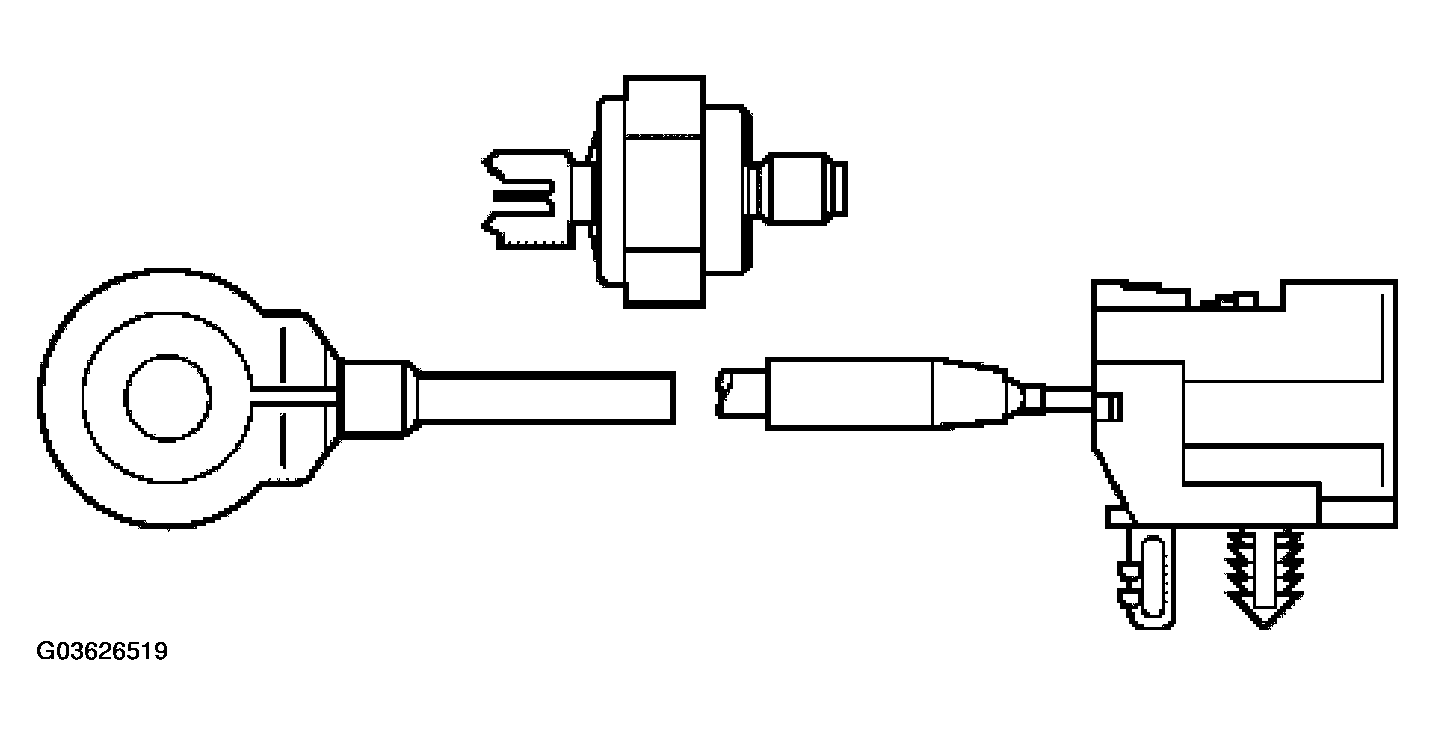

Fig 1: Identifying Two Types Of Knock Sensor (KS)

Courtesy of FORD MOTOR CO.
