Variable Assist Power Steering (VAPS) Module C2231a

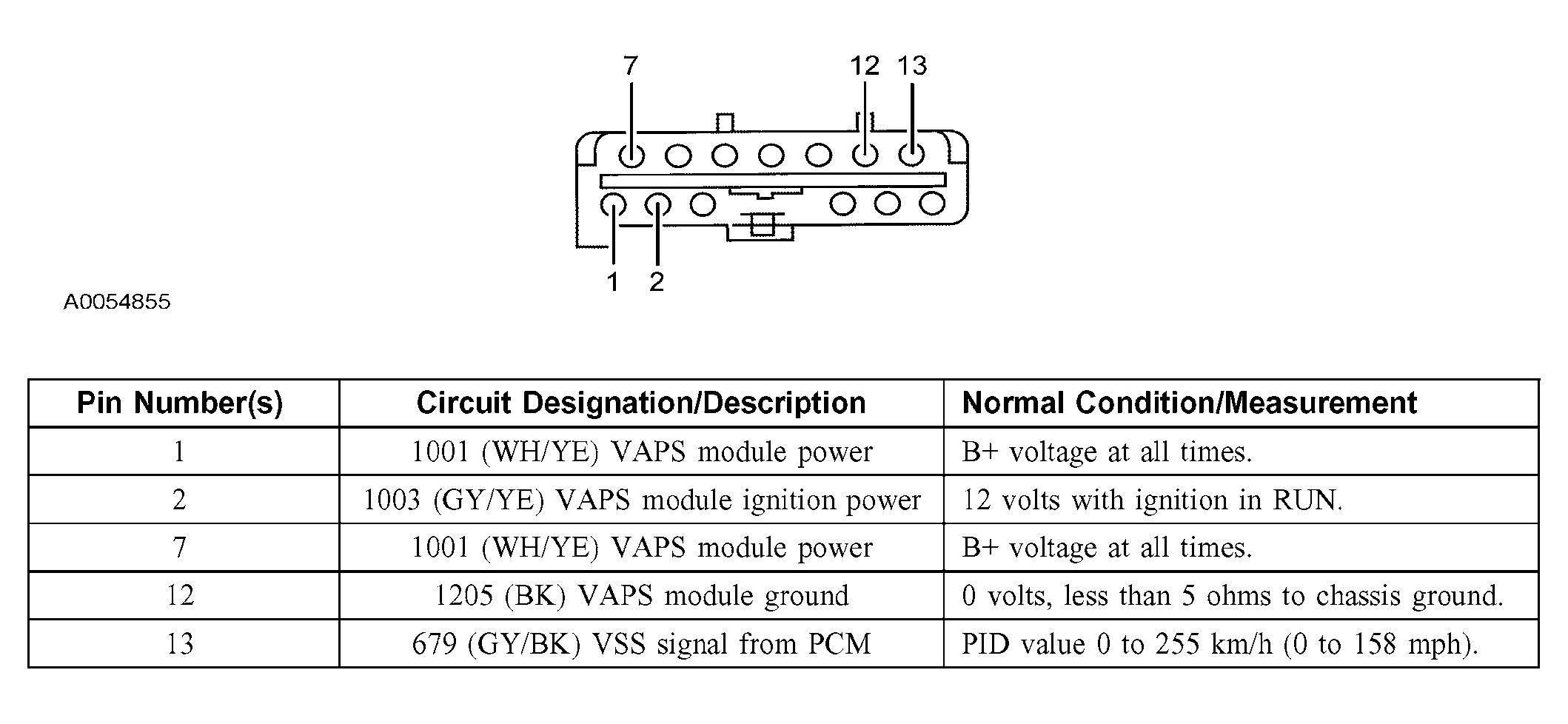

Fig 1: Identifying Variable Assist Power Steering Module C2231a Connector Pins
G04025862Courtesy of FORD MOTOR CO.
