Pinpoint Test A: No Communication With The Navigation System Module

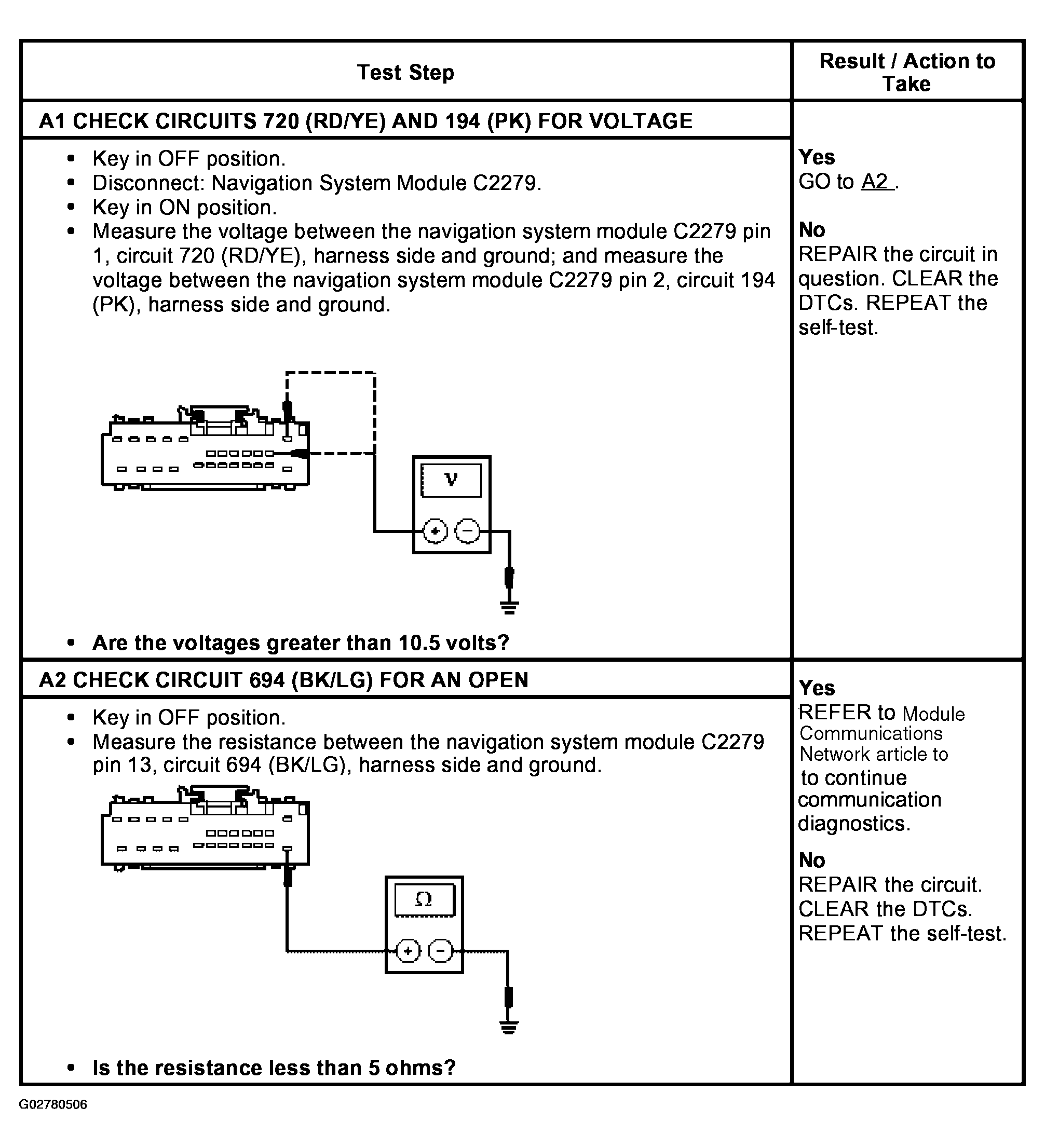

Fig 1: Pinpoint Test A: No Communication With Navigation System Module (Steps A1-A2)
G02780506Courtesy of FORD MOTOR CO.
