Pinpoint Test A: Electronic Shift Functional Test

CAUTION: The function test must be carried out on a hard surface in a vacant area without traffic.

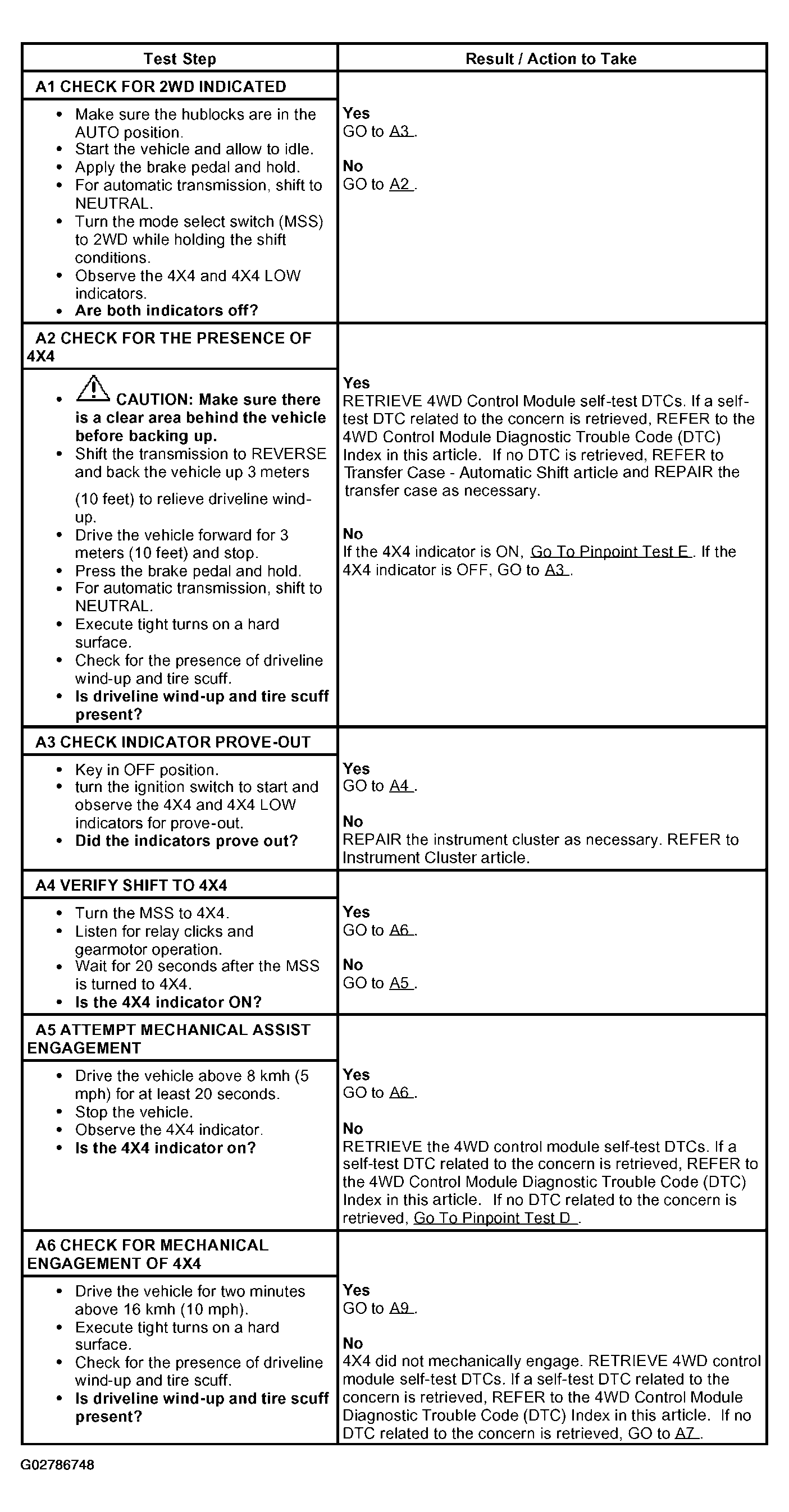

Fig 1: Pinpoint Test A: Electronic Shift Functional Test (Steps A1-A6)

Courtesy of FORD MOTOR CO.

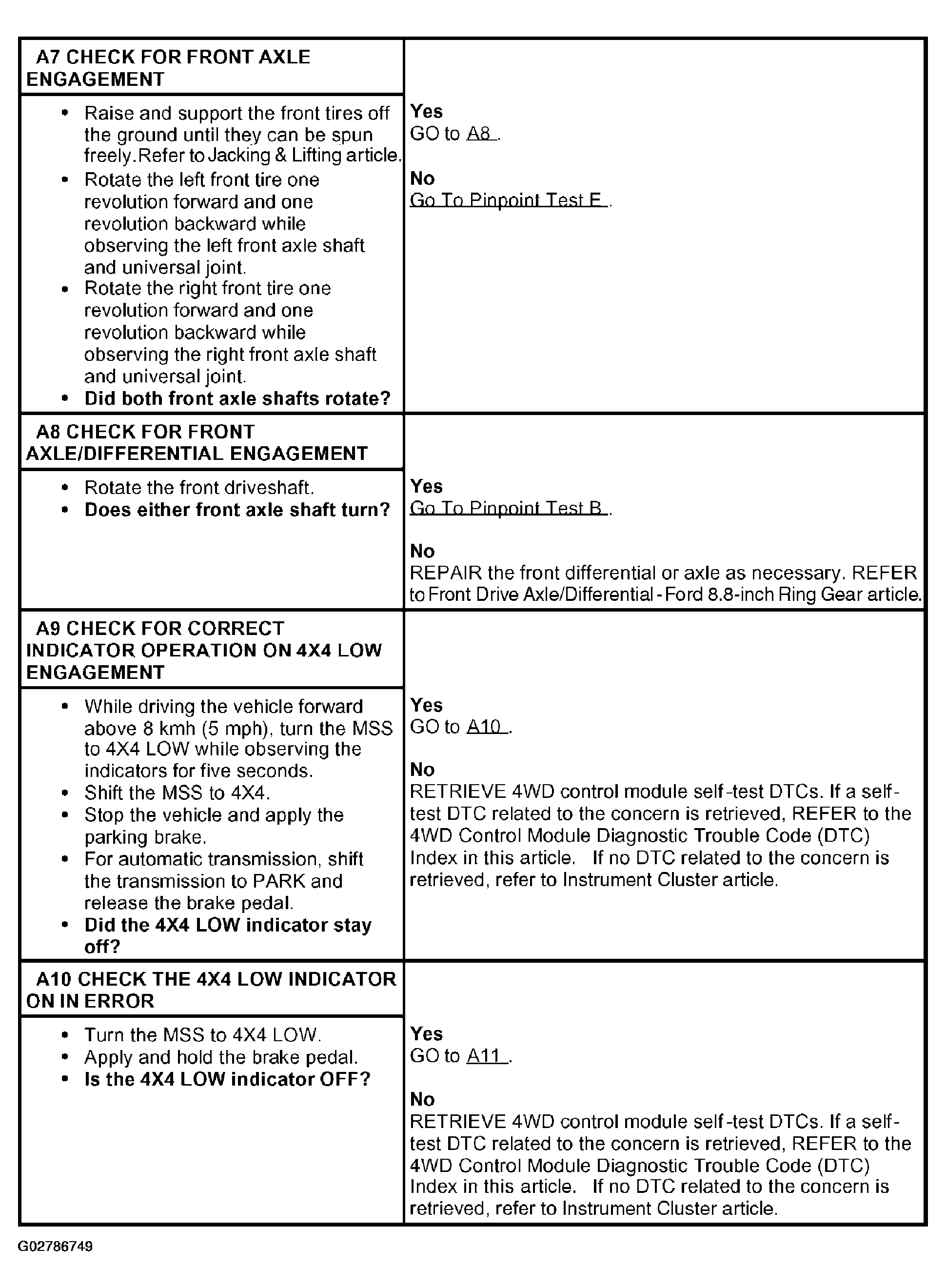

Fig 2: Pinpoint Test A: Electronic Shift Functional Test (Steps A7-A10)

Courtesy of FORD MOTOR CO.

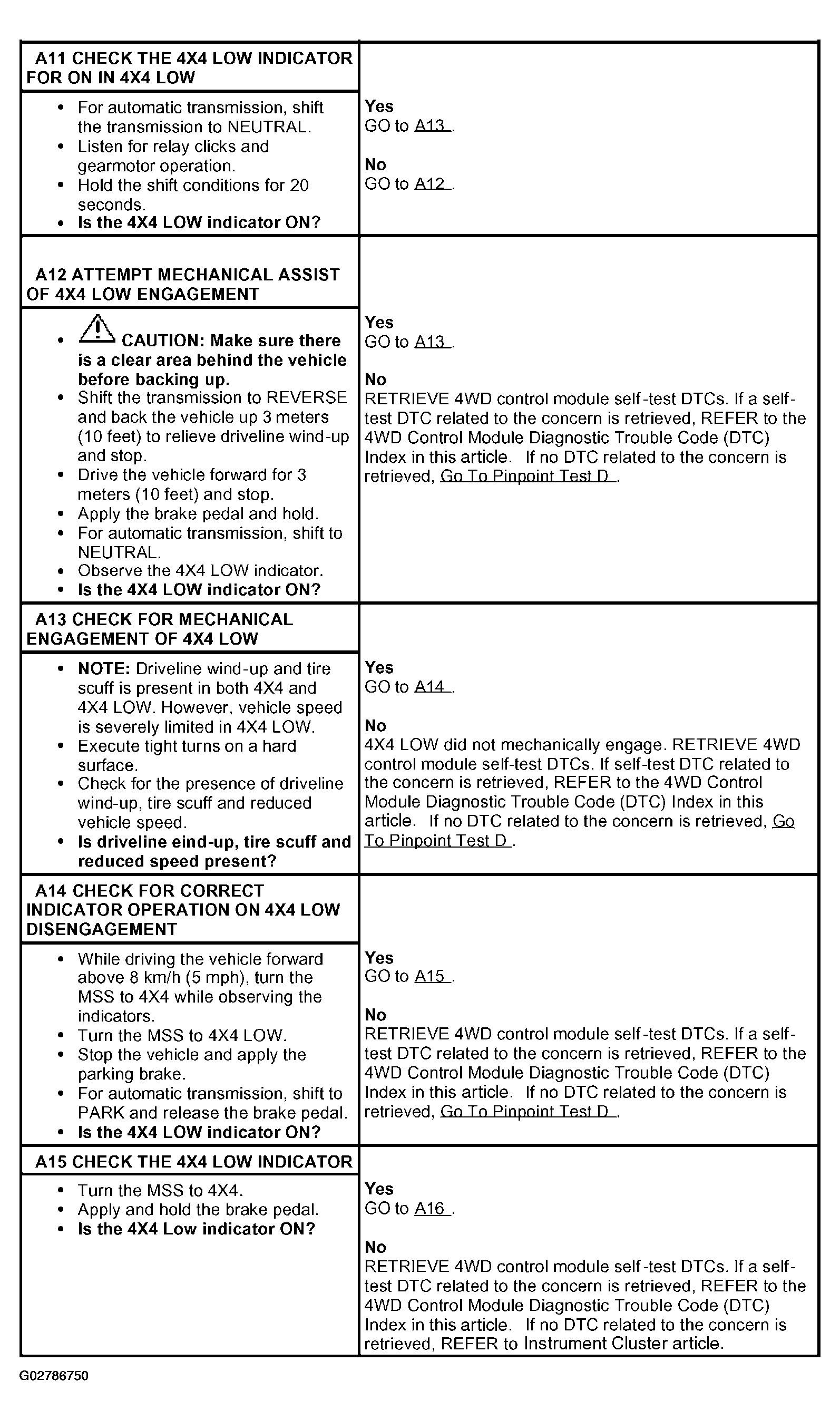

Fig 3: Pinpoint Test A: Electronic Shift Functional Test (Steps A11-A15)

Courtesy of FORD MOTOR CO.

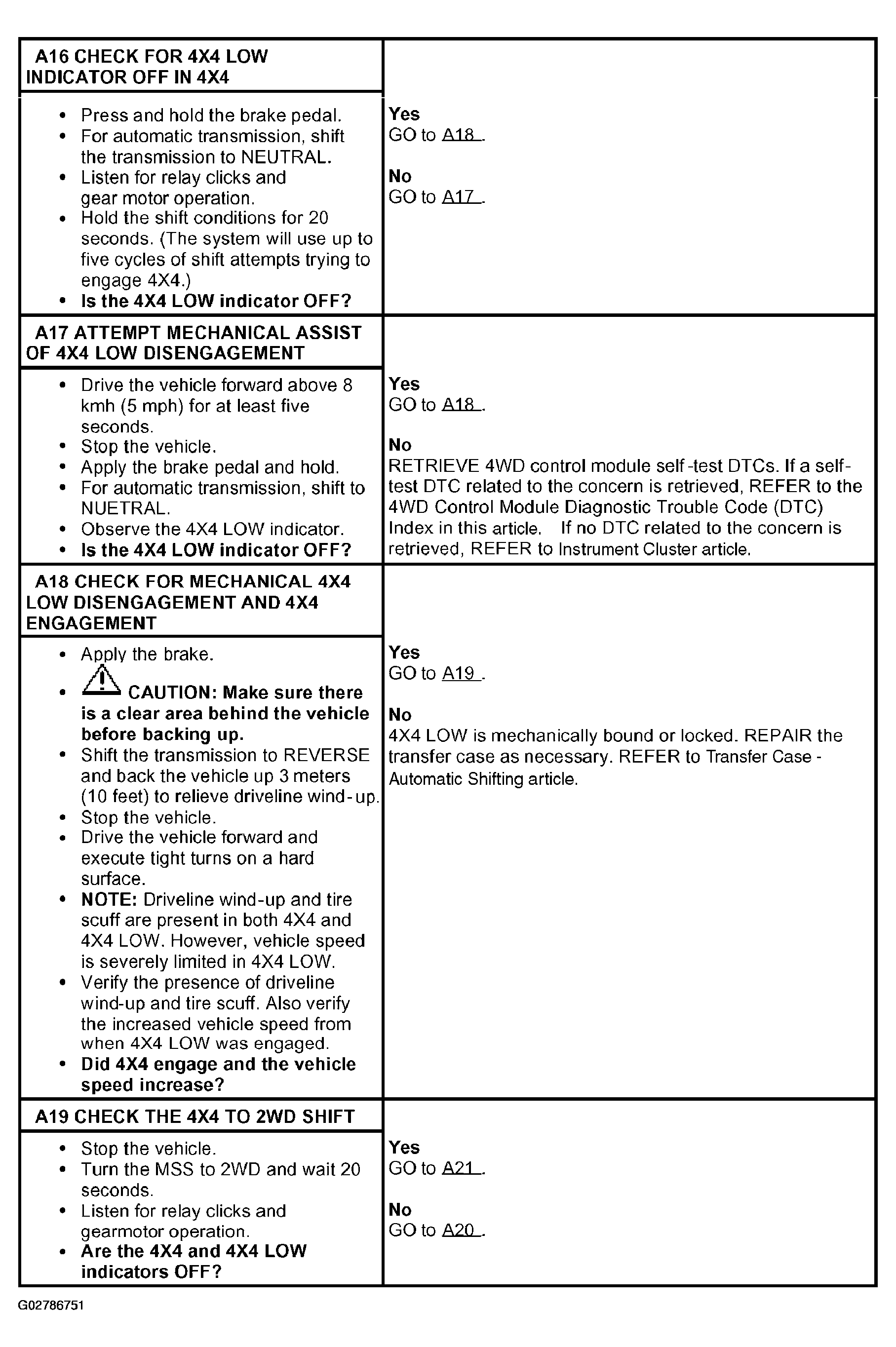

Fig 4: Pinpoint Test A: Electronic Shift Functional Test (Steps A16-A19)

Courtesy of FORD MOTOR CO.

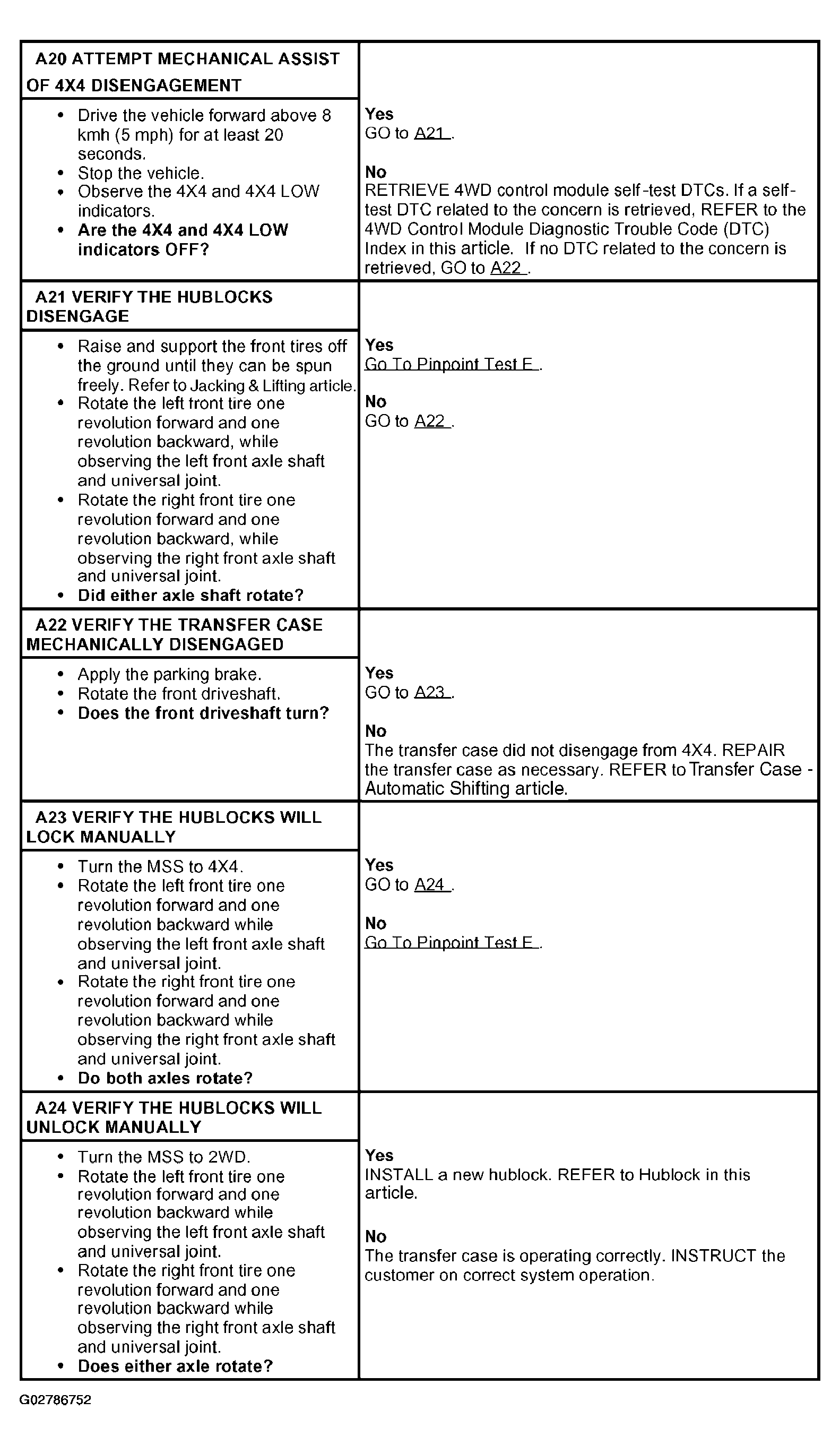

Fig 5: Pinpoint Test A: Electronic Shift Functional Test (Steps A20-A24)

Courtesy of FORD MOTOR CO.
