Pinpoint test DM: Manifold Absolute Pressure (MAP) and Thermal Manifold Absolute Pressure (TMAP) Sensor: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:

• Thermal Manifold Absolute Pressure (TMAP) Sensor.
• Harness Circuits: MAP, SIGRTN, VREF.

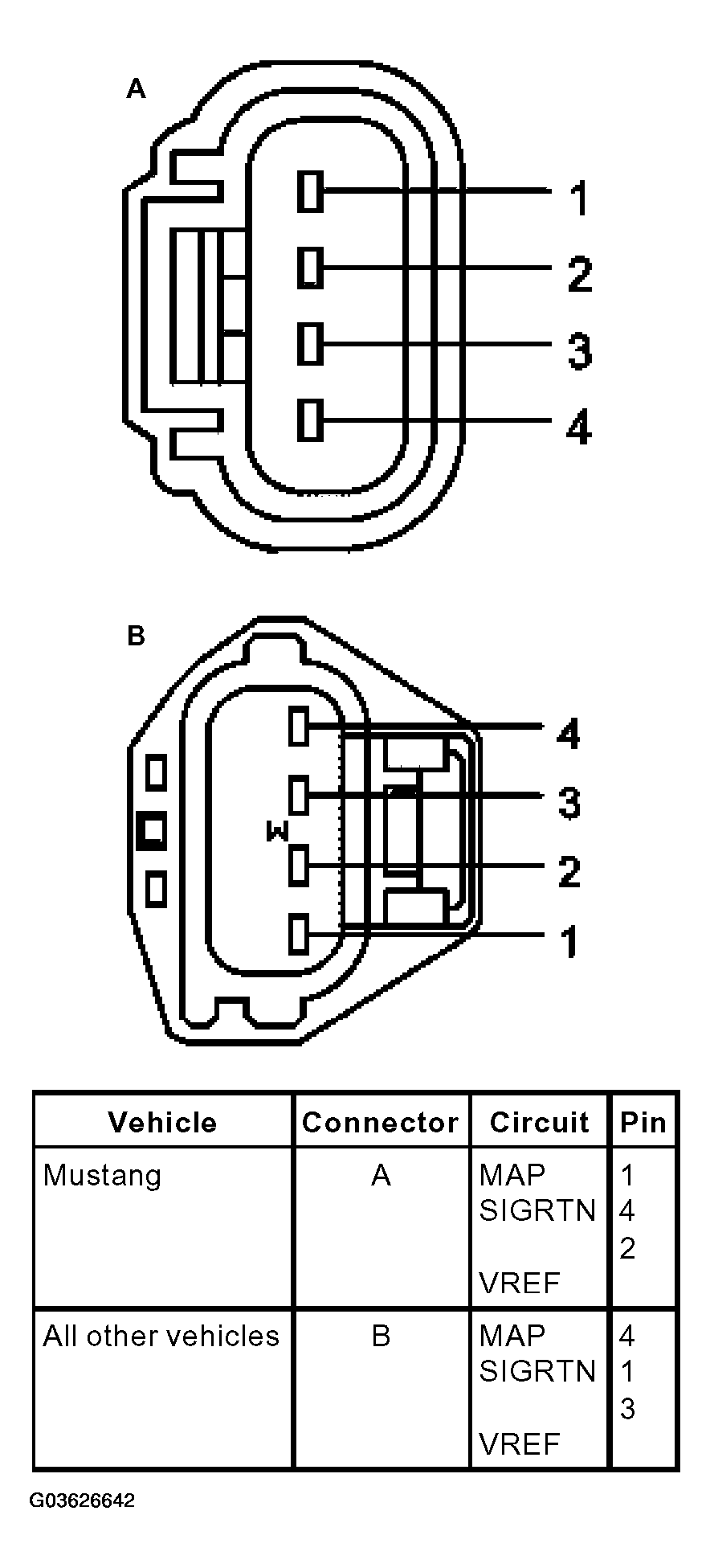

Fig 1: Identifying Manifold Absolute Pressure/Thermal Manifold Absolute Pressure (MAP/TMAP) Sensor Connector

Courtesy of FORD MOTOR CO.

Fig 2: Identifying EGR System Module (ESM) Connector

Courtesy of FORD MOTOR CO.
