Transmission Main Components - Sectional View

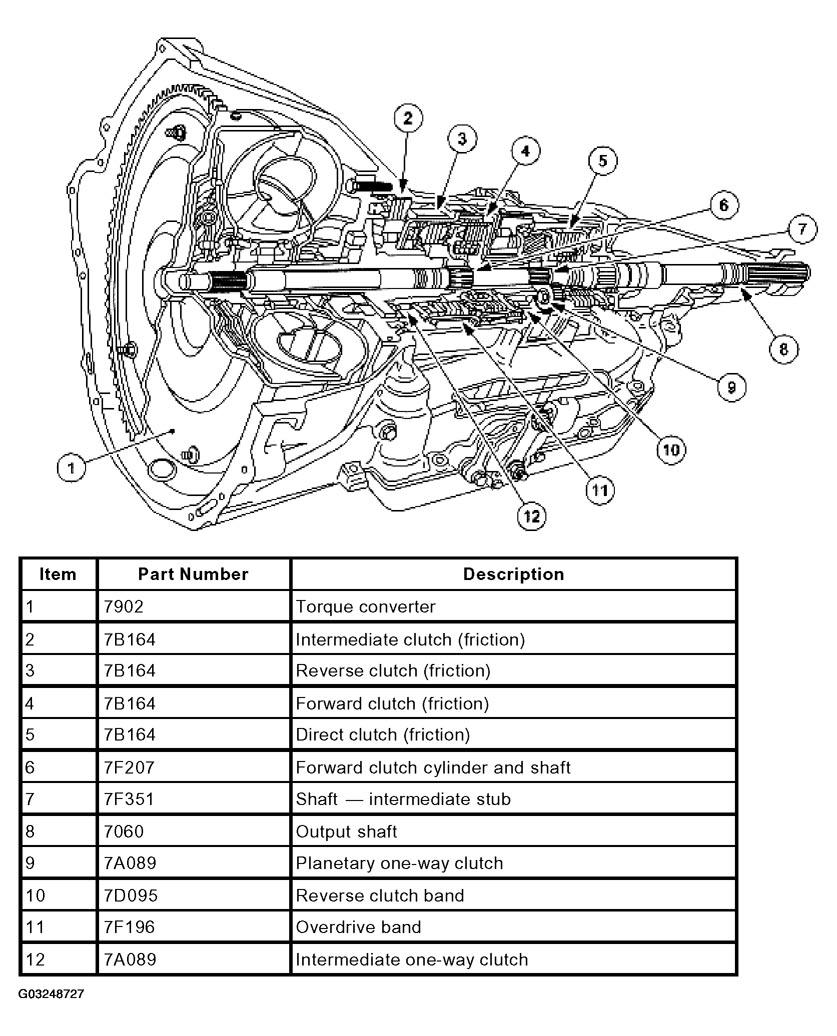

Fig 1: Sectional View Of Transmission Main Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
