Throttle Body: Installation

Install a new TB gasket, the throttle body and the bolts.
- Tighten the bolts in two stages.
  - Stage 1: Tighten to 9 Nm (80 lb-in).
  - Stage 2: Rotate an additional 90 degrees.

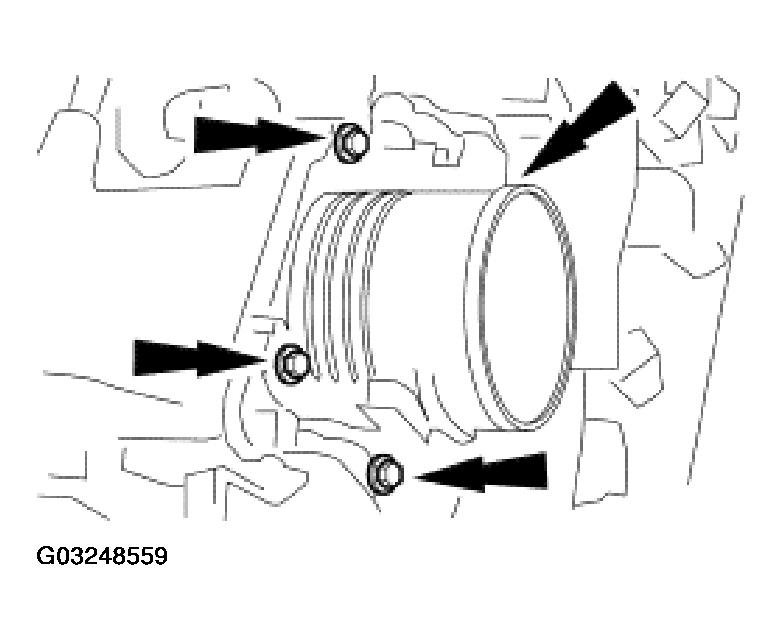

  Fig 1: Installing TB Gasket, Throttle Body And Bolts
  Courtesy of FORD MOTOR CO.
- Connect the accelerator cable, the speed control cable and the throttle return spring.

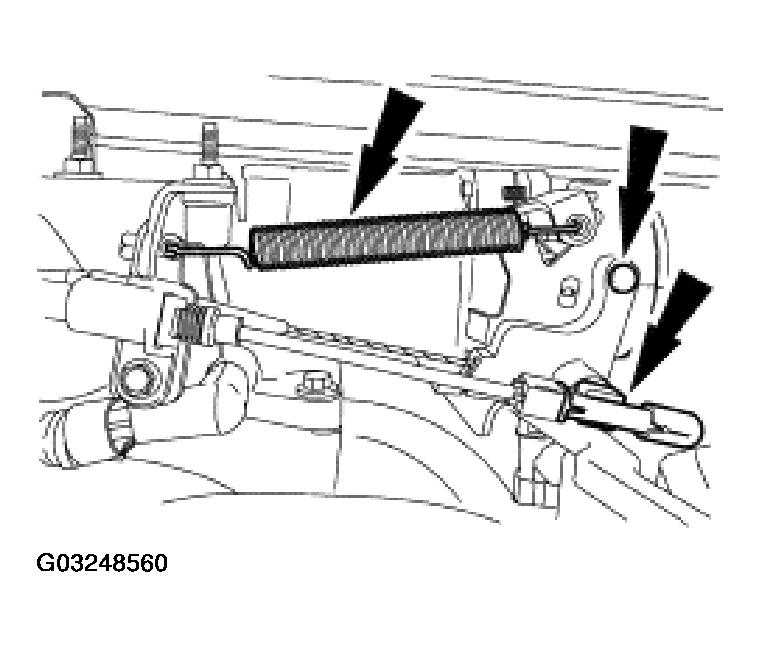

  Fig 2: Connecting Accelerator Cable, Speed Control Cable And Throttle Return Spring
  Courtesy of FORD MOTOR CO.
- Connect the TP sensor electrical connectors.

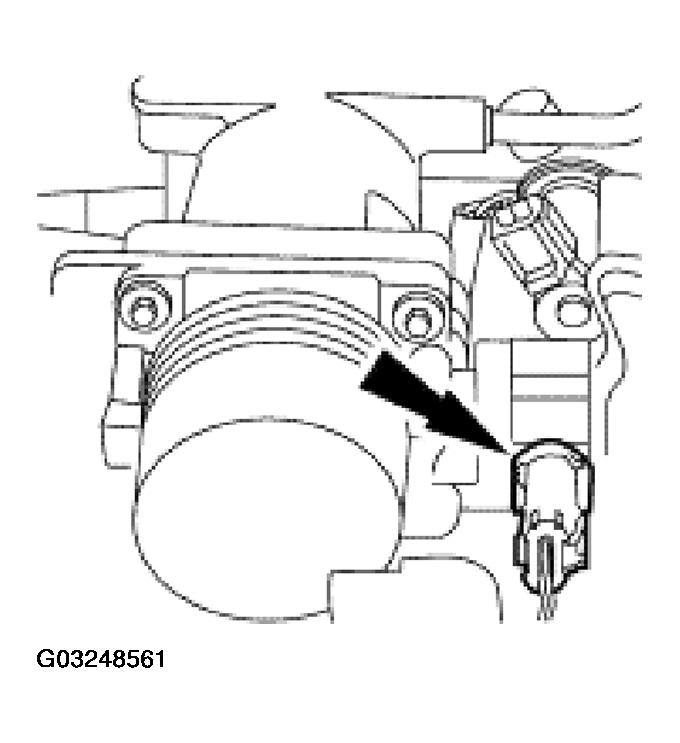

  Fig 3: Connecting TP Sensor Electrical Connectors
  Courtesy of FORD MOTOR CO.
- Install the resonator and tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
