Pinpoint Test G: Navigation System Does Not Operate Correctly - The Audible Switches Are Inoperative

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. G1 CHECK THE SWITCH DISPLAY
    • Key in ON position.
    • Turn the audio unit on.
    • Press the MENU button.
    • Select SYSTEM SETUP.
      Fig 1: Selecting System Setup
      G03931274Courtesy of FORD MOTOR CO.
    • Select AUDIBLE FEEDBACK.

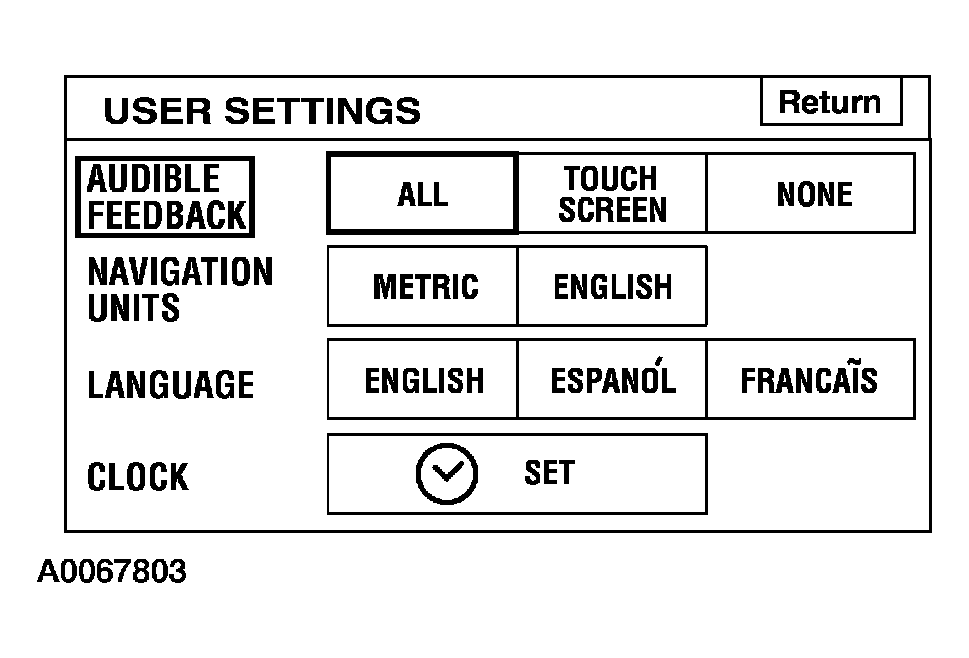

      Fig 2: Selecting Audible Feedback
      G04003746Courtesy of FORD MOTOR CO.
    • Is NONE highlighted on the audible feedback settings?
    • Yes  : Select ALL. TEST the system for normal operation.
    • No  : REMOVE the audio unit and SEND it to an authorized Ford audio system repair facility. REFER to AUDIO UNIT . TEST the system for normal operation.
