Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

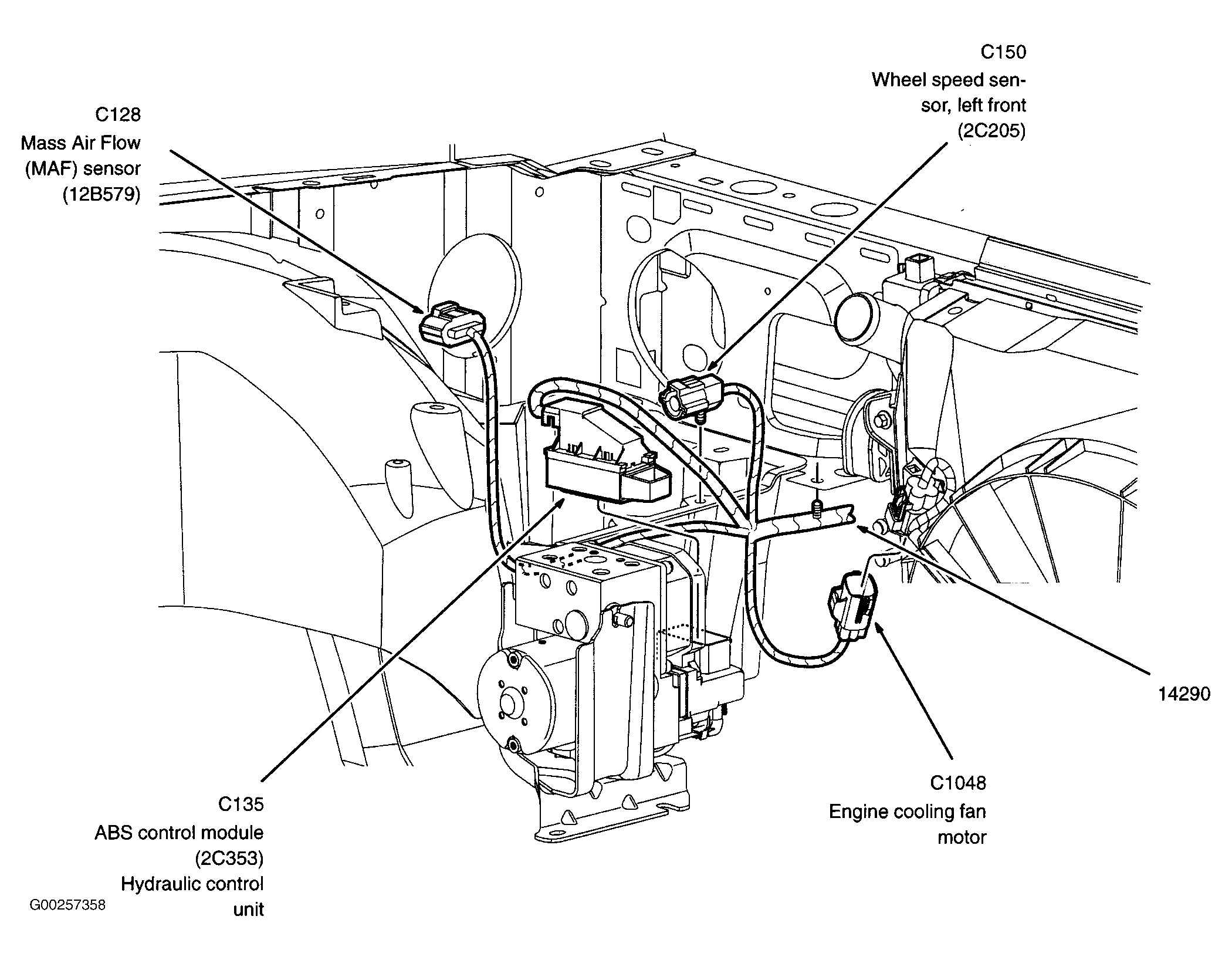

| ABS Control Module | Left side of engine compartment. See Figure . |

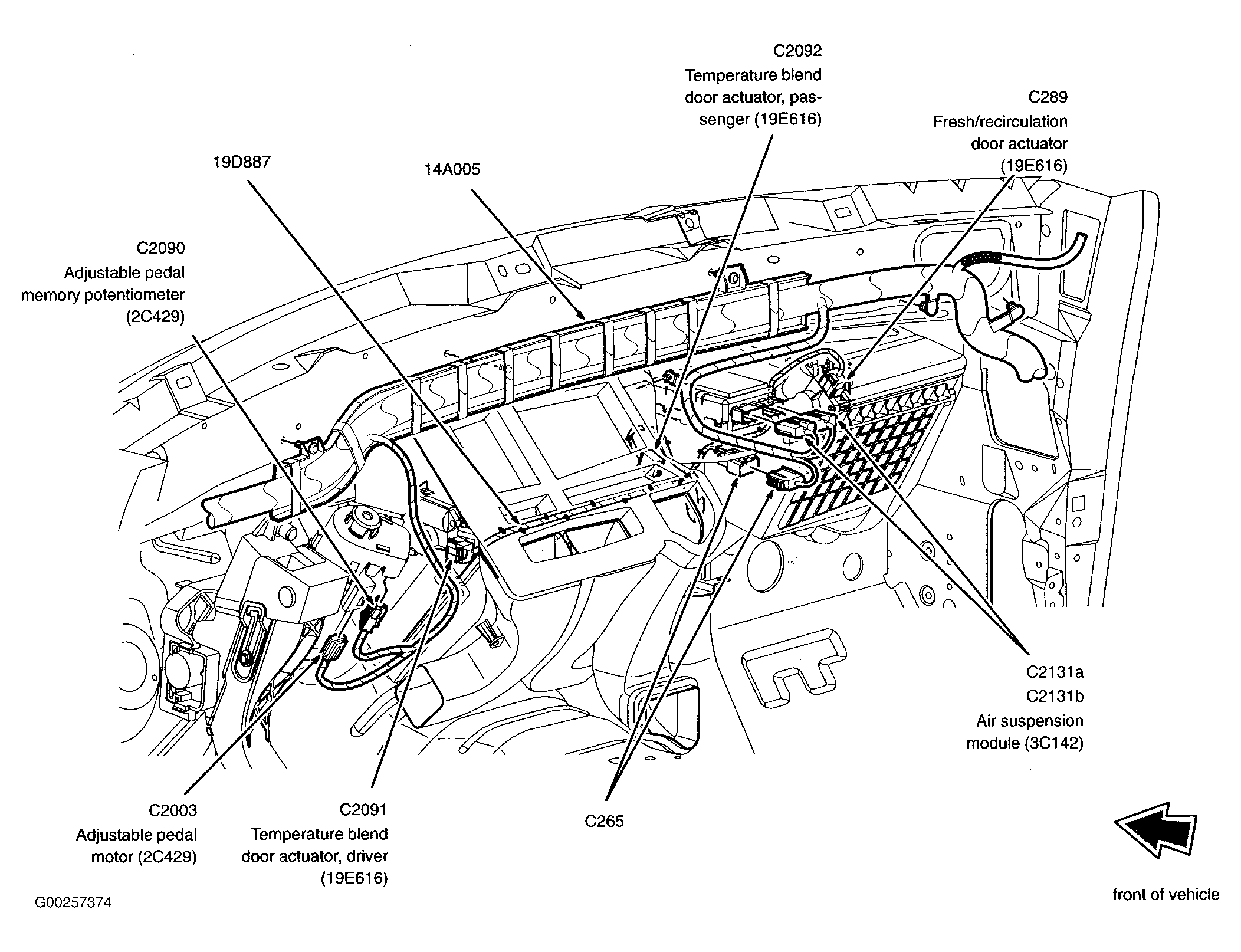

| Air Suspension Module | Under lower center of dash. See Figure . |
| Audio/Navigation Control Unit | Behind center of dashboard. See Figure . |

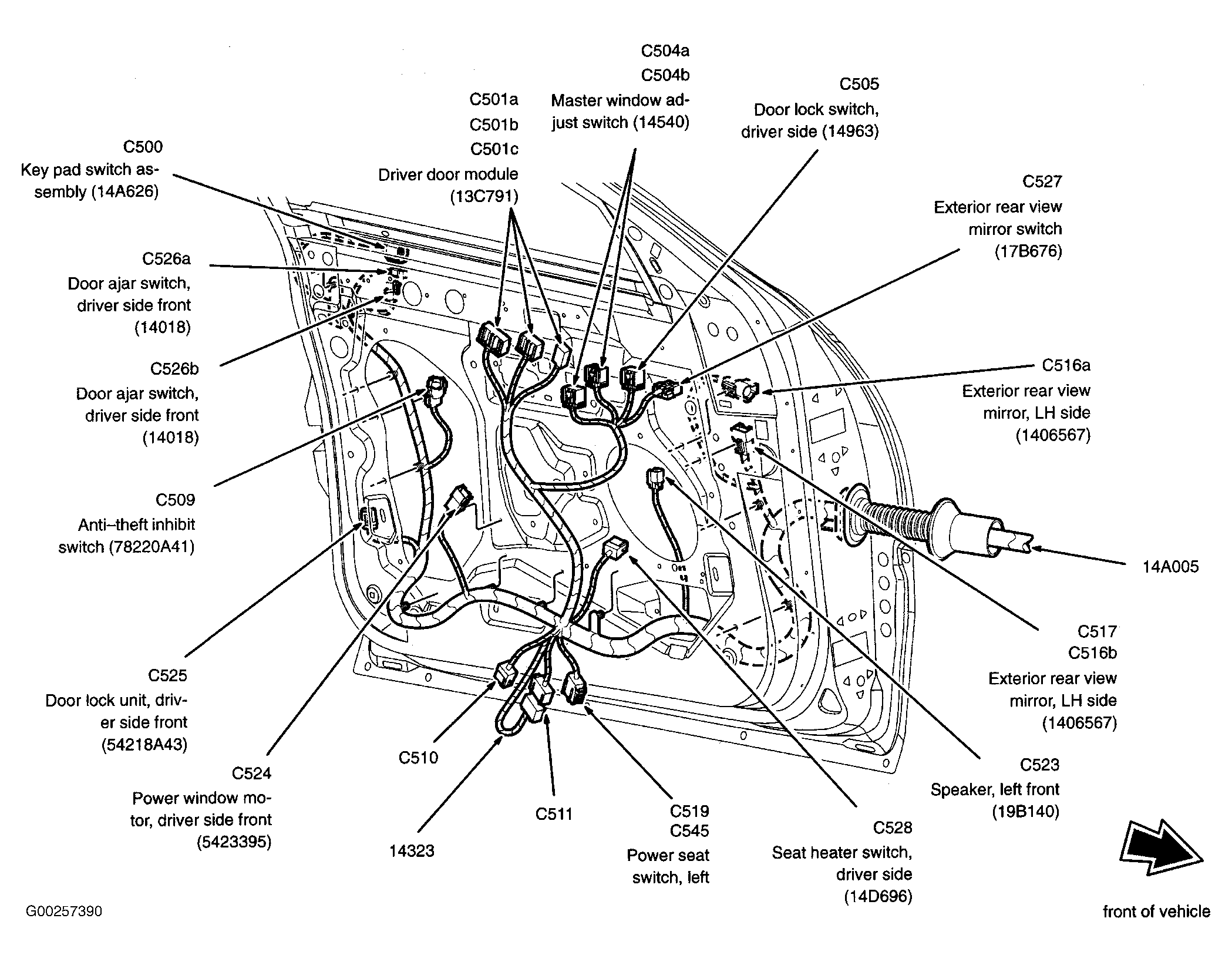

| Driver Door Module | In top front of left front door. See Figure . |

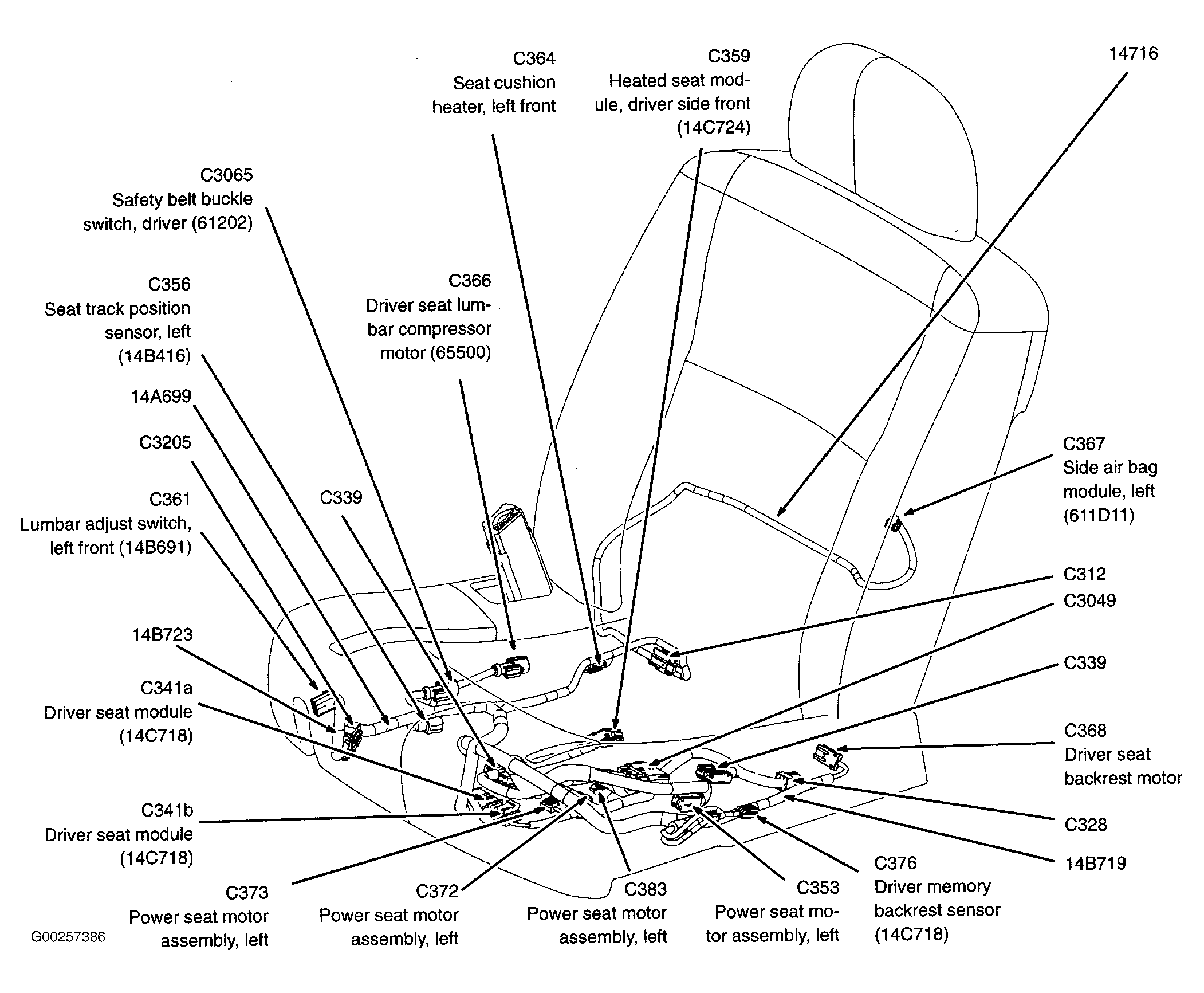

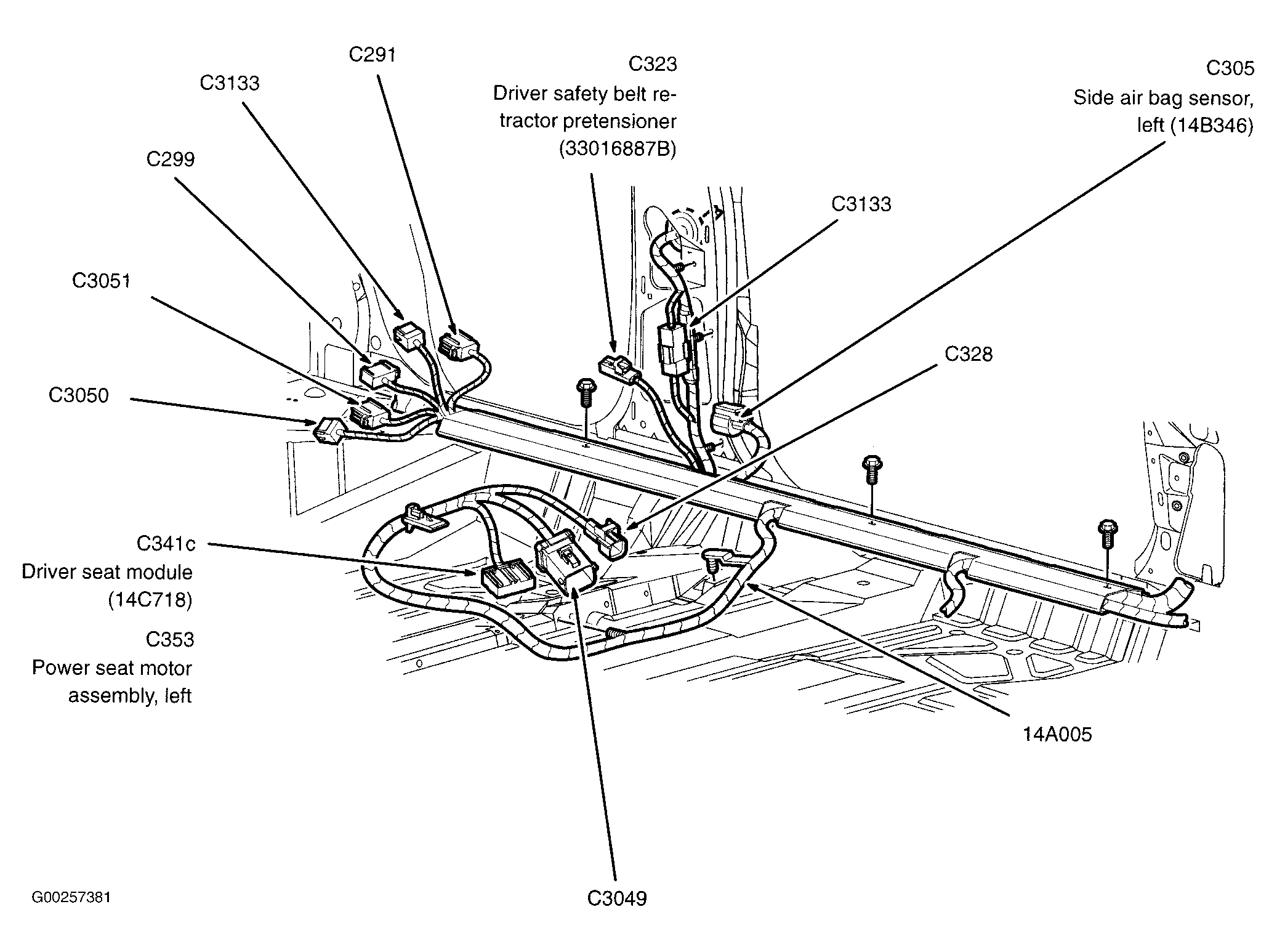

| Driver Seat Module | Under driver's seat. See Figure . |

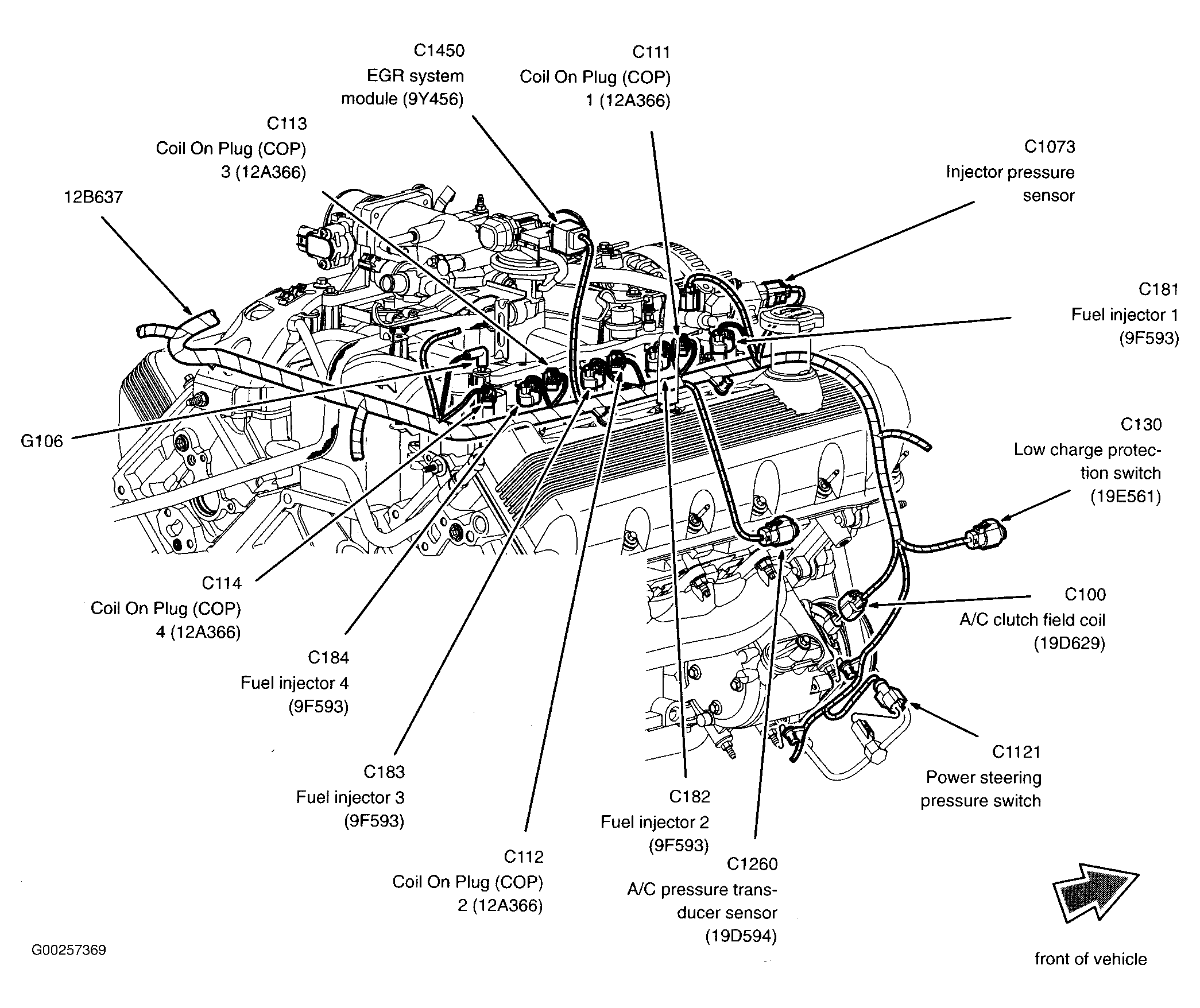

| EGR System Module | Top of engine. See Figure . |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure . |

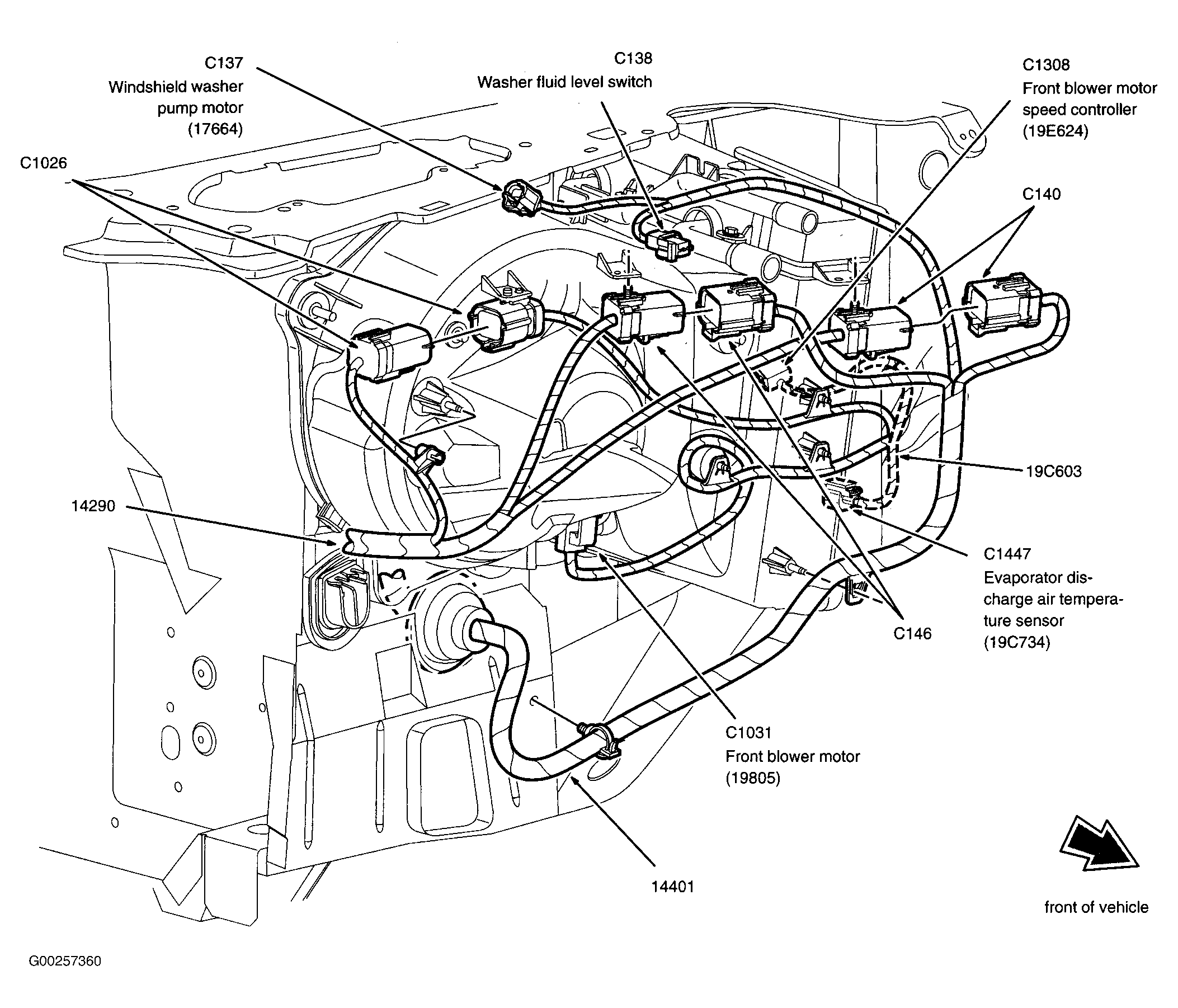

| Front Blower Motor Speed Controller | In right rear of engine compartment, on evaporator housing. See Figure . |

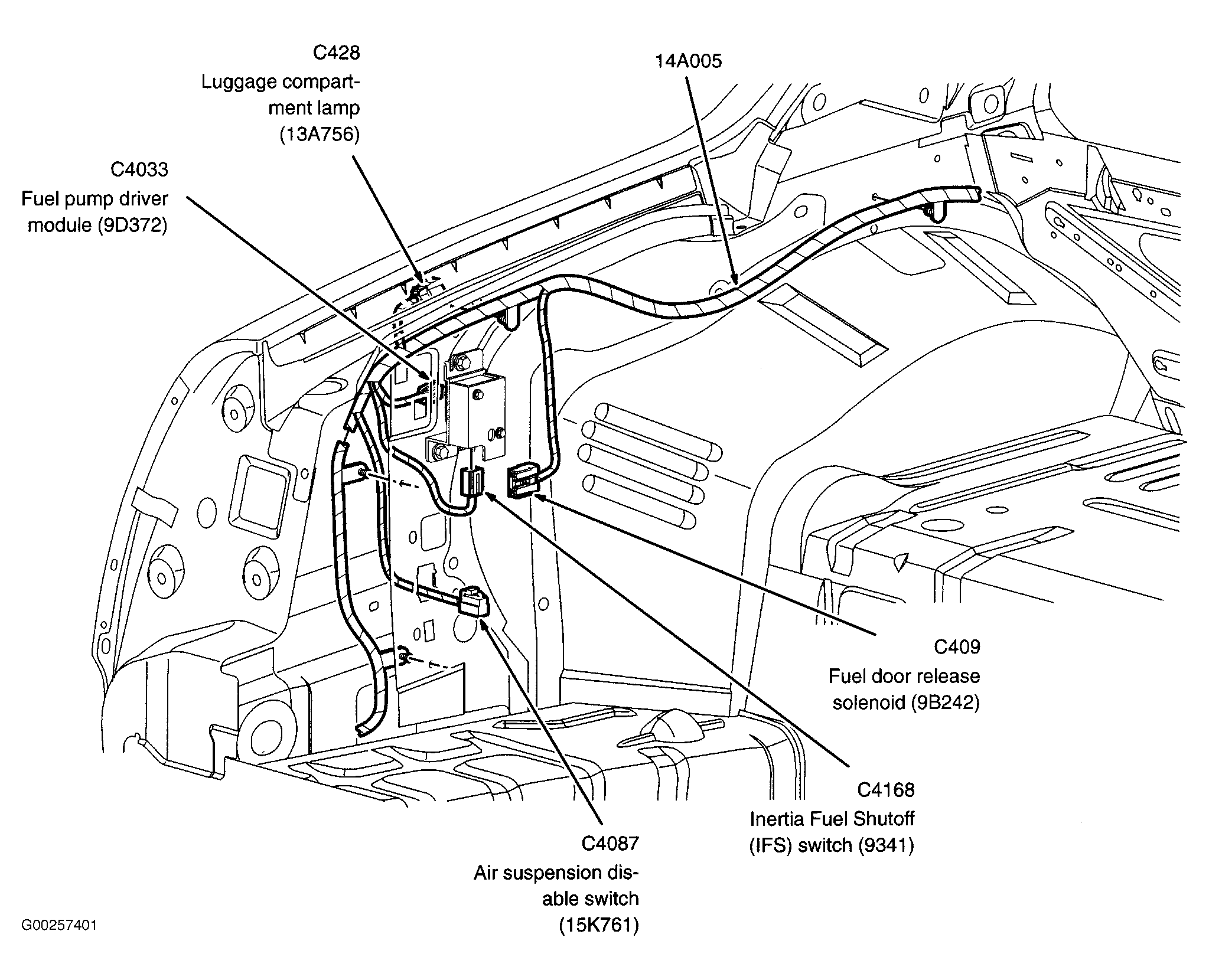

| Fuel Pump Driver Module | At left side of trunk. See Figure . |
| Heated Seat Module, Driver Side Front | Under driver's seat. See Figure . |
| Heated Seat Module, Left Rear | In left rear seat. See Figure . |
| Heated Seat Module, Passenger Side Front | Under passenger's seat. See Figure . |
| Heated Seat Module, Right Rear | In right rear seat. See Figure . |
| Hydraulic Control Unit | Left side of engine compartment. See Figure . |

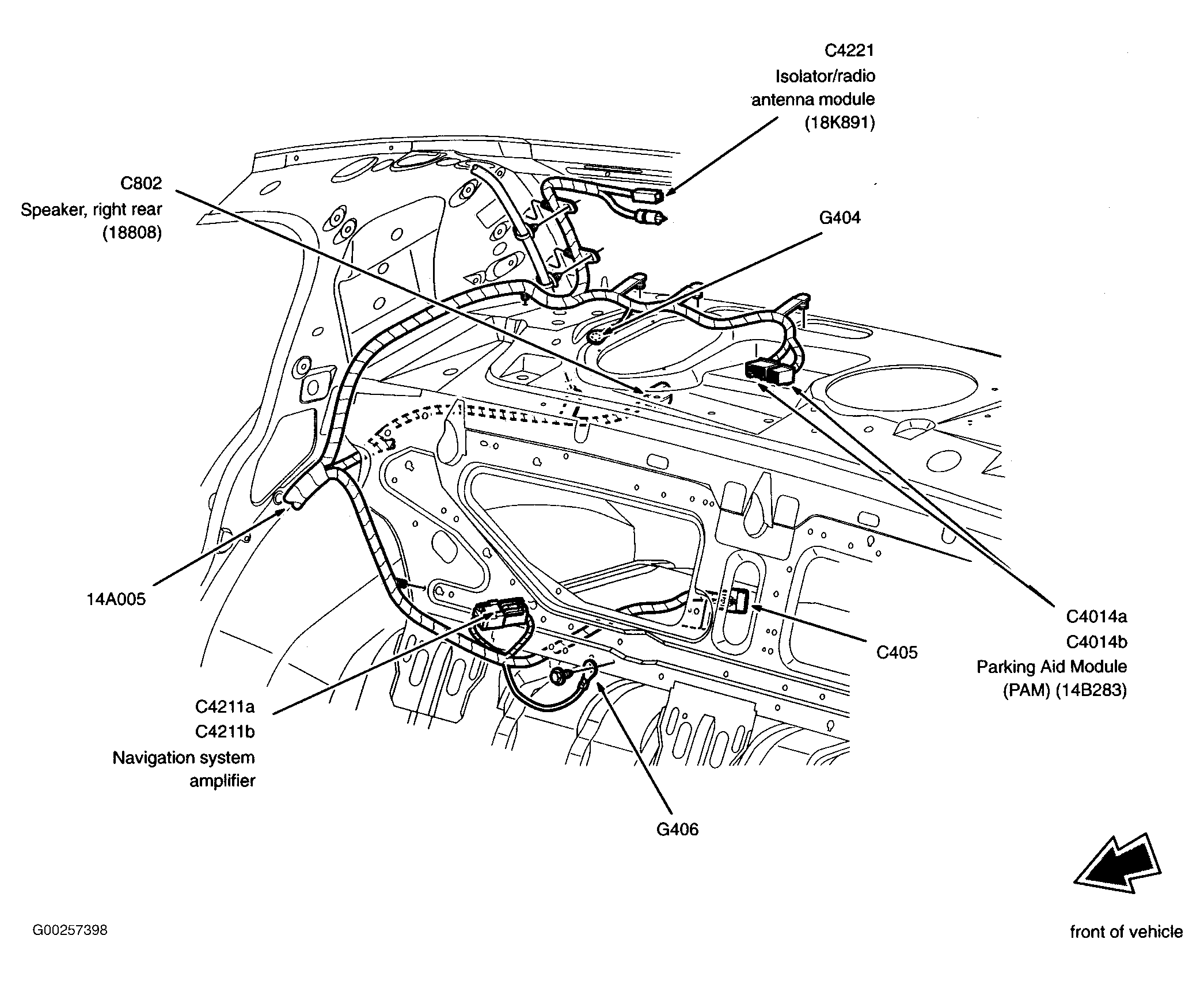

| Isolator/Radio Antenna Module | Center of trunk. See Figure . |
| Lighting Control Module | Under lower left side of dash. See Figure . |
| Navigation Module | Center of trunk. See Figure . |

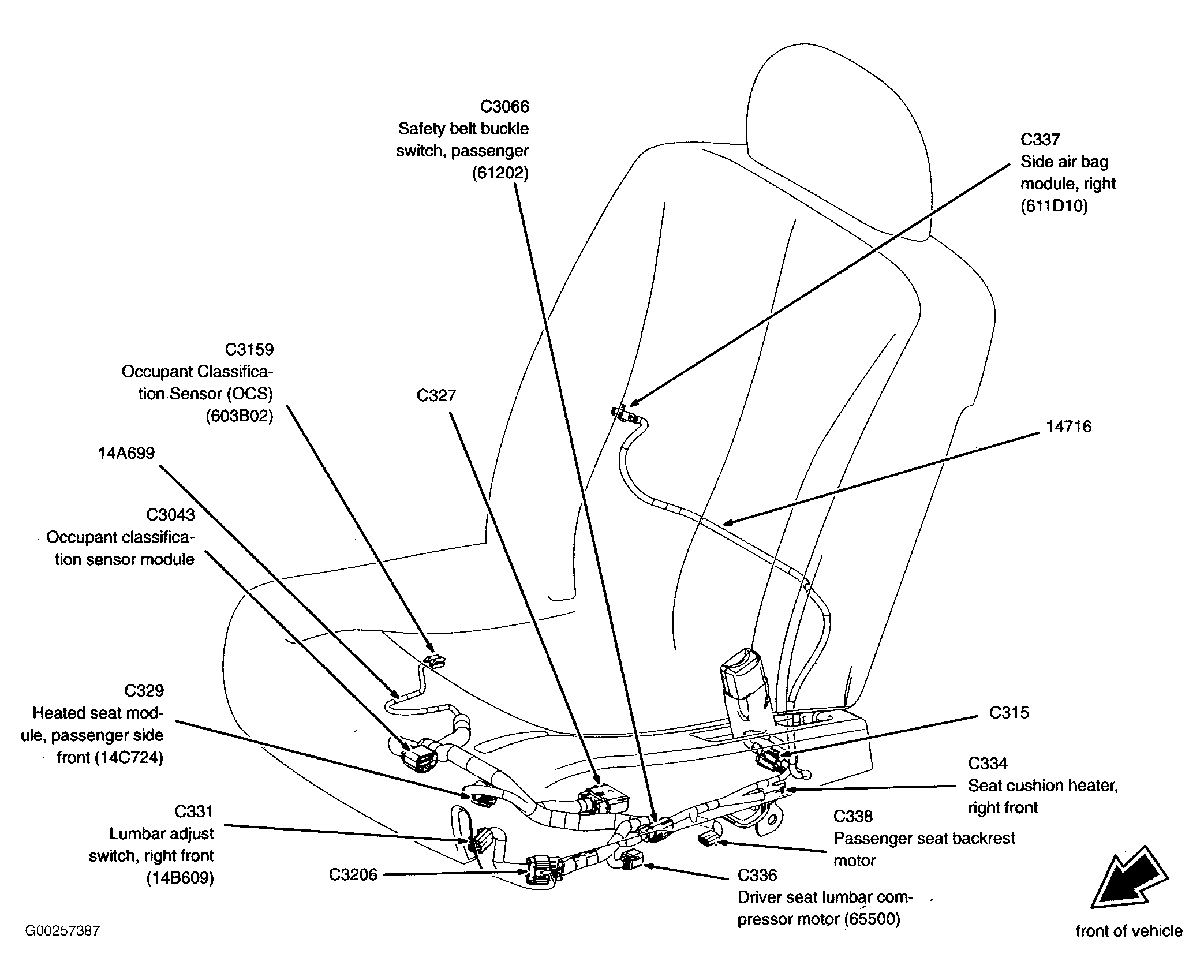

| Occupant Classification Sensor Module | In passenger's seat. See Figure . |
| Parking Aid Module | At right side of trunk. See Figure . |

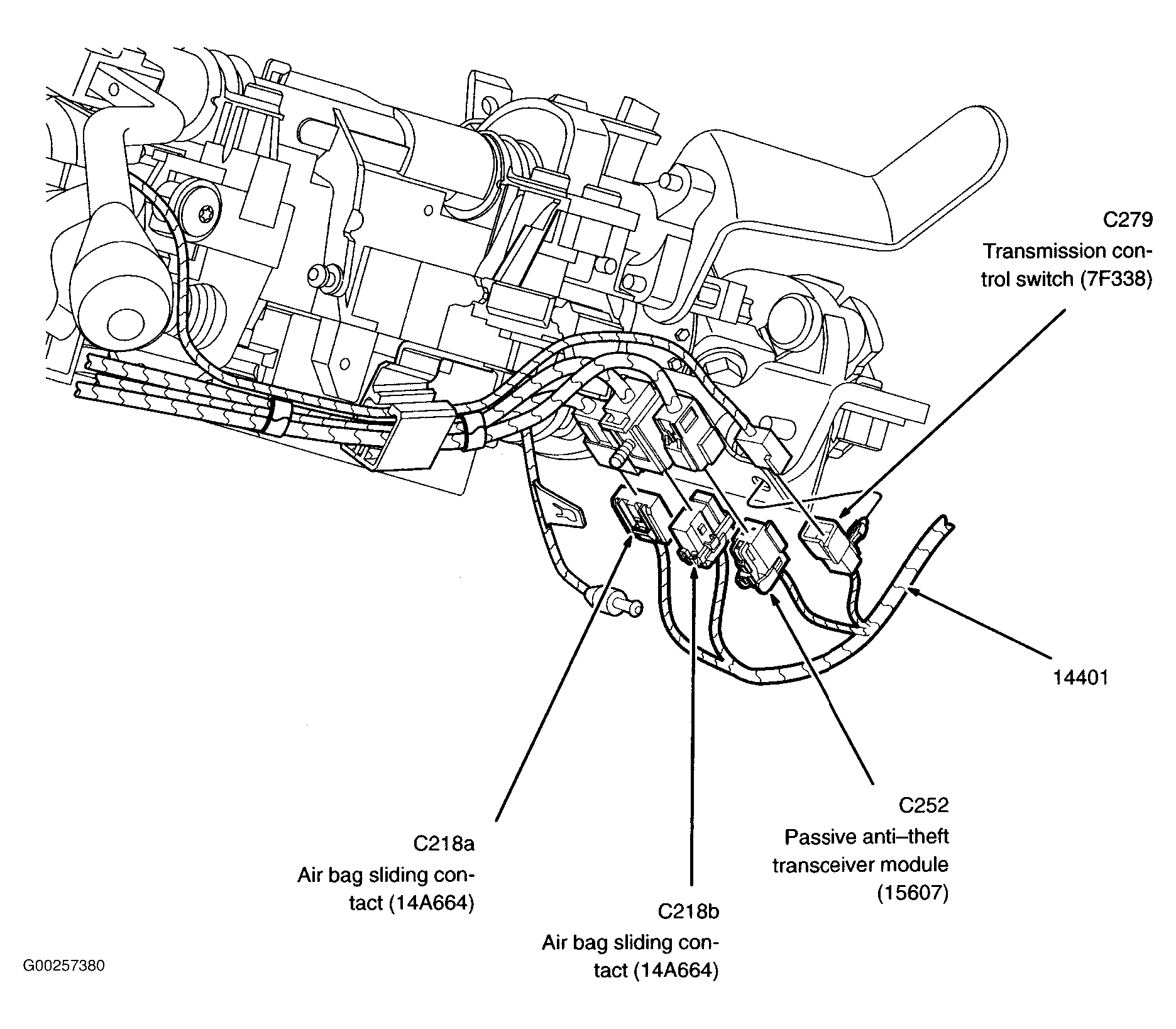

| Passive Anti-Theft Transceiver Module | At top of steering column. See Figure . |

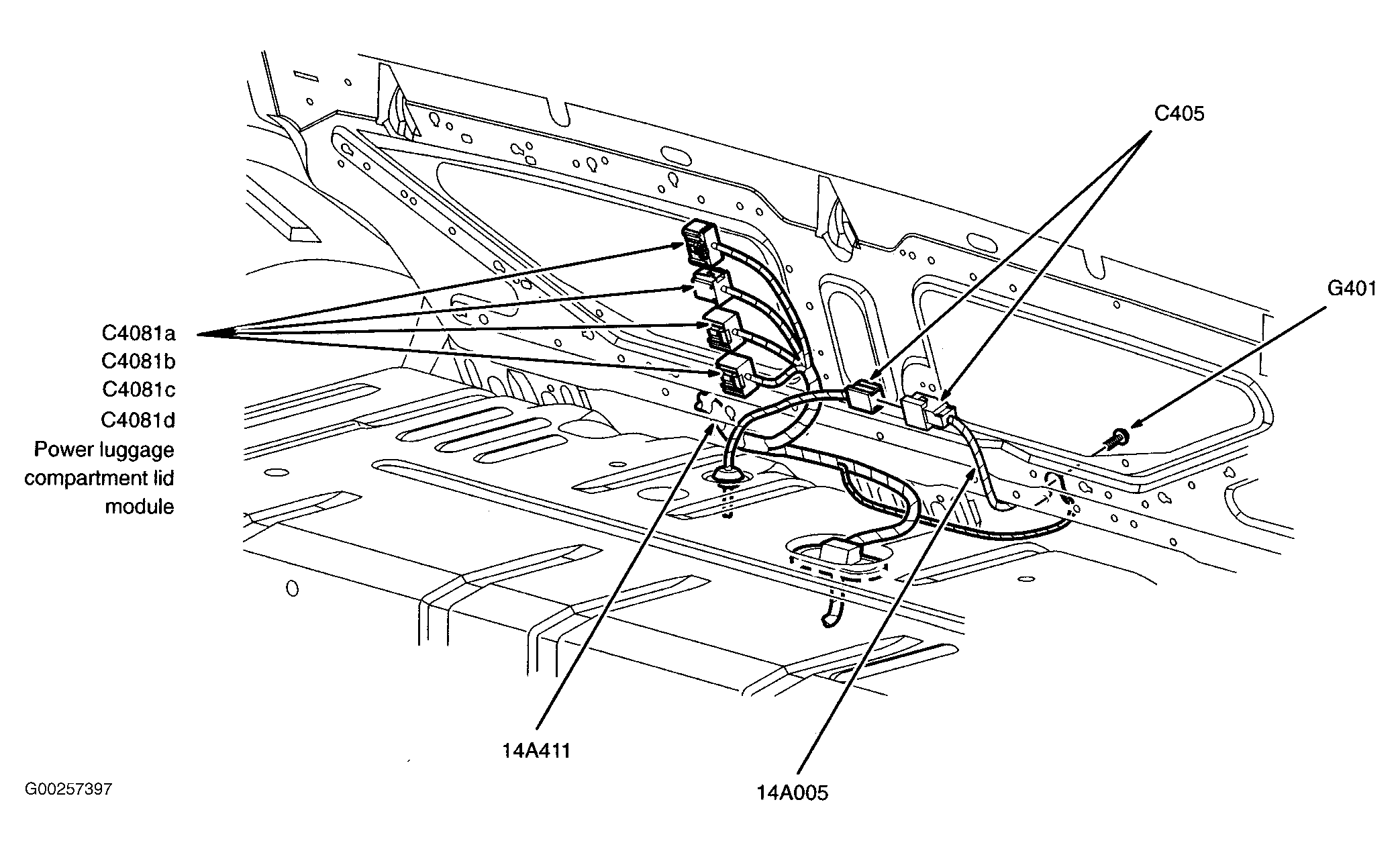

| Power Luggage Compartment Lid Module | Left side of trunk. See Figure . |

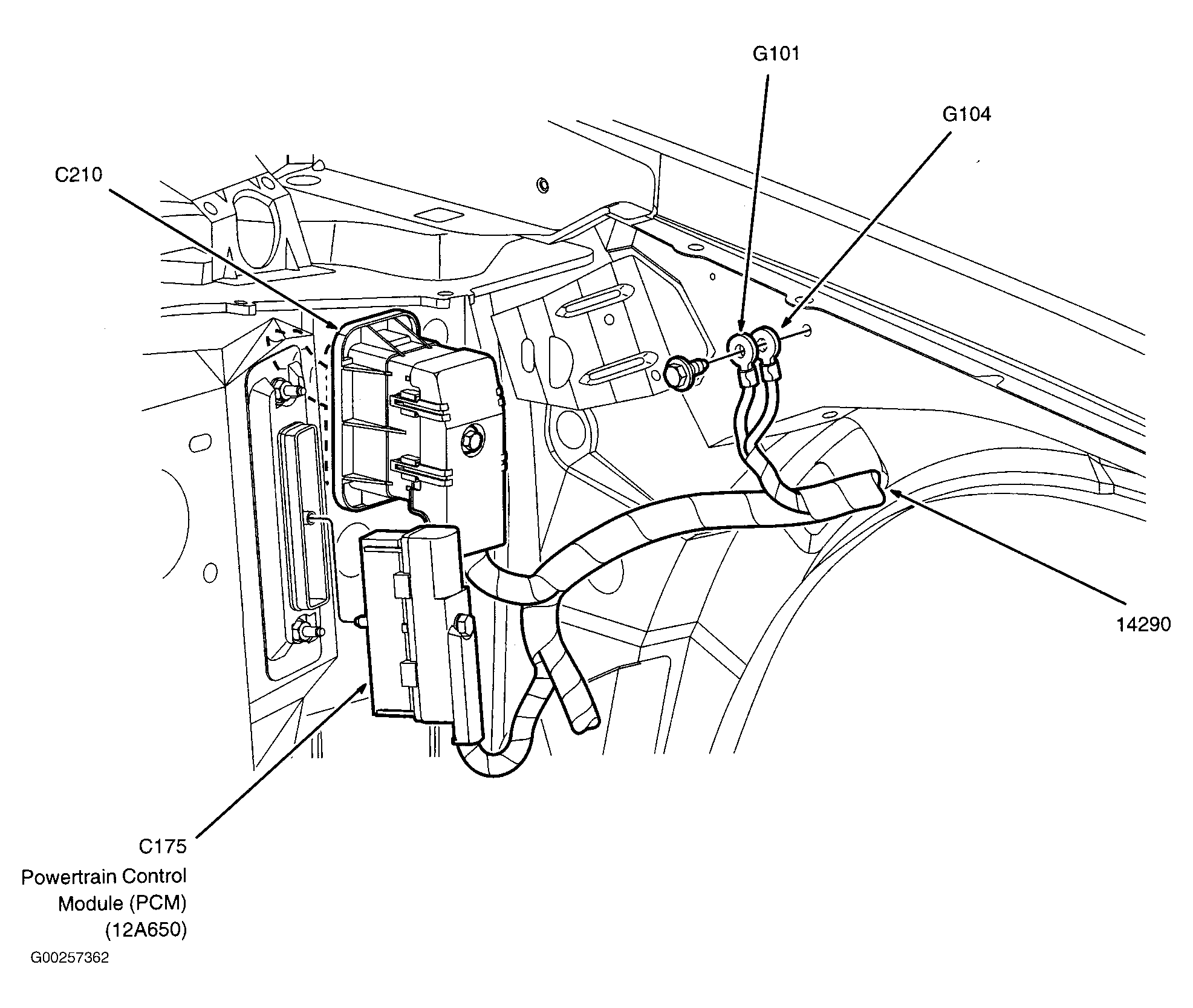

| Powertrain Control Module | Left rear side of engine compartment, on firewall. See Figure . |

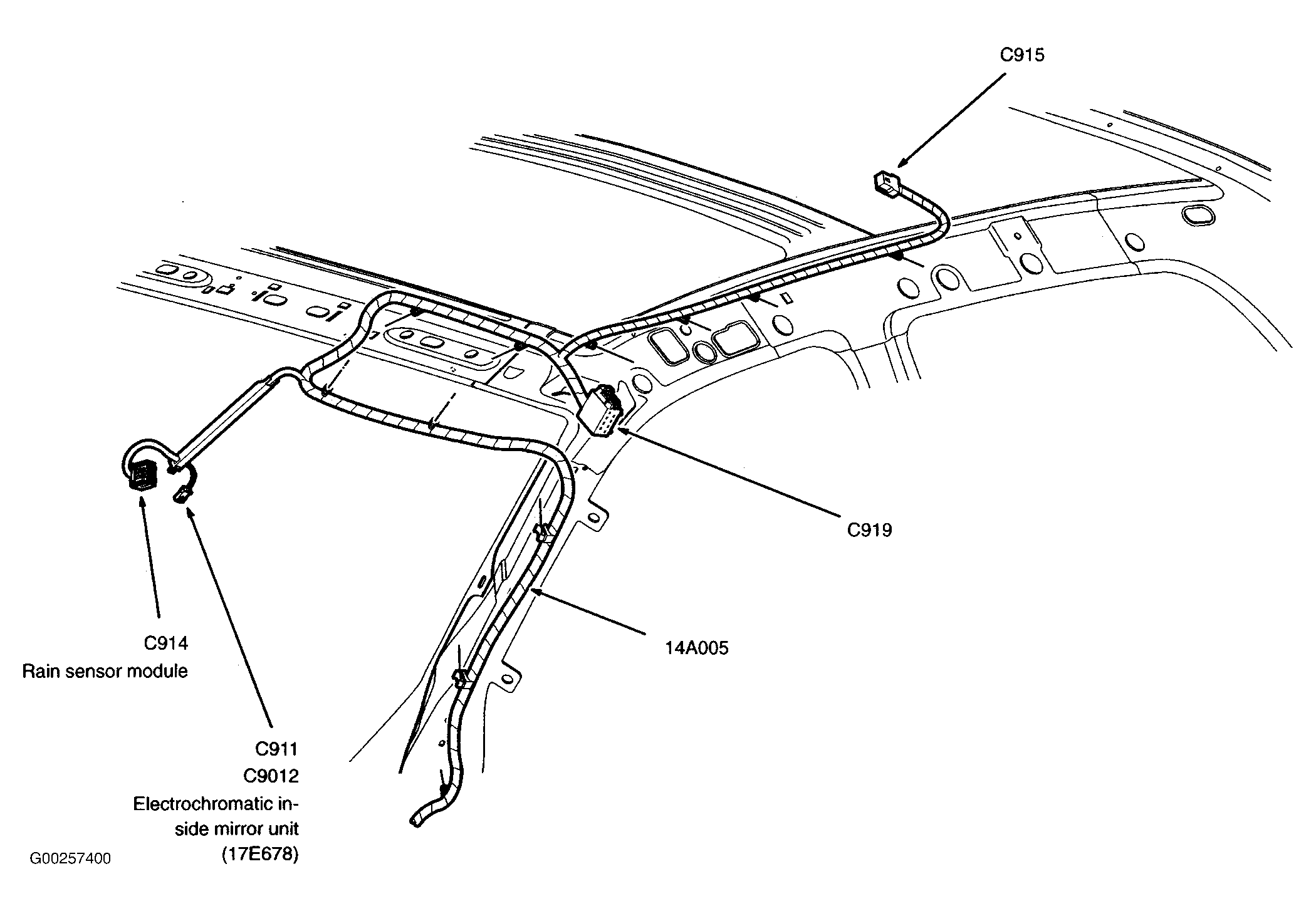

| Rain Sensor Module | Center front of roof. See Figure . |

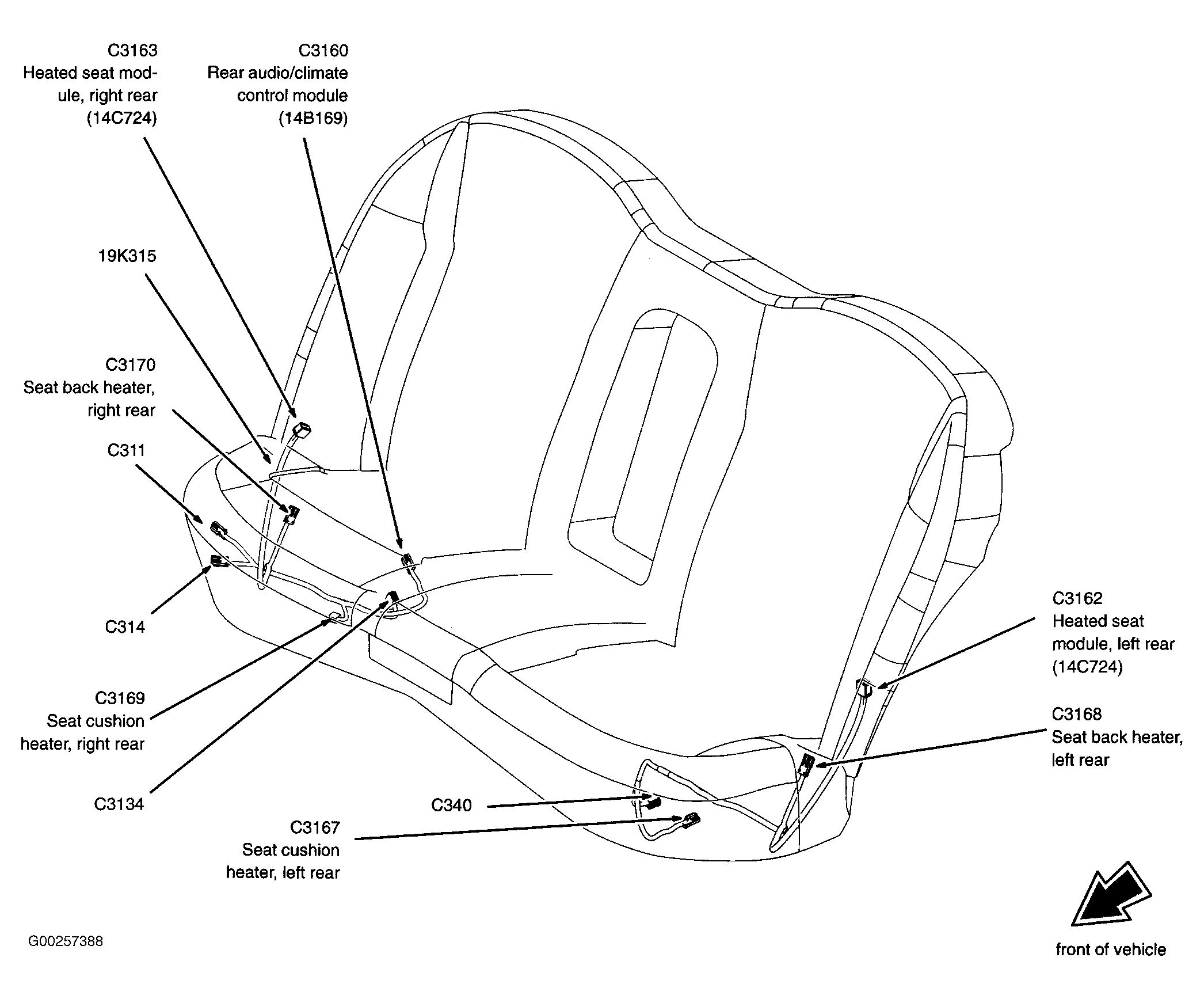

| Rear Audio/Climate Control Module | Under right rear seat. See Figure . |

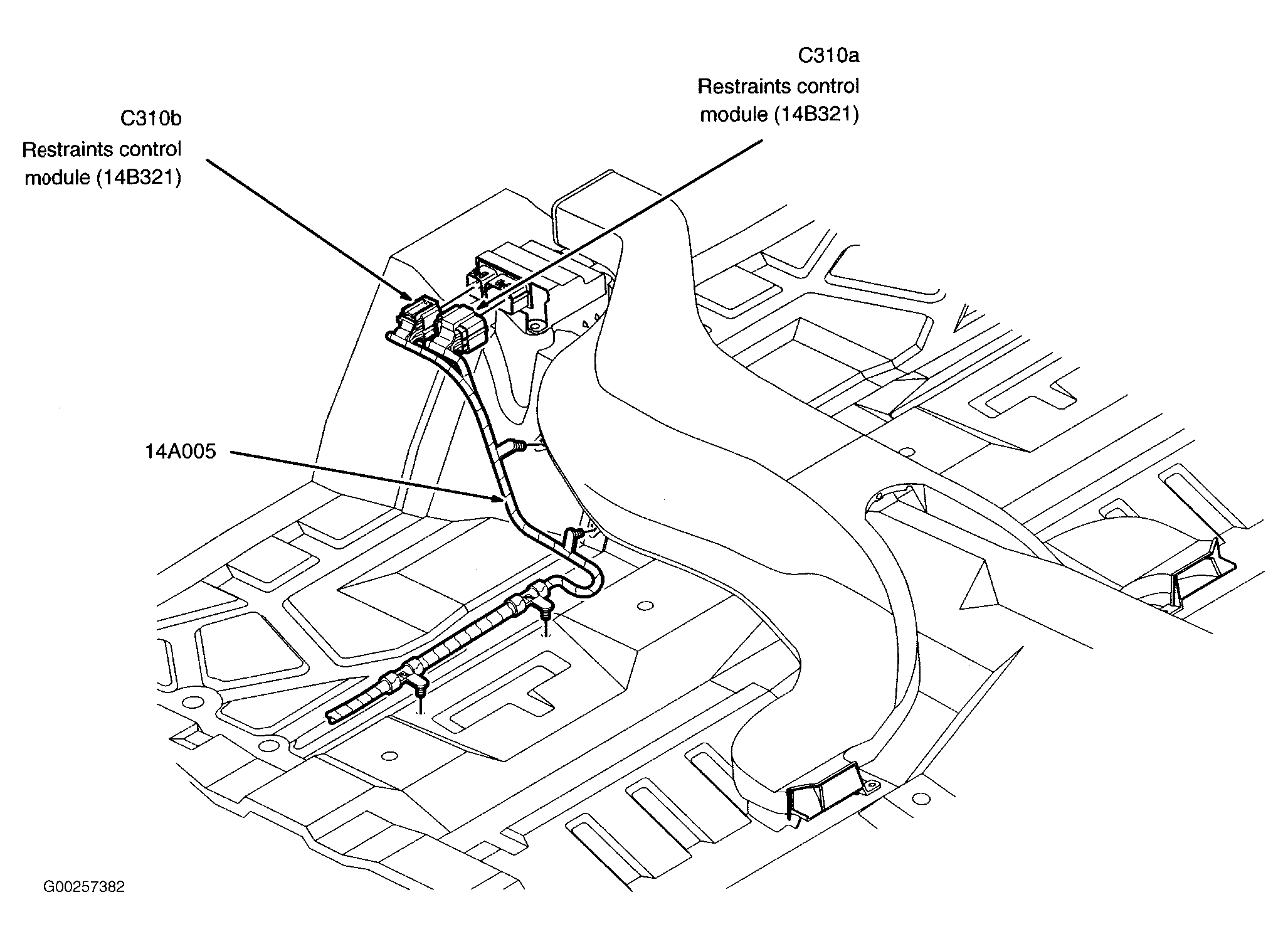

| Restraints Control Module | At center floorpan. See Figure . |

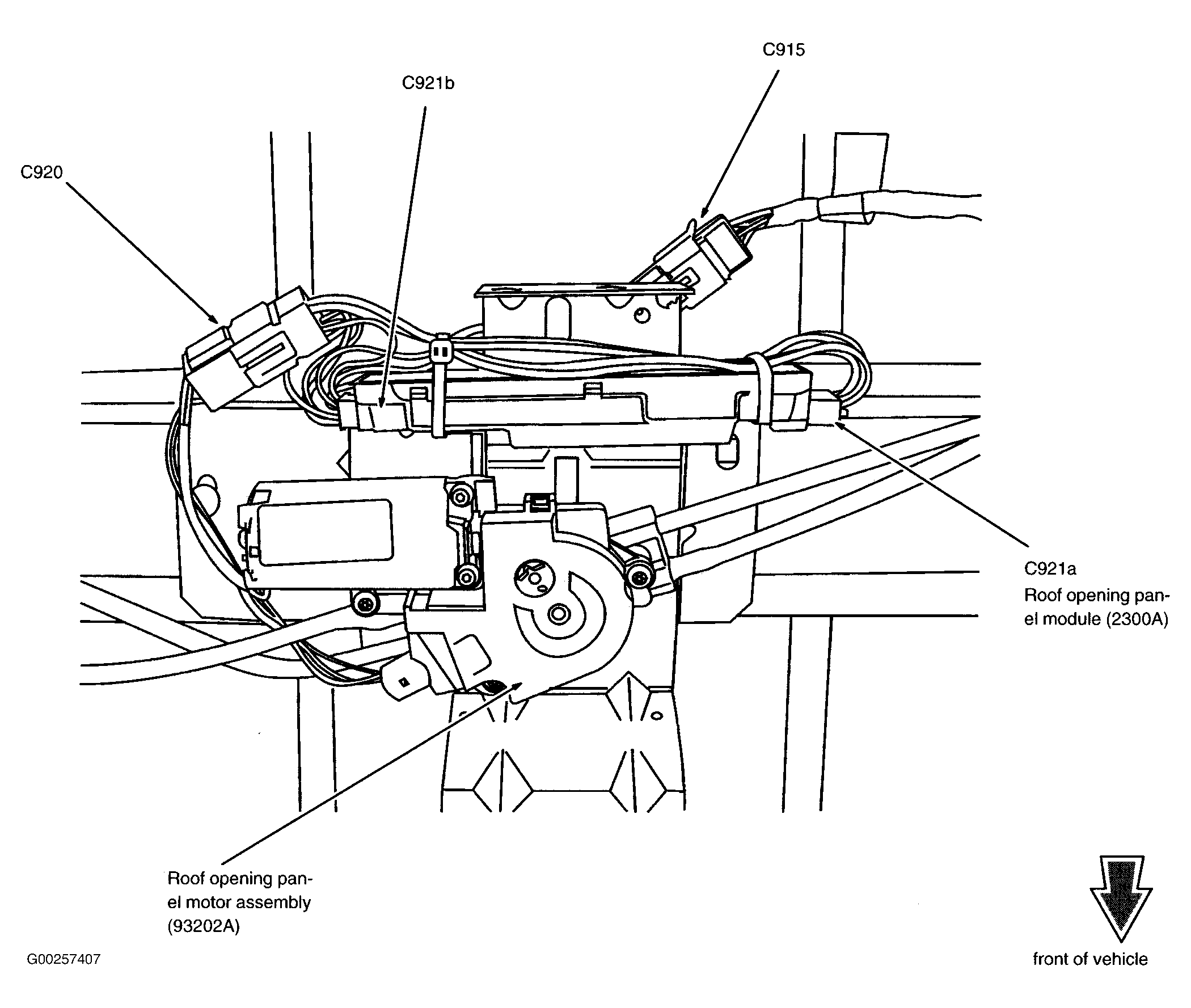

| Roof Opening Panel Module | At center front of roof. See Figure . |

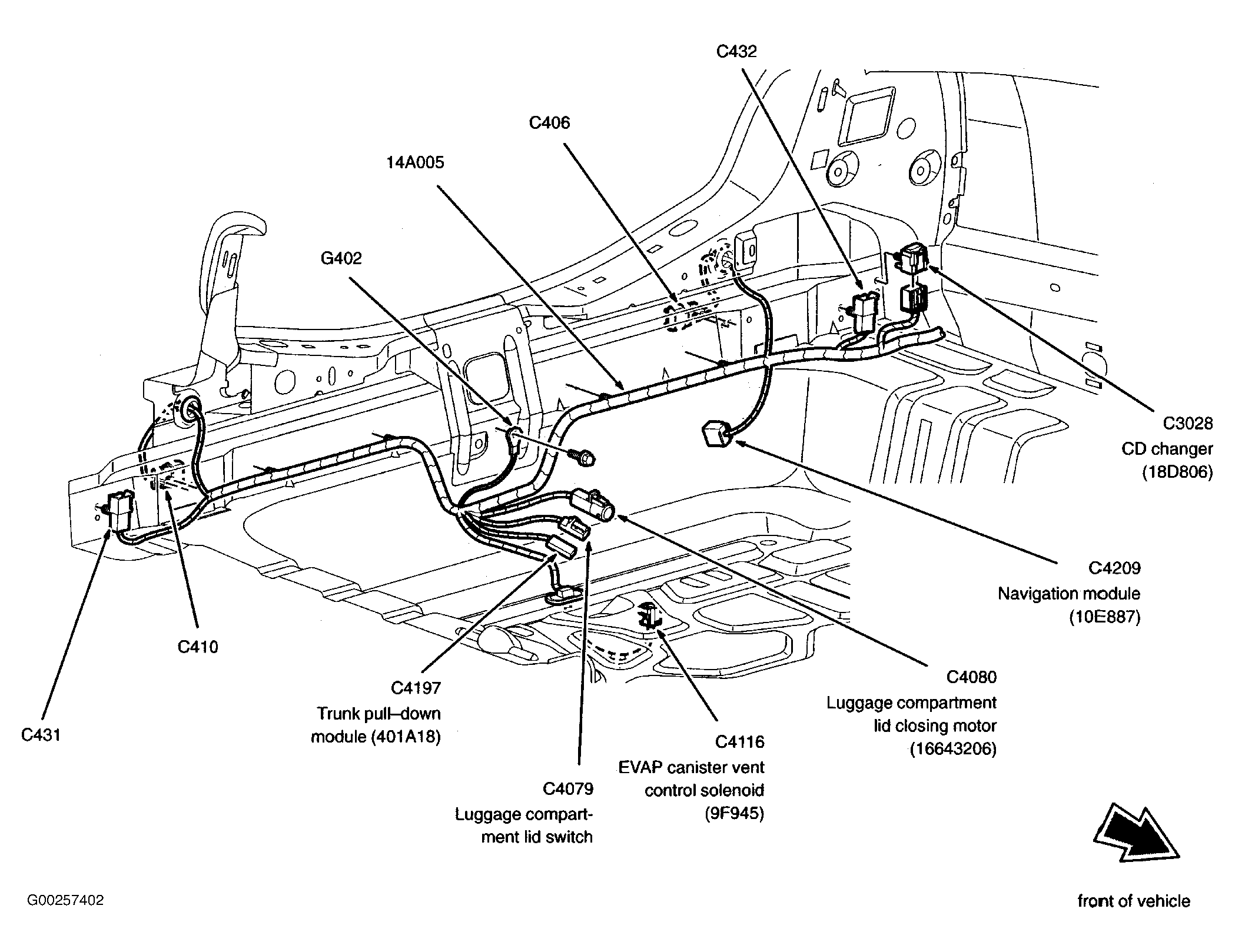

| Trunk Pull-Down Module | Center rear of trunk. See Figure . |
