Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07839964

Courtesy of FORD MOTOR CO.

Fig 2: Generator Connector End View (C102a)

G07839965

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102b)

G07839966

Courtesy of FORD MOTOR CO.

Fig 4: Oil Pressure Switch Connector End View (C103)

G07839967

Courtesy of FORD MOTOR CO.

Fig 5: Cylinder-Head Temperature Sensor Connector End View (C107)

G07839968

Courtesy of FORD MOTOR CO.

Fig 6: Knock Sensor Connector End View (C109)

G07839969

Courtesy of FORD MOTOR CO.

Fig 7: Inline Connector End View (C110)

G07839970

Courtesy of FORD MOTOR CO.

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

G07839971

Courtesy of FORD MOTOR CO.

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

G07839972

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

G07839973

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

G07839974

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 5 Connector End View (C115)

G07839975

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 6 Connector End View (C116)

G07839976

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 7 Connector End View (C117)

G07839977

Courtesy of FORD MOTOR CO.

Fig 15: Coil On Plug (COP) 8 Connector End View (C118)

G07839978

Courtesy of FORD MOTOR CO.

Fig 16: Power Steering Valve Solenoid Connector End View (C120)

G07839979

Courtesy of FORD MOTOR CO.

Fig 17: Speed Control Actuator Connector End View (C122)

G07839980

Courtesy of FORD MOTOR CO.

Fig 18: EVAP Canister Purge Valve Connector End View (C123)

G07839981

Courtesy of FORD MOTOR CO.

Fig 19: Brake Fluid Level Switch Connector End View (C124)

G07839982

Courtesy of FORD MOTOR CO.

Fig 20: Windshield Wiper Motor Connector End View (C125)

G07839983

Courtesy of FORD MOTOR CO.

Fig 21: Anti-Theft Hood Switch Connector End View (C127)

G07839984

Courtesy of FORD MOTOR CO.

Fig 22: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07839985

Courtesy of FORD MOTOR CO.

Fig 23: Low Charge Protection Switch Connector End View (C130)

G07839986

Courtesy of FORD MOTOR CO.

Fig 24: Horn Connector End View (C131)

G07839987

Courtesy of FORD MOTOR CO.

Fig 25: Ambient Air Temperature Sensor Connector End View (C132)

G07839988

Courtesy of FORD MOTOR CO.

Fig 26: Inline Connector End View (C133)

G07839989

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C134)

G07839990

Courtesy of FORD MOTOR CO.

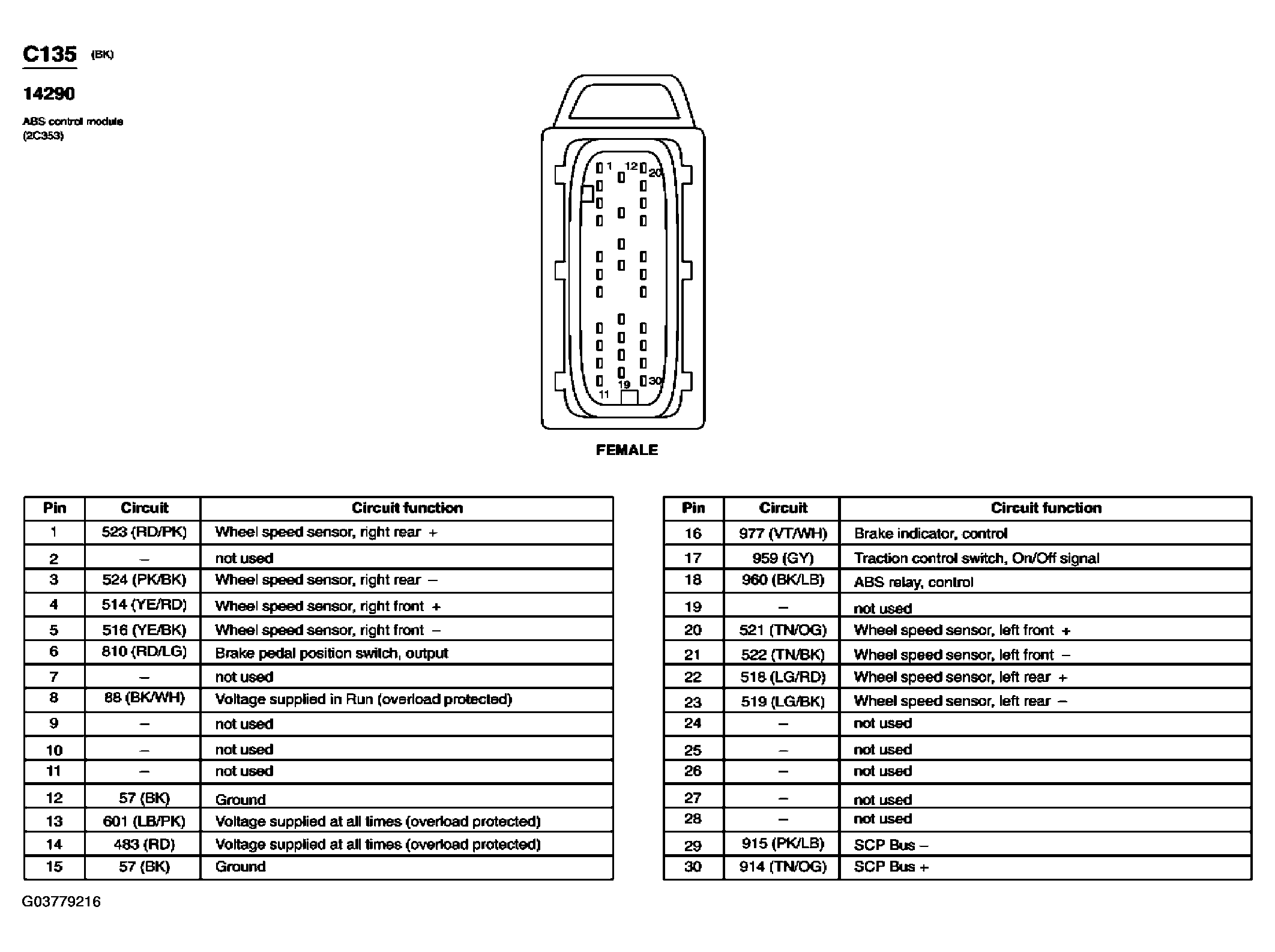

Fig 28: ABS Control Module Connector End View (C135)

G03779216

Courtesy of FORD MOTOR CO.

Fig 29: Windshield Washer Pump Motor Connector End View (C137)

G07839991

Courtesy of FORD MOTOR CO.

Fig 30: Washer Fluid Level Switch Connector End View (C138)

G07839992

Courtesy of FORD MOTOR CO.

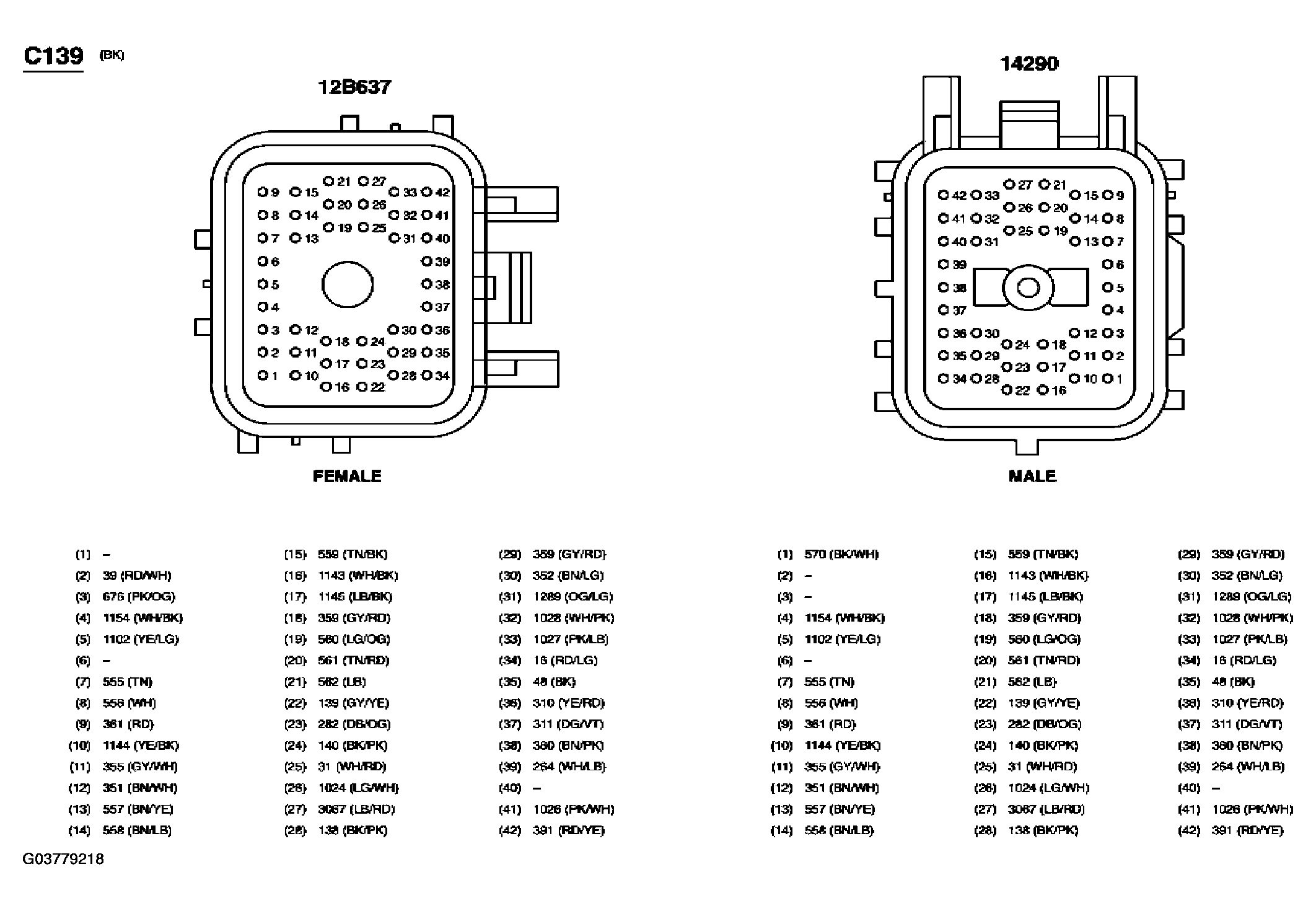

Fig 31: Inline Connector End View (C139)

G03779218

Courtesy of FORD MOTOR CO.

Fig 32: Inline Connector End View (C140)

G07839993

Courtesy of FORD MOTOR CO.

Fig 33: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07839994

Courtesy of FORD MOTOR CO.

Fig 34: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07839995

Courtesy of FORD MOTOR CO.

Fig 35: Inline Connector End View (C144)

G07839996

Courtesy of FORD MOTOR CO.

Fig 36: Inline Connector End View (C145)

G07839997

Courtesy of FORD MOTOR CO.

Fig 37: Inline Connector End View (C146)

G07839998

Courtesy of FORD MOTOR CO.

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G07839999

Courtesy of FORD MOTOR CO.

Fig 39: Side Lamp, Left Front Connector End View (C151)

G07840000

Courtesy of FORD MOTOR CO.

Fig 40: Wheel Speed Sensor, Right Front Connector End View (C160)

G07840001

Courtesy of FORD MOTOR CO.

Fig 41: Side Lamp, Right Front Connector End View (C161)

G07840002

Courtesy of FORD MOTOR CO.

Fig 42: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07840003

Courtesy of FORD MOTOR CO.

Fig 43: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07840004

Courtesy of FORD MOTOR CO.

Fig 44: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G03779222

Courtesy of FORD MOTOR CO.

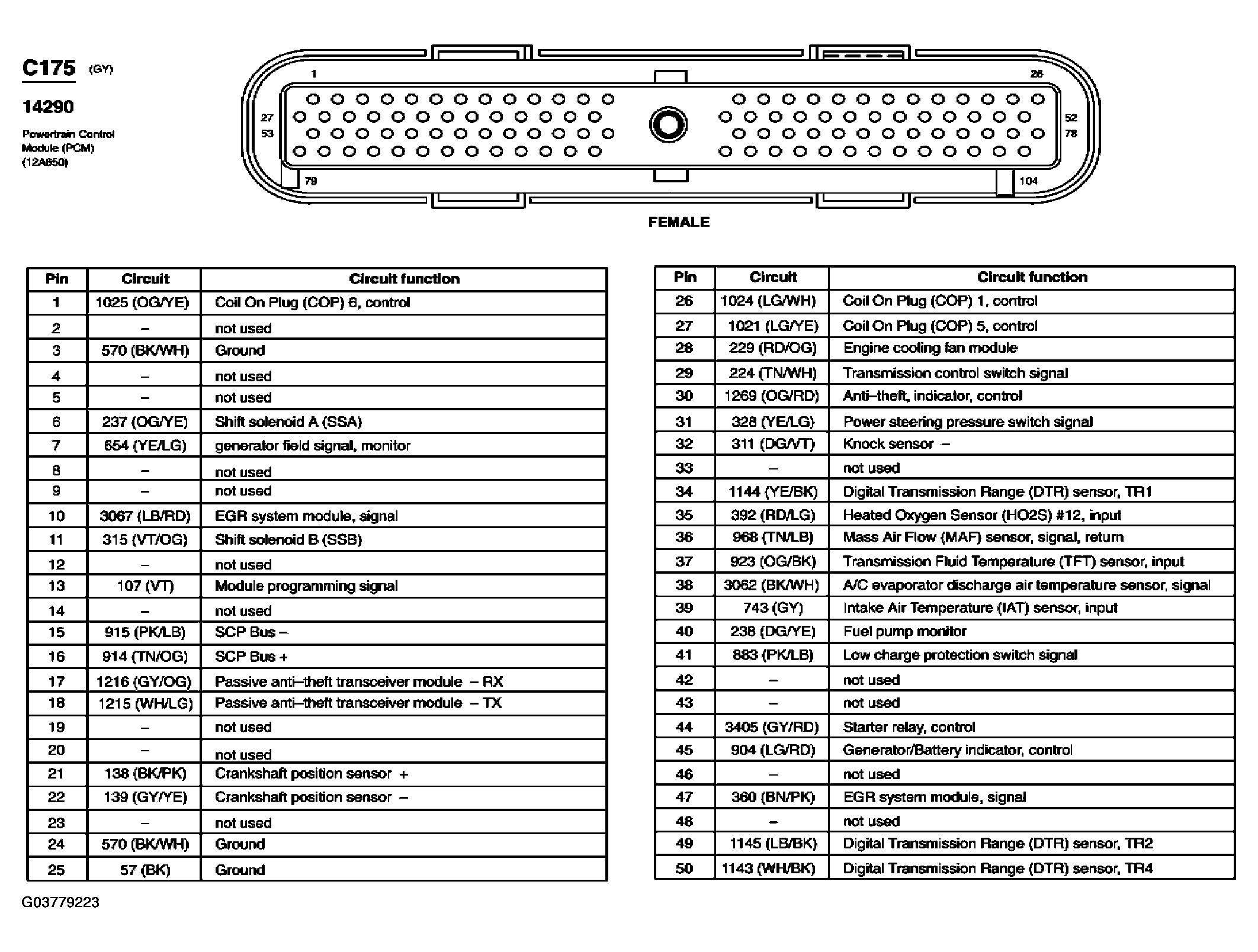

Fig 45: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03779223

Courtesy of FORD MOTOR CO.

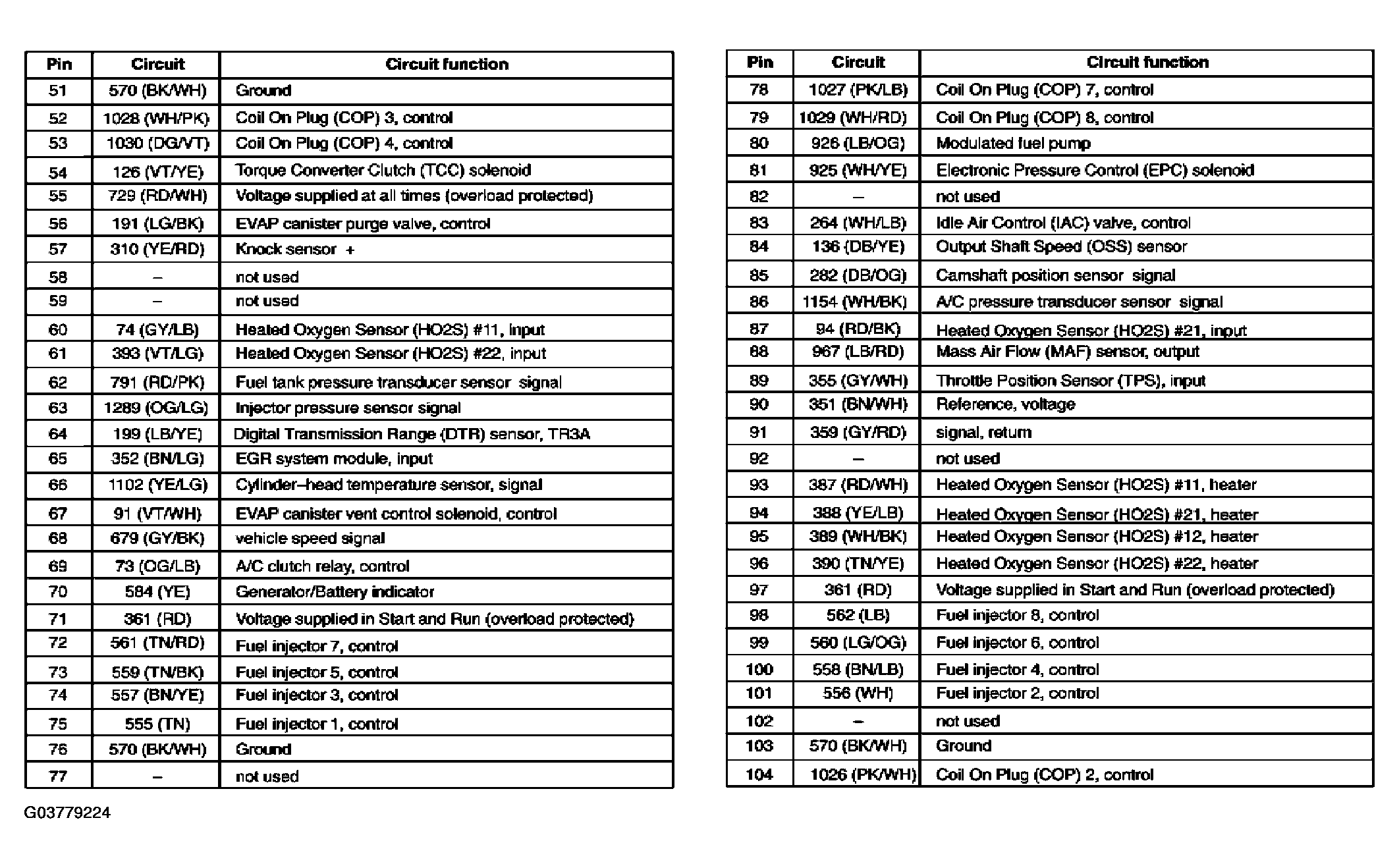

Fig 46: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03779224

Courtesy of FORD MOTOR CO.

Fig 47: Front Impact Severity Sensor Connector End View (C177)

G07840005

Courtesy of FORD MOTOR CO.

Fig 48: Camshaft Position Sensor Connector End View (C180)

G07840006

Courtesy of FORD MOTOR CO.

Fig 49: Fuel Injector 1 Connector End View (C181)

G07840007

Courtesy of FORD MOTOR CO.

Fig 50: Fuel Injector 2 Connector End View (C182)

G07840008

Courtesy of FORD MOTOR CO.

Fig 51: Fuel Injector 3 Connector End View (C183)

G07840009

Courtesy of FORD MOTOR CO.

Fig 52: Fuel Injector 4 Connector End View (C184)

G07840010

Courtesy of FORD MOTOR CO.

Fig 53: Fuel Injector 5 Connector End View (C185)

G07840011

Courtesy of FORD MOTOR CO.

Fig 54: Fuel Injector 6 Connector End View (C186)

G07840012

Courtesy of FORD MOTOR CO.

Fig 55: Fuel Injector 7 Connector End View (C187)

G07840013

Courtesy of FORD MOTOR CO.

Fig 56: Fuel Injector 8 Connector End View (C188)

G07840014

Courtesy of FORD MOTOR CO.

Fig 57: Inline Connector End View (C192)

G07840015

Courtesy of FORD MOTOR CO.

Fig 58: Starter Motor Connector End View (C197a)

G07840016

Courtesy of FORD MOTOR CO.

Fig 59: Starter Motor Connector End View (C197b)

G07840017

Courtesy of FORD MOTOR CO.

Fig 60: Multifunction Switch Connector End View (C202a)

G07840018

Courtesy of FORD MOTOR CO.

Fig 61: Multifunction Switch Connector End View (C202b)

G07840019

Courtesy of FORD MOTOR CO.

Fig 62: Multifunction Switch Connector End View (C202c)

G07840020

Courtesy of FORD MOTOR CO.

Fig 63: Main Light Switch Connector End View (C205a)

G07840021

Courtesy of FORD MOTOR CO.

Fig 64: Main Light Switch Connector End View (C205b)

G03779229

Courtesy of FORD MOTOR CO.

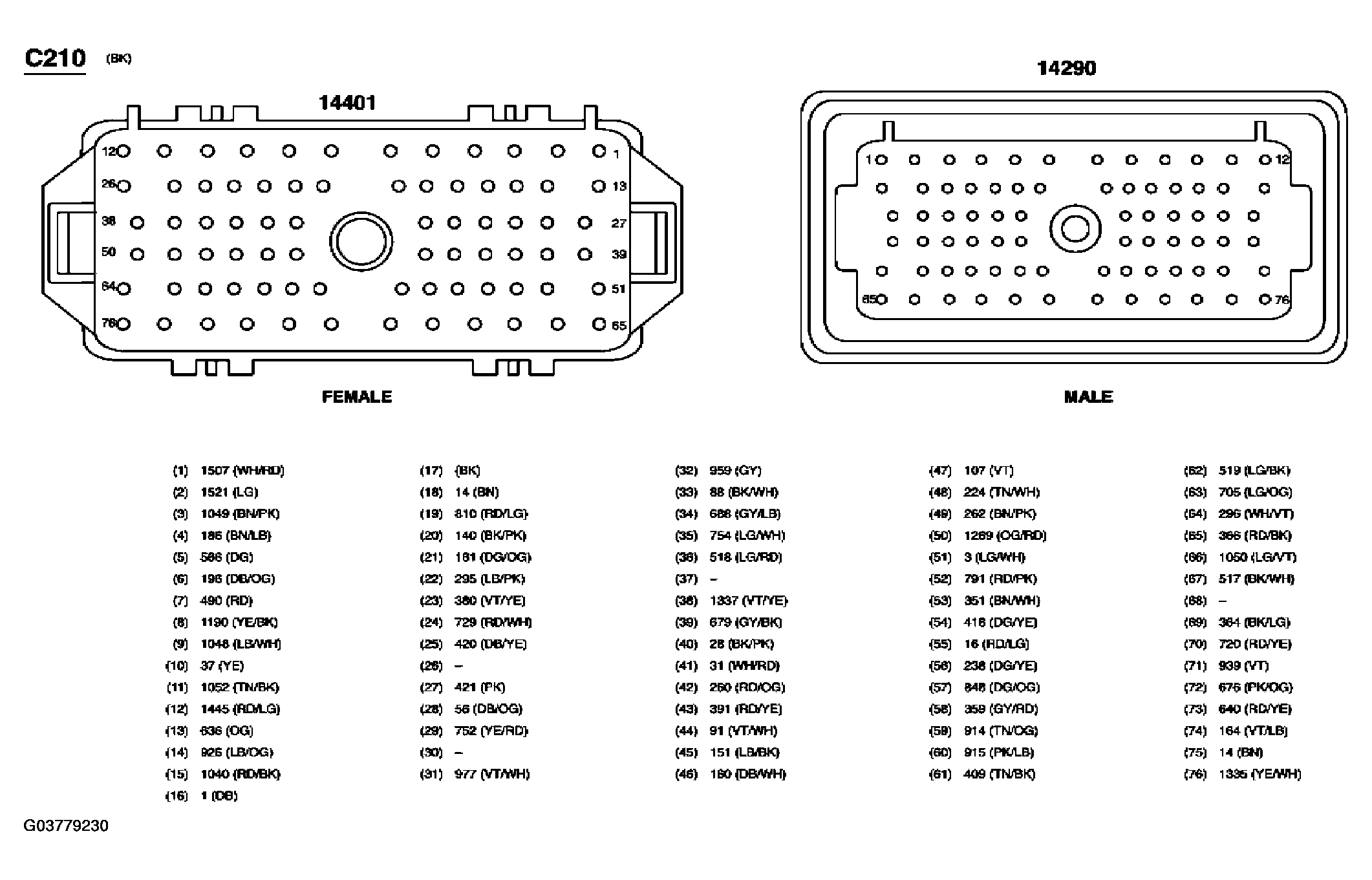

Fig 65: Inline Connector End View (C210)

G03779230

Courtesy of FORD MOTOR CO.

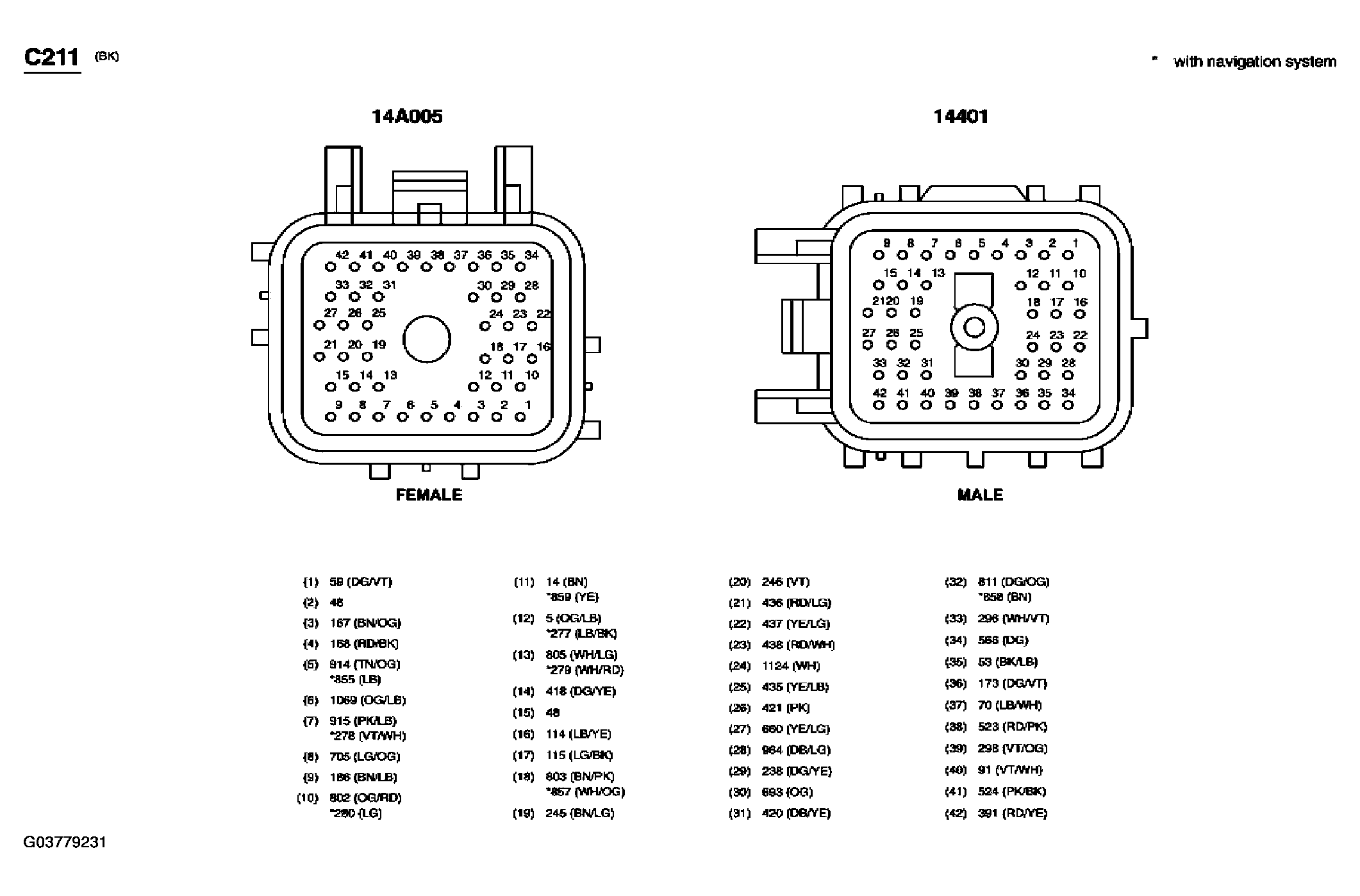

Fig 66: Inline Connector End View (C211)

G03779231

Courtesy of FORD MOTOR CO.

Fig 67: Inline Connector End View (C213)

G07840022

Courtesy of FORD MOTOR CO.

Fig 68: Inline Connector End View (C214)

G07840023

Courtesy of FORD MOTOR CO.

Fig 69: Inline Connector End View (C215)

G07840024

Courtesy of FORD MOTOR CO.

Fig 70: Air Bag Sliding Contact Connector End View (C218a)

G07840025

Courtesy of FORD MOTOR CO.

Fig 71: Air Bag Sliding Contact Connector End View (C218b)

G07840026

Courtesy of FORD MOTOR CO.

Fig 72: Inline Connector End View (C219)

G07840027

Courtesy of FORD MOTOR CO.

Fig 73: Instrument Cluster Connector End View (C220a)

G07840028

Courtesy of FORD MOTOR CO.

Fig 74: Instrument Cluster Connector End View (C220b)

G07840029

Courtesy of FORD MOTOR CO.

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G07840030

Courtesy of FORD MOTOR CO.

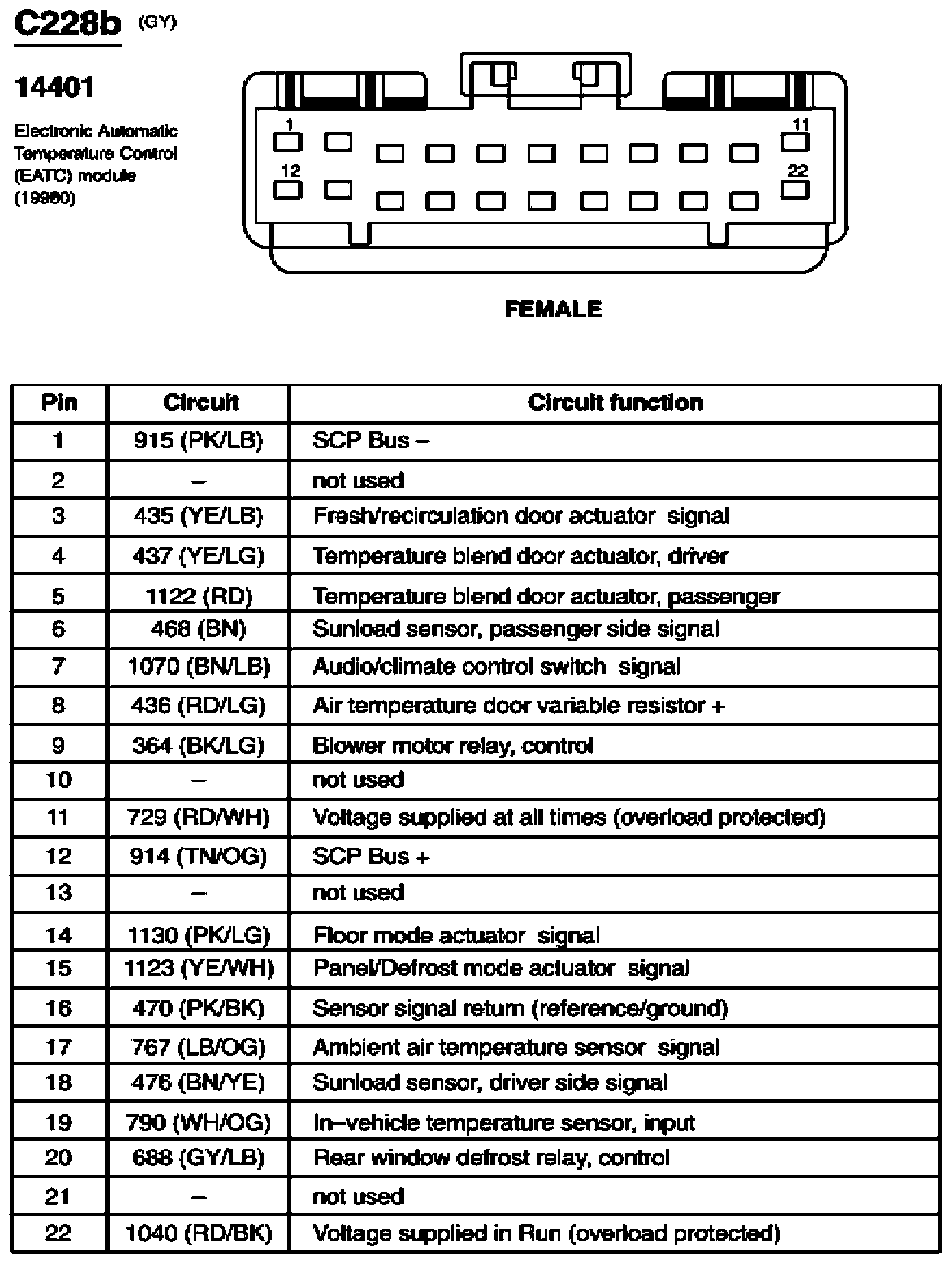

Fig 76: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G07840031

Courtesy of FORD MOTOR CO.

Fig 77: In-Vehicle Temperature Sensor Connector End View (C233)

G07840032

Courtesy of FORD MOTOR CO.

Fig 78: Floor Mode Actuator Connector End View (C234)

G07840033

Courtesy of FORD MOTOR CO.

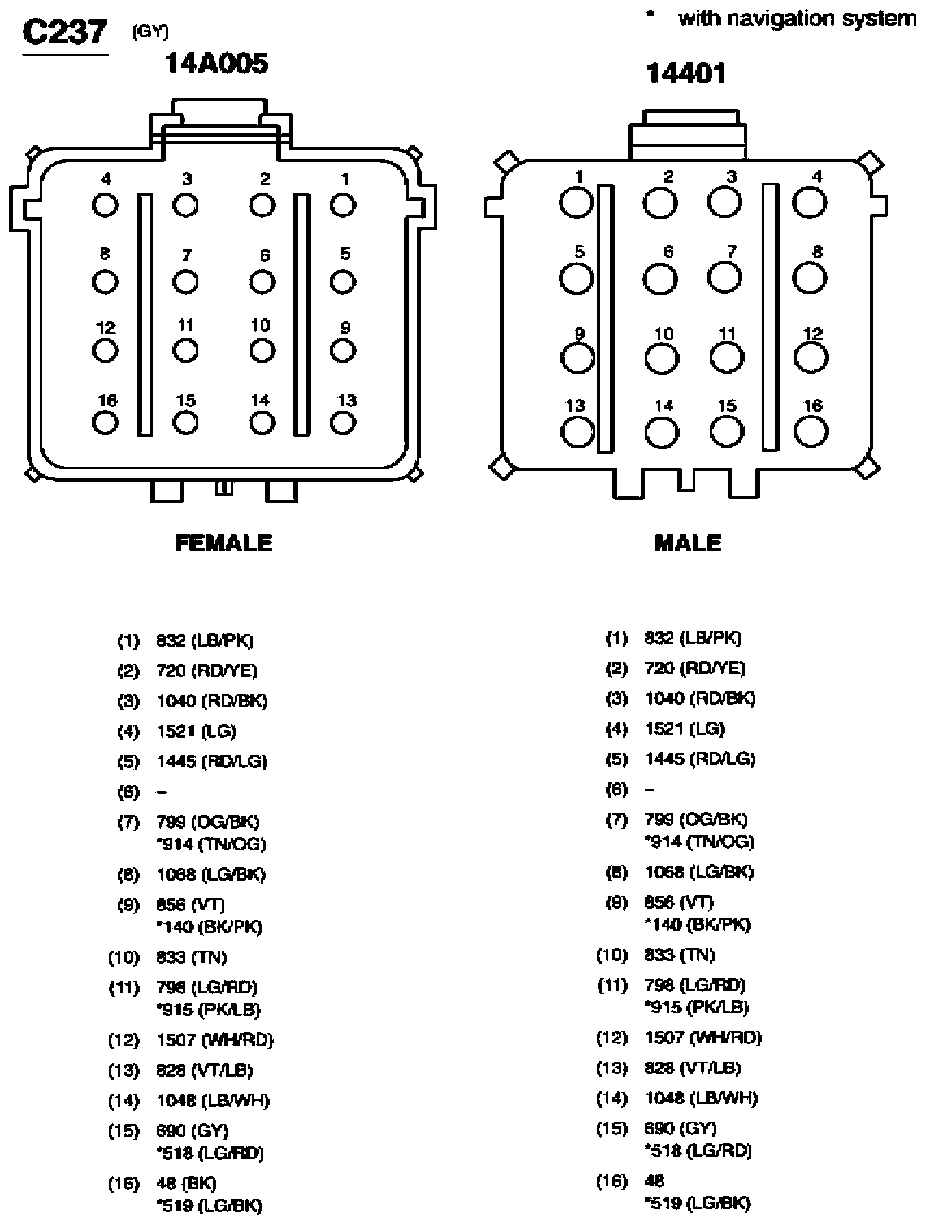

Fig 79: Inline Connector End View (C237)

G07840034

Courtesy of FORD MOTOR CO.

Fig 80: Inline Connector End View (C238)

G07840035

Courtesy of FORD MOTOR CO.

Fig 81: Inline Connector End View (C248)

G07840036

Courtesy of FORD MOTOR CO.

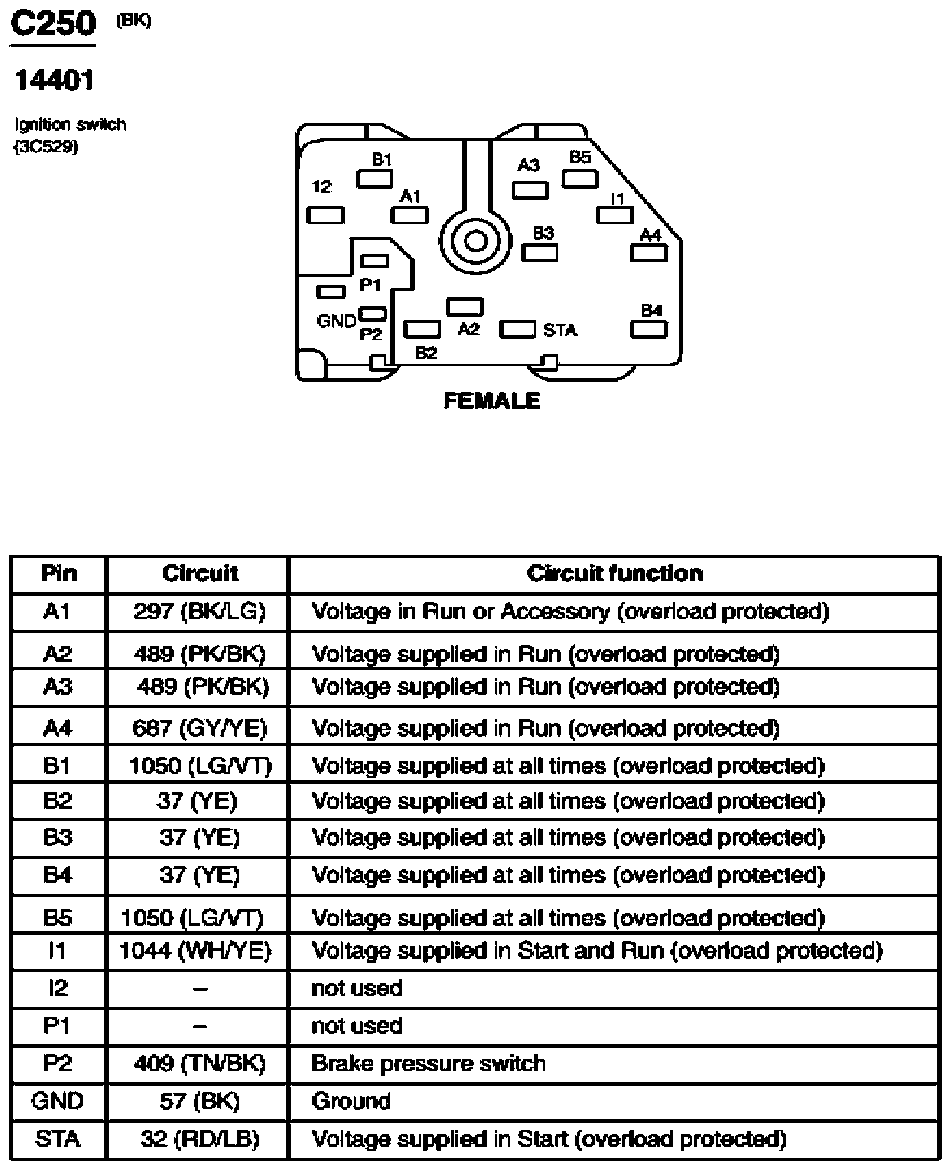

Fig 82: Ignition Switch Connector End View (C250)

G07840037

Courtesy of FORD MOTOR CO.

Fig 83: Data Link Connector (DLC) Connector End View (C251)

G07840038

Courtesy of FORD MOTOR CO.

Fig 84: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07840039

Courtesy of FORD MOTOR CO.

Fig 85: Message Center Switch Connector End View (C253)

G07840040

Courtesy of FORD MOTOR CO.

Fig 86: Glove Box Lamp Connector End View (C254)

G07840041

Courtesy of FORD MOTOR CO.

Fig 87: Passenger Air Bag Module Connector End View (C256)

G07840042

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C264)

G07840043

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C265)

G07840044

Courtesy of FORD MOTOR CO.

Fig 90: Inline Connector End View (C268)

G07840045

Courtesy of FORD MOTOR CO.

Fig 91: Inline Connector End View (C275)

G07840046

Courtesy of FORD MOTOR CO.

Fig 92: Deactivator Switch Connector End View (C277)

G07840047

Courtesy of FORD MOTOR CO.

Fig 93: Brake Pedal Position Switch Connector End View (C278)

G07840048

Courtesy of FORD MOTOR CO.

Fig 94: Transmission Control Switch Connector End View (C279)

G07840049

Courtesy of FORD MOTOR CO.

Fig 95: Fresh/Recirculation Door Actuator Connector End View (C280)

G07840050

Courtesy of FORD MOTOR CO.

Fig 96: Autolamp Sensor Connector End View (C287)

G07840051

Courtesy of FORD MOTOR CO.

Fig 97: Fresh/Recirculation Door Actuator Connector End View (C289)

G07840052

Courtesy of FORD MOTOR CO.

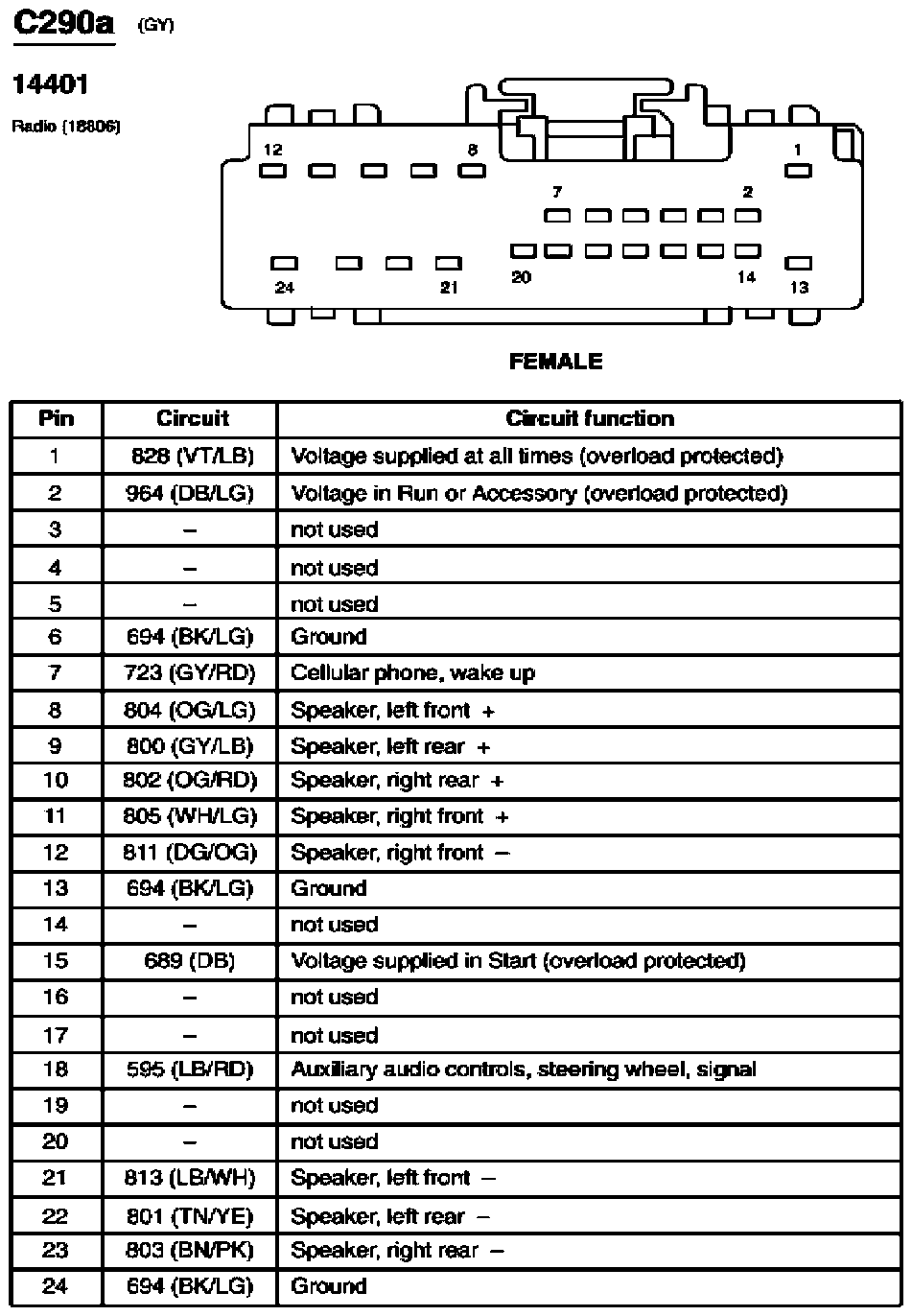

Fig 98: Radio Connector End View (C290a)

G07840053

Courtesy of FORD MOTOR CO.

Fig 99: Radio Connector End View (C290b)

G07840054

Courtesy of FORD MOTOR CO.

Fig 100: Radio Connector End View (C290c)

G07840055

Courtesy of FORD MOTOR CO.

Fig 101: Radio Connector End View (C290d)

G07840056

Courtesy of FORD MOTOR CO.

Fig 102: Inline Connector End View (C291)

G07840057

Courtesy of FORD MOTOR CO.

Fig 103: Inline Connector End View (C298)

G07840058

Courtesy of FORD MOTOR CO.

Fig 104: Inline Connector End View (C299)

G07840059

Courtesy of FORD MOTOR CO.

Fig 105: High Mounted Stoplamp Connector End View (C302)

G07840060

Courtesy of FORD MOTOR CO.

Fig 106: Side Air Bag Sensor, Right Connector End View (C304)

G07840061

Courtesy of FORD MOTOR CO.

Fig 107: Side Air Bag Sensor, Left Connector End View (C305)

G07840062

Courtesy of FORD MOTOR CO.

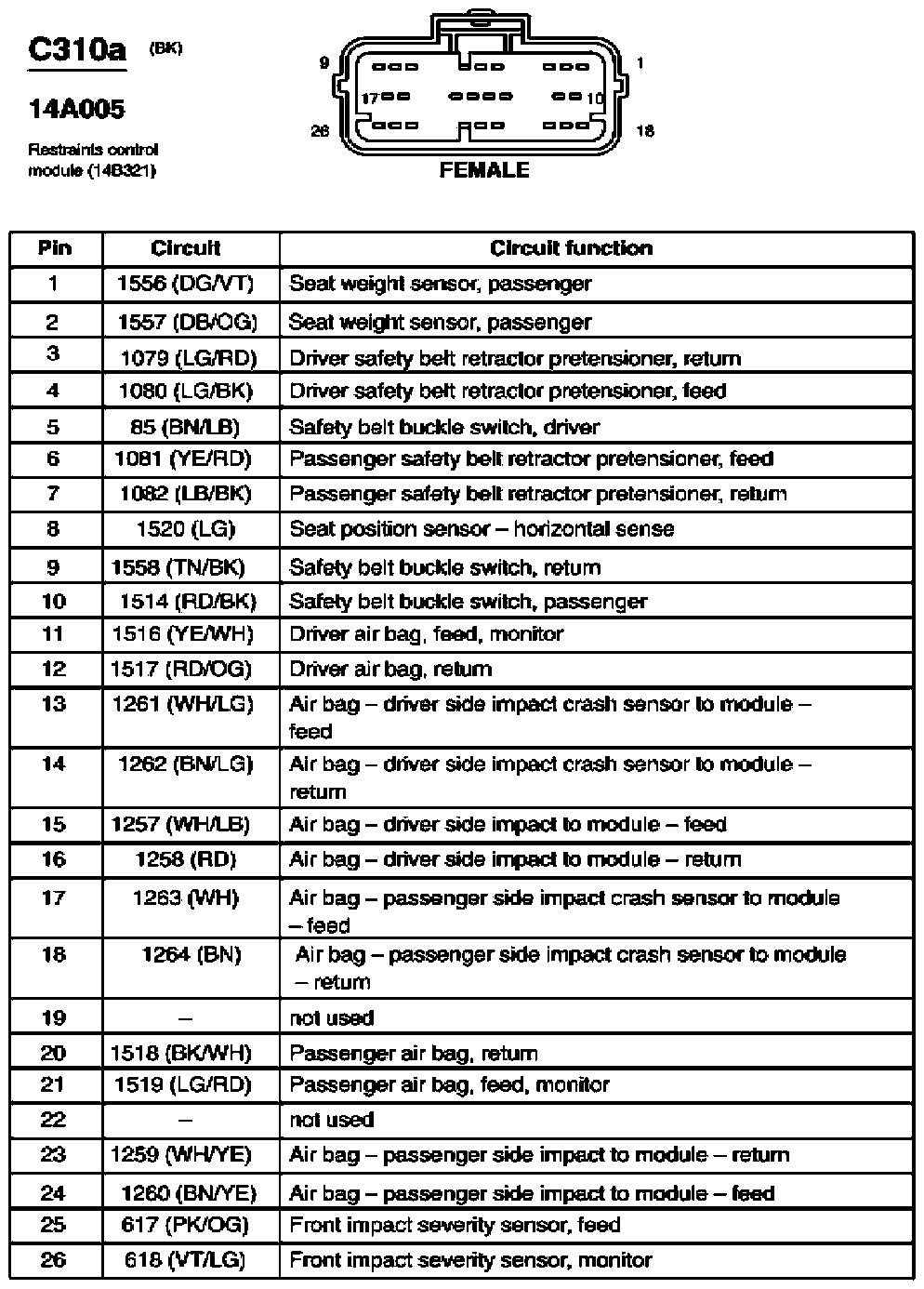

Fig 108: Restraints Control Module Connector End View (C310a)

G07840063

Courtesy of FORD MOTOR CO.

Fig 109: Restraints Control Module Connector End View (C310b)

G07840064

Courtesy of FORD MOTOR CO.

Fig 110: Inline Connector End View (C311)

G07840065

Courtesy of FORD MOTOR CO.

Fig 111: Inline Connector End View (C312)

G07840066

Courtesy of FORD MOTOR CO.

Fig 112: Inline Connector End View (C314)

G07840067

Courtesy of FORD MOTOR CO.

Fig 113: Inline Connector End View (C315)

G07840068

Courtesy of FORD MOTOR CO.

Fig 114: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

G07840069

Courtesy of FORD MOTOR CO.

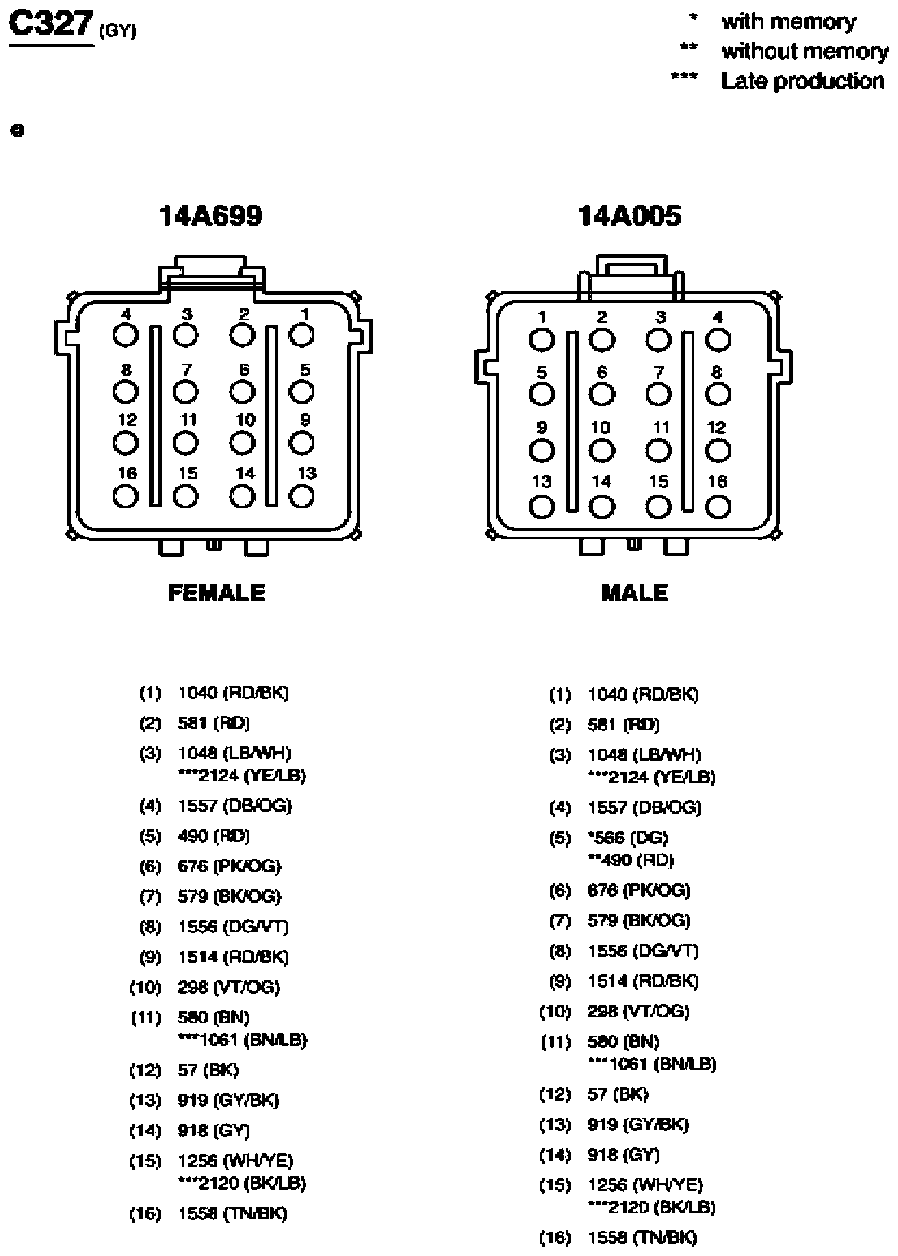

Fig 115: Inline Connector End View (C327)

G07840070

Courtesy of FORD MOTOR CO.

Fig 116: Inline Connector End View (C328)

G07840071

Courtesy of FORD MOTOR CO.

Fig 117: Heated Seat Module, Passenger Side Front Connector End View (C329)

G07840072

Courtesy of FORD MOTOR CO.

Fig 118: Lumbar Adjust Switch, Right Front Connector End View (C331)

G07840073

Courtesy of FORD MOTOR CO.

Fig 119: Seat Cushion Heater, Right Front Connector End View (C334)

G07840074

Courtesy of FORD MOTOR CO.

Fig 120: Passenger Seat Lumbar Compressor Motor Connector End View (C336)

G07840075

Courtesy of FORD MOTOR CO.

Fig 121: Side Air Bag Module, Right Connector End View (C337)

G07840076

Courtesy of FORD MOTOR CO.

Fig 122: Passenger Seat Backrest Motor Connector End View (C338)

G07840077

Courtesy of FORD MOTOR CO.

Fig 123: Inline Connector End View (C339)

G07840078

Courtesy of FORD MOTOR CO.

Fig 124: Inline Connector End View (C340)

G07840079

Courtesy of FORD MOTOR CO.

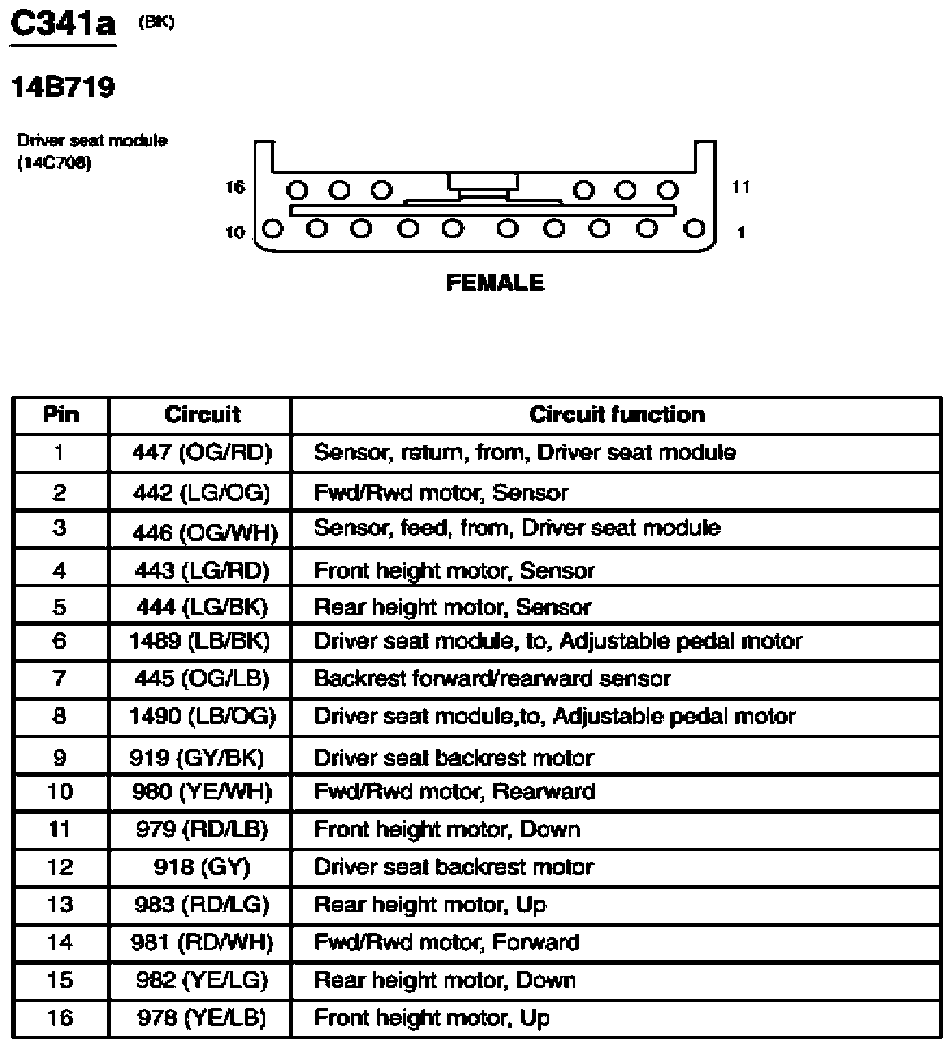

Fig 125: Driver Seat Module Connector End View (C341a)

G07840080

Courtesy of FORD MOTOR CO.

Fig 126: Driver Seat Module Connector End View (C341b)

G07840081

Courtesy of FORD MOTOR CO.

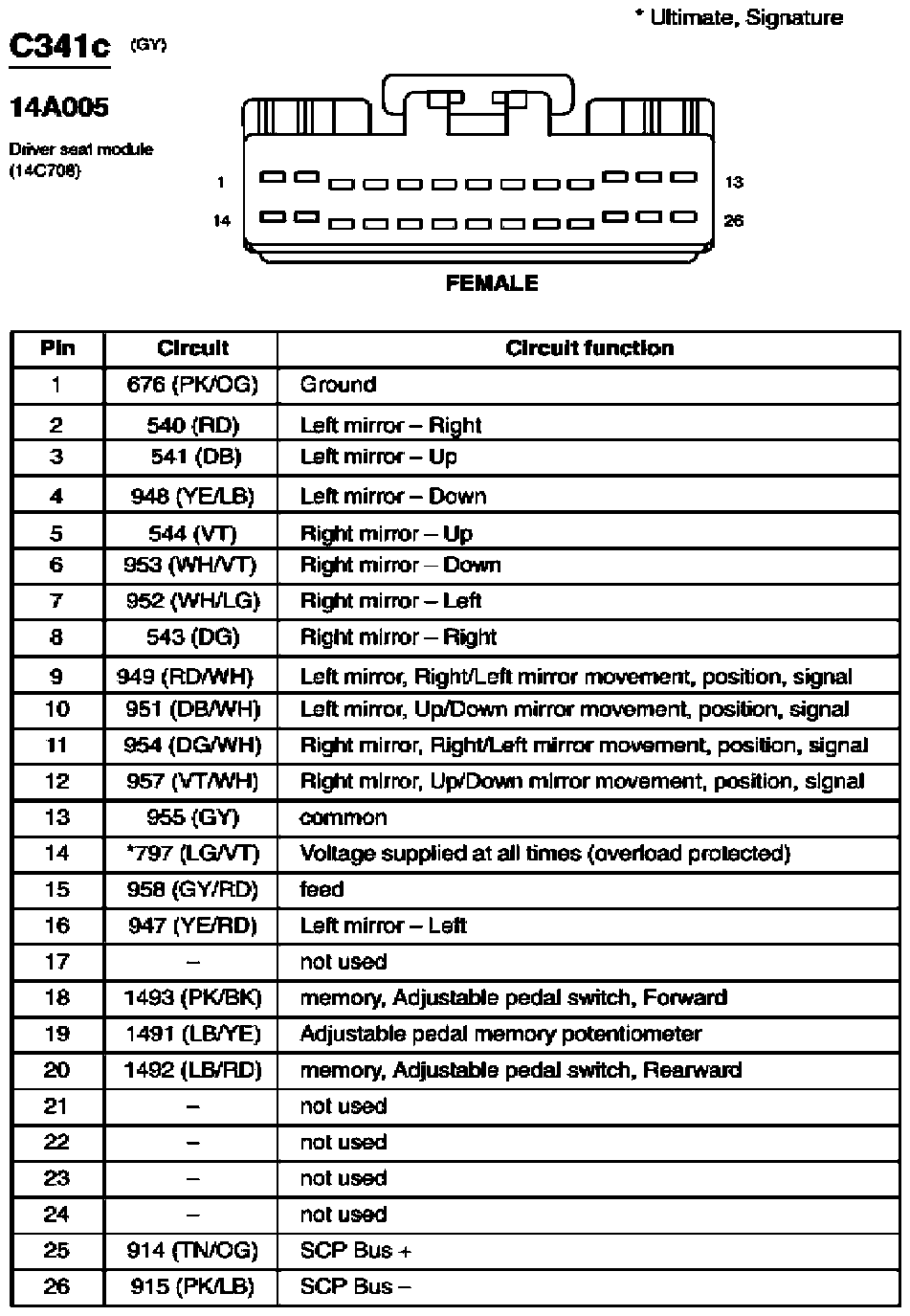

Fig 127: Driver Seat Module Connector End View (C341c)

G07840082

Courtesy of FORD MOTOR CO.

Fig 128: Power Seat Motor Assembly, Left Connector End View (C353)

G07840083

Courtesy of FORD MOTOR CO.

Fig 129: Seat Track Position Sensor, Left Connector End View (C356)

G07840084

Courtesy of FORD MOTOR CO.

Fig 130: Heated Seat Module, Driver Side Front Connector End View (C359)

G07840085

Courtesy of FORD MOTOR CO.

Fig 131: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07840086

Courtesy of FORD MOTOR CO.

Fig 132: Seat Cushion Heater, Left Front Connector End View (C364)

G07840087

Courtesy of FORD MOTOR CO.

Fig 133: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07840088

Courtesy of FORD MOTOR CO.

Fig 134: Side Air Bag Module, Left Connector End View (C367)

G07840089

Courtesy of FORD MOTOR CO.

Fig 135: Driver Seat Backrest Motor Connector End View (C368)

G07840090

Courtesy of FORD MOTOR CO.

Fig 136: Power Seat Motor Assembly, Left Connector End View (C372)

G07840091

Courtesy of FORD MOTOR CO.

Fig 137: Power Seat Motor Assembly, Left Connector End View (C373)

G07840092

Courtesy of FORD MOTOR CO.

Fig 138: Driver Memory Backrest Sensor Connector End View (C376)

G07840093

Courtesy of FORD MOTOR CO.

Fig 139: Power Seat Motor Assembly, Left Connector End View (C383)

G07840094

Courtesy of FORD MOTOR CO.

Fig 140: Inline Connector End View (C405)

G07840095

Courtesy of FORD MOTOR CO.

Fig 141: Inline Connector End View (C406)

G07840096

Courtesy of FORD MOTOR CO.

Fig 142: Inline Connector End View (C408)

G07840097

Courtesy of FORD MOTOR CO.

Fig 143: Fuel Door Release Solenoid Connector End View (C409)

G07840098

Courtesy of FORD MOTOR CO.

Fig 144: Inline Connector End View (C410)

G07840099

Courtesy of FORD MOTOR CO.

Fig 145: Lamp Assembly, Left Rear Connector End View (C414a)

G07840100

Courtesy of FORD MOTOR CO.

Fig 146: Lamp Assembly, Left Rear Connector End View (C414b)

G07840101

Courtesy of FORD MOTOR CO.

Fig 147: Lamp Assembly, Right Rear Connector End View (C417a)

G07840102

Courtesy of FORD MOTOR CO.

Fig 148: Lamp Assembly, Right Rear Connector End View (C417b)

G07840103

Courtesy of FORD MOTOR CO.

Fig 149: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07840104

Courtesy of FORD MOTOR CO.

Fig 150: Luggage Compartment Lamp Connector End View (C428)

G07840105

Courtesy of FORD MOTOR CO.

Fig 151: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07840106

Courtesy of FORD MOTOR CO.

Fig 152: Inline Connector End View (C431)

G07840107

Courtesy of FORD MOTOR CO.

Fig 153: Inline Connector End View (C432)

G07840108

Courtesy of FORD MOTOR CO.

Fig 154: Fuel Tank Unit Connector End View (C433)

G07840109

Courtesy of FORD MOTOR CO.

Fig 155: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07840110

Courtesy of FORD MOTOR CO.

Fig 156: Subwoofer Amplifier Connector End View (C466)

G07840111

Courtesy of FORD MOTOR CO.

Fig 157: Reversing Lamp, Left Connector End View (C487)

G07840112

Courtesy of FORD MOTOR CO.

Fig 158: Reversing Lamp, Right Connector End View (C488)

G07840113

Courtesy of FORD MOTOR CO.

Fig 159: Key Pad Switch Assembly Connector End View (C500)

G07840114

Courtesy of FORD MOTOR CO.

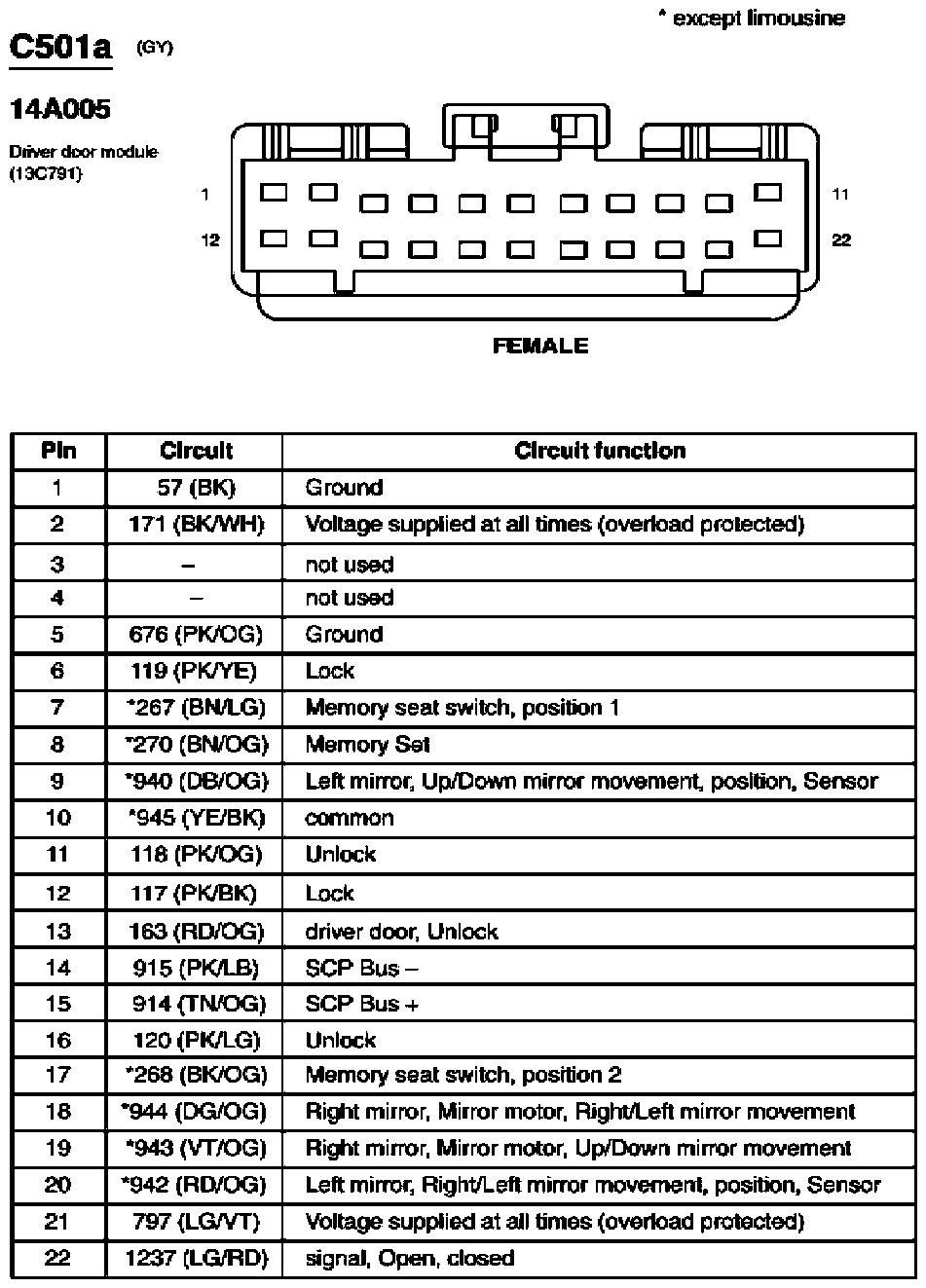

Fig 160: Driver Door Module Connector End View (C501a)

G07840115

Courtesy of FORD MOTOR CO.

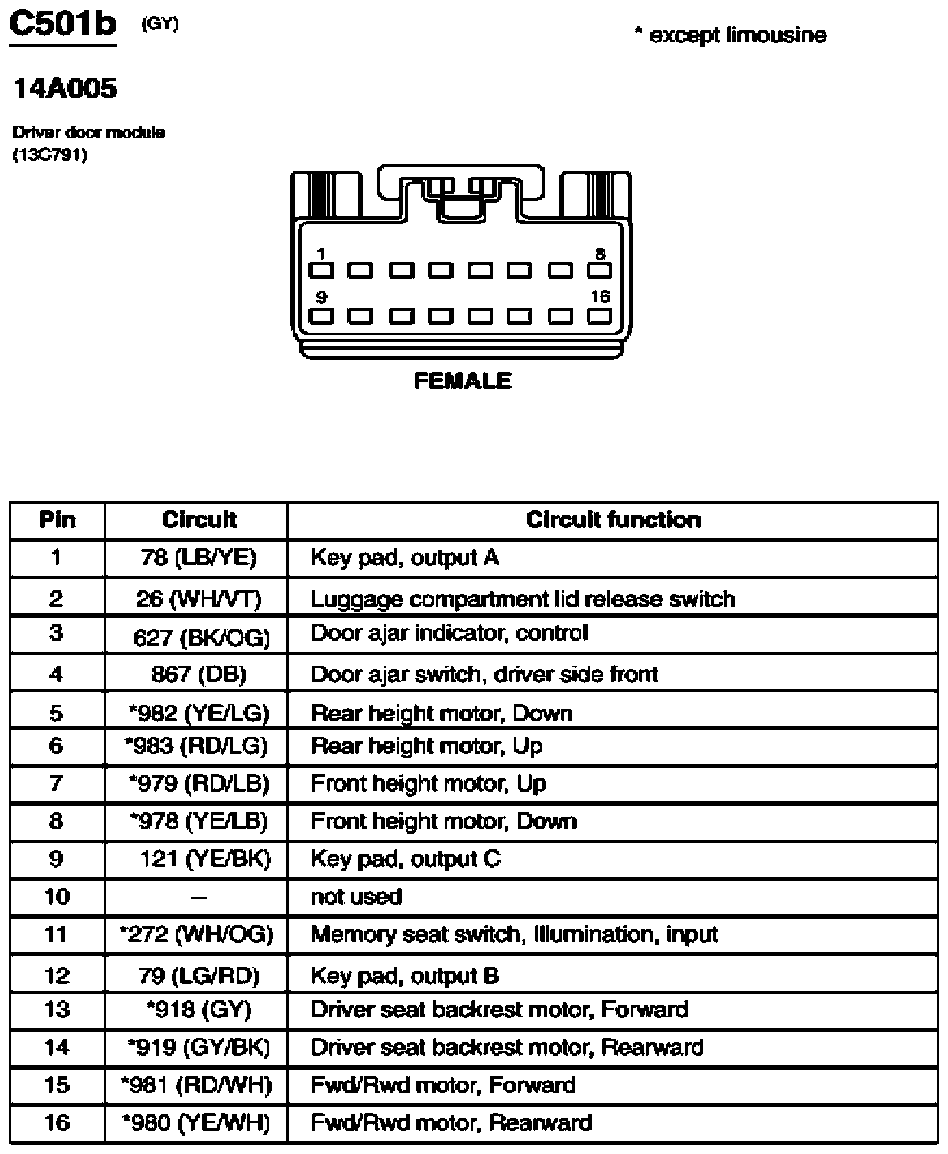

Fig 161: Driver Door Module Connector End View (C501b)

G07840116

Courtesy of FORD MOTOR CO.

Fig 162: Driver Door Module Connector End View (C501c)

G07840117

Courtesy of FORD MOTOR CO.

Fig 163: Master Window Adjust Switch Connector End View (C504a)

G07840118

Courtesy of FORD MOTOR CO.

Fig 164: Master Window Adjust Switch Connector End View (C504b)

G07840119

Courtesy of FORD MOTOR CO.

Fig 165: Door Lock Switch, Driver Side Connector End View (C505)

G07840120

Courtesy of FORD MOTOR CO.

Fig 166: Door Entry Lamp, Left Front Connector End View (C506)

G07840121

Courtesy of FORD MOTOR CO.

Fig 167: Anti-Theft Inhibit Switch Connector End View (C509)

G07840122

Courtesy of FORD MOTOR CO.

Fig 168: Inline Connector End View (C510)

G07840123

Courtesy of FORD MOTOR CO.

Fig 169: Inline Connector End View (C511)

G07840124

Courtesy of FORD MOTOR CO.

Fig 170: Exterior Rear View Mirror, LH Connector End View (C516a)

G07840125

Courtesy of FORD MOTOR CO.

Fig 171: Exterior Rear View Mirror, LH Side Connector End View (C516b)

G07840126

Courtesy of FORD MOTOR CO.

Fig 172: Exterior Rear View Mirror, LH Side Connector End View (C517)

G07840127

Courtesy of FORD MOTOR CO.

Fig 173: Power Seat Switch, Left Connector End View (C519)

G07840128

Courtesy of FORD MOTOR CO.

Fig 174: Speaker, Left Front Connector End View (C523)

G07840129

Courtesy of FORD MOTOR CO.

Fig 175: Power Window Motor, Driver Side Front Connector End View (C524)

G07840130

Courtesy of FORD MOTOR CO.

Fig 176: Door Lock Unit, Driver Side Front Connector End View (C525)

G07840131

Courtesy of FORD MOTOR CO.

Fig 177: Door Ajar Switch, Driver Side Front Connector End View (C526a)

G07840132

Courtesy of FORD MOTOR CO.

Fig 178: Door Ajar Switch, Driver Side Front Connector End View (C526b)

G07840133

Courtesy of FORD MOTOR CO.

Fig 179: Exterior Rear View Mirror Switch Connector End View (C527)

G07840134

Courtesy of FORD MOTOR CO.

Fig 180: Luggage Compartment Lid Release Switch Connector End View (C534)

G07840135

Courtesy of FORD MOTOR CO.

Fig 181: Seat Heater Switch, Driver Side Connector End View (C538)

G07840136

Courtesy of FORD MOTOR CO.

Fig 182: Power Seat Switch, Left Connector End View (C545)

G07840137

Courtesy of FORD MOTOR CO.

Fig 183: Exterior Rear View Mirror, Right Connector End View (C601)

G07840138

Courtesy of FORD MOTOR CO.

Fig 184: Door Ajar Switch, Passenger Side Front Connector End View (C602a)

G07840139

Courtesy of FORD MOTOR CO.

Fig 185: Door Ajar Switch, Passenger Side Front Connector End View (C602b)

G07840140

Courtesy of FORD MOTOR CO.

Fig 186: Window Adjust Switch, Passenger Side Connector End View (C604)

G07840141

Courtesy of FORD MOTOR CO.

Fig 187: Door Lock Switch, Passenger Side Connector End View (C605)

G07840142

Courtesy of FORD MOTOR CO.

Fig 188: Door Entry Lamp, Right Front Connector End View (C606)

G07840143

Courtesy of FORD MOTOR CO.

Fig 189: Power Window Motor, Passenger Side Front Connector End View (C608)

G07840144

Courtesy of FORD MOTOR CO.

Fig 190: Door Lock Unit, Passenger Side Front Connector End View (C609)

G07840145

Courtesy of FORD MOTOR CO.

Fig 191: Inline Connector End View (C610)

G07840146

Courtesy of FORD MOTOR CO.

Fig 192: Inline Connector End View (C611)

G07840147

Courtesy of FORD MOTOR CO.

Fig 193: Speaker, Right Front Connector End View (C612)

G07840148

Courtesy of FORD MOTOR CO.

Fig 194: Exterior Rear View Mirror, Right Connector End View (C615a)

G07840149

Courtesy of FORD MOTOR CO.

Fig 195: Exterior Rear View Mirror, Right Connector End View (C615b)

G07840150

Courtesy of FORD MOTOR CO.

Fig 196: Seat Adjust Switch, Passenger Side Front Connector End View (C627)

G07840151

Courtesy of FORD MOTOR CO.

Fig 197: Seat Heater Switch, Passenger Side Connector End View (C630)

G07840152

Courtesy of FORD MOTOR CO.

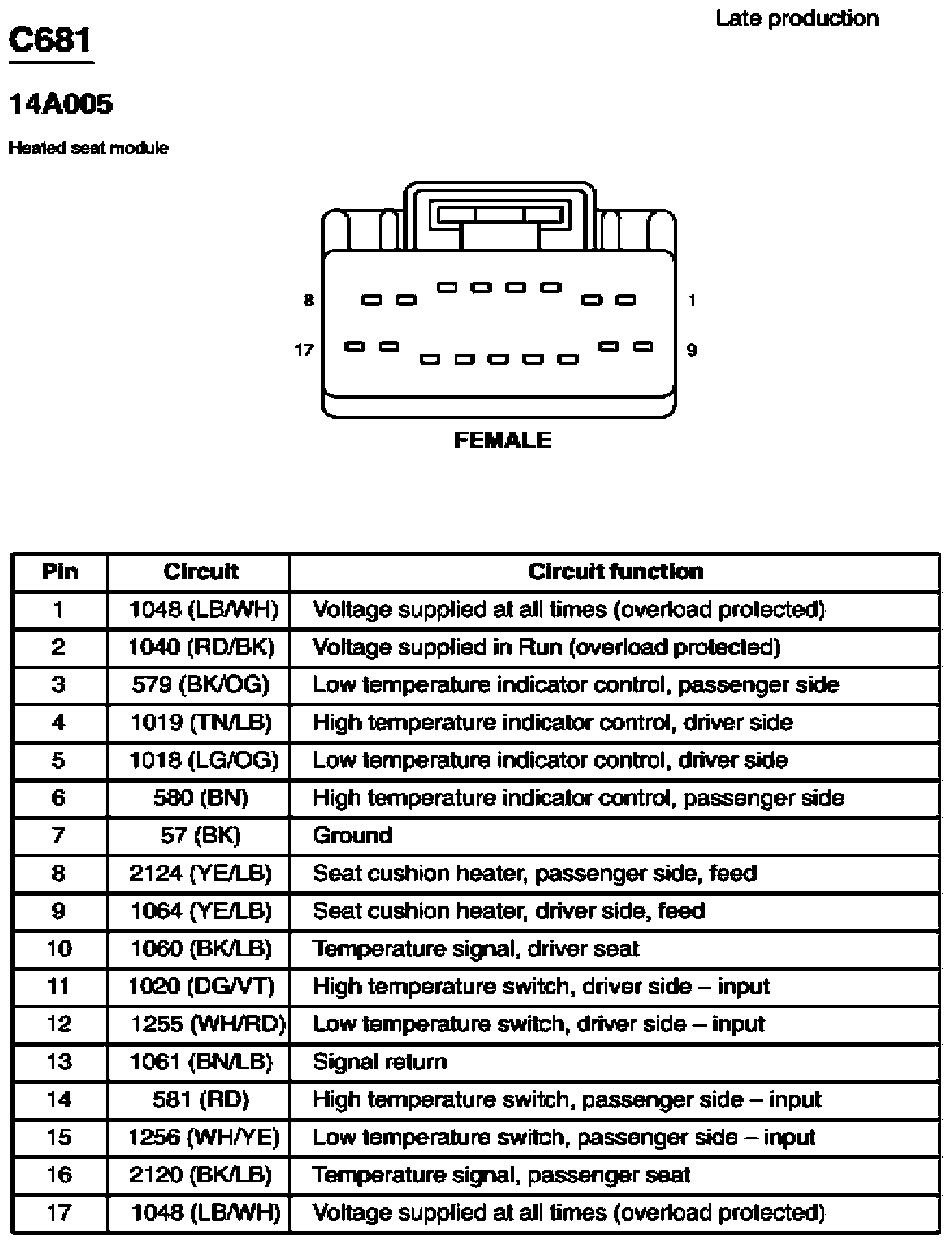

Fig 198: Heated Seat Module Connector End View (C681)

G07840153

Courtesy of FORD MOTOR CO.

Fig 199: Inline Connector End View (C700)

G07840154

Courtesy of FORD MOTOR CO.

Fig 200: Window Adjust Switch, Left Rear Connector End View (C701)

G07840155

Courtesy of FORD MOTOR CO.

Fig 201: Speaker, Left Rear Connector End View (C702)

G07840156

Courtesy of FORD MOTOR CO.

Fig 202: Power Window Motor, Left Rear Connector End View (C703)

G07840157

Courtesy of FORD MOTOR CO.

Fig 203: Door Lock Unit, Left Rear Connector End View (C705)

G07840158

Courtesy of FORD MOTOR CO.

Fig 204: Inline Connector End View (C710)

G07840159

Courtesy of FORD MOTOR CO.

Fig 205: Courtesy Lamp, Left Rear Door Connector End View (C713)

G07840160

Courtesy of FORD MOTOR CO.

Fig 206: Cigar Lighter, Left Rear Door Connector End View (C714)

G07840161

Courtesy of FORD MOTOR CO.

Fig 207: Door Ajar Switch, Driver Side Rear Connector End View (C715a)

G07840162

Courtesy of FORD MOTOR CO.

Fig 208: Door Ajar Switch, Driver Side Rear Connector End View (C715b)

G07840163

Courtesy of FORD MOTOR CO.

Fig 209: Inline Connector End View (C716)

G07840164

Courtesy of FORD MOTOR CO.

Fig 210: Inline Connector End View (C721)

G07840165

Courtesy of FORD MOTOR CO.

Fig 211: Seat Heater Switch, Left Rear Connector End View (C722)

G07840166

Courtesy of FORD MOTOR CO.

Fig 212: Inline Connector End View (C800)

G07840167

Courtesy of FORD MOTOR CO.

Fig 213: Window Adjust Switch, Right Rear Connector End View (C801)

G07840168

Courtesy of FORD MOTOR CO.

Fig 214: Speaker, Right Rear Connector End View (C802)

G07840169

Courtesy of FORD MOTOR CO.

Fig 215: Power Window Motor, Right Rear Connector End View (C803)

G07840170

Courtesy of FORD MOTOR CO.

Fig 216: Door Lock Unit, Right Rear Connector End View (C805)

G07840171

Courtesy of FORD MOTOR CO.

Fig 217: Inline Connector End View (C810)

G07840172

Courtesy of FORD MOTOR CO.

Fig 218: Courtesy Lamp, Right Rear Door Connector End View (C812)

G07840173

Courtesy of FORD MOTOR CO.

Fig 219: Cigar Lighter, Right Rear Door Connector End View (C814)

G07840174

Courtesy of FORD MOTOR CO.

Fig 220: Inline Connector End View (C818)

G07840175

Courtesy of FORD MOTOR CO.

Fig 221: Door Ajar Switch, Passenger Side Rear Connector End View (C820a)

G07840176

Courtesy of FORD MOTOR CO.

Fig 222: Door Ajar Switch, Passenger Side Rear Connector End View (C820b)

G07840177

Courtesy of FORD MOTOR CO.

Fig 223: Inline Connector End View (C821)

G07840178

Courtesy of FORD MOTOR CO.

Fig 224: Seat Heater Switch, Right Rear Connector End View (C822)

G07840179

Courtesy of FORD MOTOR CO.

Fig 225: Vanity Mirror Lamp, Right Connector End View (C906)

G07840180

Courtesy of FORD MOTOR CO.

Fig 226: Vanity Mirror Lamp, Left Connector End View (C907)

G07840181

Courtesy of FORD MOTOR CO.

Fig 227: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07840182

Courtesy of FORD MOTOR CO.

Fig 228: Inline Connector End View (C913)

G07840183

Courtesy of FORD MOTOR CO.

Fig 229: Inline Connector End View (C915)

G07840184

Courtesy of FORD MOTOR CO.

Fig 230: Inline Connector End View (C919)

G07840185

Courtesy of FORD MOTOR CO.

Fig 231: Roof Opening Panel Motor Assembly Connector End View (C920)

G07840186

Courtesy of FORD MOTOR CO.

Fig 232: Roof Opening Panel Module Connector End View (C921a)

G07840187

Courtesy of FORD MOTOR CO.

Fig 233: Roof Opening Panel Module Connector End View (C921b)

G07840188

Courtesy of FORD MOTOR CO.

Fig 234: Overhead Console Connector End View (C930a)

G07840189

Courtesy of FORD MOTOR CO.

Fig 235: Overhead Console Connector End View (C930b)

G07840190

Courtesy of FORD MOTOR CO.

Fig 236: Rail Lamp, LH Side Connector End View (C941)

G07840191

Courtesy of FORD MOTOR CO.

Fig 237: Rail Lamp, RH Side Connector End View (C942)

G07840192

Courtesy of FORD MOTOR CO.

Fig 238: Vanity Mirror Lamp, Left Rear Connector End View (C950a)

G07840193

Courtesy of FORD MOTOR CO.

Fig 239: Vanity Mirror Lamp, Left Rear Connector End View (C950b)

G07840194

Courtesy of FORD MOTOR CO.

Fig 240: Vanity Mirror Lamp, Right Rear Connector End View (C952a)

G07840195

Courtesy of FORD MOTOR CO.

Fig 241: Vanity Mirror Lamp, Right Rear Connector End View (C952b)

G07840196

Courtesy of FORD MOTOR CO.

Fig 242: Horn Relay Connector End View (C1006)

G07840197

Courtesy of FORD MOTOR CO.

Fig 243: A/C Clutch Relay Connector End View (C1008)

G07840198

Courtesy of FORD MOTOR CO.

Fig 244: Inline Connector End View (C1010)

G07840199

Courtesy of FORD MOTOR CO.

Fig 245: Blower Motor Relay Connector End View (C1011)

G07840200

Courtesy of FORD MOTOR CO.

Fig 246: PCM Power Relay Connector End View (C1016)

G07840201

Courtesy of FORD MOTOR CO.

Fig 247: Starter Relay Connector End View (C1017)

G07840202

Courtesy of FORD MOTOR CO.

Fig 248: PCM Power Diode Connector End View (C1018)

G07840203

Courtesy of FORD MOTOR CO.

Fig 249: Inline Connector End View (C1019)

G07840204

Courtesy of FORD MOTOR CO.

Fig 250: High Beam Lamp, Left Front Connector End View (C1020)

G07840205

Courtesy of FORD MOTOR CO.

Fig 251: Inline Connector End View (C1026)

G07840206

Courtesy of FORD MOTOR CO.

Fig 252: Front Blower Motor Connector End View (C1031)

G07840207

Courtesy of FORD MOTOR CO.

Fig 253: Battery Junction Box (BJB) Connector End View (C1035)

G07840208

Courtesy of FORD MOTOR CO.

Fig 254: High Beam Lamp, Right Front Connector End View (C1040)

G07840209

Courtesy of FORD MOTOR CO.

Fig 255: Inline Connector End View (C1045)

G07840210

Courtesy of FORD MOTOR CO.

Fig 256: Inline Connector End View (C1046)

G07840211

Courtesy of FORD MOTOR CO.

Fig 257: Engine Cooling Fan Module Connector End View (C1048a)

G07840212

Courtesy of FORD MOTOR CO.

Fig 258: Engine Cooling Fan Module Connector End View (C1048b)

G07840213

Courtesy of FORD MOTOR CO.

Fig 259: Fuel Pump Relay Connector End View (C1051)

G07840214

Courtesy of FORD MOTOR CO.

Fig 260: Idle Air Control (IAC) Valve Connector End View (C1066)

G07840215

Courtesy of FORD MOTOR CO.

Fig 261: Injector Pressure Sensor Connector End View (C1073)

G07840216

Courtesy of FORD MOTOR CO.

Fig 262: A/C Compressor Clutch Diode Connector End View (C1086)

G07840217

Courtesy of FORD MOTOR CO.

Fig 263: Park Lamp Relay Connector End View (C1095)

G07840218

Courtesy of FORD MOTOR CO.

Fig 264: Rear Window Defrost Relay Connector End View (C1099)

G07840219

Courtesy of FORD MOTOR CO.

Fig 265: Battery Connector End View (C1100a)

G07840220

Courtesy of FORD MOTOR CO.

Fig 266: Battery Connector End View (C1100b)

G07840221

Courtesy of FORD MOTOR CO.

Fig 267: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

G07840222

Courtesy of FORD MOTOR CO.

Fig 268: Low Beam Lamp, Left Front Connector End View (C1111)

G07840223

Courtesy of FORD MOTOR CO.

Fig 269: Low Beam Lamp, Right Front Connector End View (C1112)

G07840224

Courtesy of FORD MOTOR CO.

Fig 270: Park/Turn Lamp, Left Front Connector End View (C1115)

G07840225

Courtesy of FORD MOTOR CO.

Fig 271: Park/Turn Lamp, Right Front Connector End View (C1116)

G07840226

Courtesy of FORD MOTOR CO.

Fig 272: Crankshaft Position Sensor Connector End View (C1120)

G07840227

Courtesy of FORD MOTOR CO.

Fig 273: Power Steering Pressure Switch Connector End View (C1121)

G07840228

Courtesy of FORD MOTOR CO.

Fig 274: Engine Compartment Lamp Connector End View (C1159)

G07840229

Courtesy of FORD MOTOR CO.

Fig 275: Air Suspension Compressor Assembly Connector End View (C1179)

G07840230

Courtesy of FORD MOTOR CO.

Fig 276: Throttle Position Sensor (TPS) Connector End View (C1189)

G07840231

Courtesy of FORD MOTOR CO.

Fig 277: Ignition Transformer Capacitor Connector End View (C1196)

G07840232

Courtesy of FORD MOTOR CO.

Fig 278: ABS Relay Connector End View (C1255)

G07840233

Courtesy of FORD MOTOR CO.

Fig 279: A/C Pressure Transducer Sensor Connector End View (C1260)

G07840234

Courtesy of FORD MOTOR CO.

Fig 280: 4R70W Transmission Connector End View (C1274)

G07840235

Courtesy of FORD MOTOR CO.

Fig 281: Air Suspension Compressor Relay Connector End View (C1300)

G07840236

Courtesy of FORD MOTOR CO.

Fig 282: Front Blower Motor Speed Controller Connector End View (C1308)

G07840237

Courtesy of FORD MOTOR CO.

Fig 283: Cornering Lamp, Left Front Connector End View (C1443)

G07840238

Courtesy of FORD MOTOR CO.

Fig 284: Cornering Lamp, Right Front Connector End View (C1444)

G07840239

Courtesy of FORD MOTOR CO.

Fig 285: Evaporator Discharge Air Temperature Sensor Connector End View (C1447)

G07840240

Courtesy of FORD MOTOR CO.

Fig 286: EGR System Module Connector End View (C1450)

G07840241

Courtesy of FORD MOTOR CO.

Fig 287: Cornering Lamp Relay Connector End View (C1453)

G07840242

Courtesy of FORD MOTOR CO.

Fig 288: Adjustable Pedal Motor Connector End View (C2003)

G07840243

Courtesy of FORD MOTOR CO.

Fig 289: Brake Shift Interlock Connector End View (C2008)

G07840244

Courtesy of FORD MOTOR CO.

Fig 290: Parking Brake Switch Connector End View (C2015)

G07840245

Courtesy of FORD MOTOR CO.

Fig 291: Clock Connector End View (C2016)

G07840246

Courtesy of FORD MOTOR CO.

Fig 292: Inline Connector End View (C2026)

G07840247

Courtesy of FORD MOTOR CO.

Fig 293: Cigar Lighter, Front Connector End View (C2031)

G07840248

Courtesy of FORD MOTOR CO.

Fig 294: Power Point Connector End View (C2033)

G07840249

Courtesy of FORD MOTOR CO.

Fig 295: Courtesy Lamp, Left Footwell Connector End View (C2056)

G07840250

Courtesy of FORD MOTOR CO.

Fig 296: Courtesy Lamp, Right Footwell Connector End View (C2057)

G07840251

Courtesy of FORD MOTOR CO.

Fig 297: Accessory Delay Relay Connector End View (C2075)

G07840252

Courtesy of FORD MOTOR CO.

Fig 298: Adjustable Pedal Switch Connector End View (C2089)

G07840253

Courtesy of FORD MOTOR CO.

Fig 299: Adjustable Pedal Memory Potentiometer Connector End View (C2090)

G07840254

Courtesy of FORD MOTOR CO.

Fig 300: Temperature Blend Door Actuator, Driver Connector End View (C2091)

G07840255

Courtesy of FORD MOTOR CO.

Fig 301: Temperature Blend Door Actuator, Passenger Connector End View (C2092)

G07840256

Courtesy of FORD MOTOR CO.

Fig 302: Air Suspension Module Connector End View (C2131a)

G07840257

Courtesy of FORD MOTOR CO.

Fig 303: Air Suspension Module Connector End View (C2131b)

G07840258

Courtesy of FORD MOTOR CO.

Fig 304: Lighting Control Module Connector End View (C2145a)

G07840259

Courtesy of FORD MOTOR CO.

Fig 305: Lighting Control Module Connector End View (C2145b)

G07840260

Courtesy of FORD MOTOR CO.

Fig 306: Lighting Control Module Connector End View (C2145c)

G07840261

Courtesy of FORD MOTOR CO.

Fig 307: Lighting Control Module Connector End View (C2145d)

G07840262

Courtesy of FORD MOTOR CO.

Fig 308: Panel/Defrost Mode Actuator Connector End View (C2248)

G07840263

Courtesy of FORD MOTOR CO.

Fig 309: Audio/Navigation Control Unit Connector End View (C2253a)

G07840264

Courtesy of FORD MOTOR CO.

Fig 310: Audio/Navigation Control Unit Connector End View (C2253b)

G07840265

Courtesy of FORD MOTOR CO.

Fig 311: Audio/Navigation Control Unit Connector End View (C2253c)

G07840266

Courtesy of FORD MOTOR CO.

Fig 312: Audio/Navigation Control Unit Connector End View (C2253d)

G07840267

Courtesy of FORD MOTOR CO.

Fig 313: Power Seat Motor Assembly, Right Connector End View (C3015)

G07840268

Courtesy of FORD MOTOR CO.

Fig 314: CD Changer Connector End View (C3028)

G07840269

Courtesy of FORD MOTOR CO.

Fig 315: Occupant Classification Sensor Module Connector End View (C3043)

G07840270

Courtesy of FORD MOTOR CO.

Fig 316: Inline Connector End View (C3047)

G07840271

Courtesy of FORD MOTOR CO.

Fig 317: Inline Connector End View (C3050)

G07840272

Courtesy of FORD MOTOR CO.

Fig 318: Inline Connector End View (C3051)

G07840273

Courtesy of FORD MOTOR CO.

Fig 319: Inline Connector End View (C3053)

G07840274

Courtesy of FORD MOTOR CO.

Fig 320: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07840275

Courtesy of FORD MOTOR CO.

Fig 321: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07840276

Courtesy of FORD MOTOR CO.

Fig 322: Inline Connector End View (C3133)

G07840277

Courtesy of FORD MOTOR CO.

Fig 323: Inline Connector End View (C3134)

G07840278

Courtesy of FORD MOTOR CO.

Fig 324: Inline Connector End View (C3135)

G07840279

Courtesy of FORD MOTOR CO.

Fig 325: Inline Connector End View (C3137)

G07840280

Courtesy of FORD MOTOR CO.

Fig 326: Filter Connector End View (C3148)

G07840281

Courtesy of FORD MOTOR CO.

Fig 327: Occupant Classification Sensor (OCS) Connector End View (C3159)

G07840282

Courtesy of FORD MOTOR CO.

Fig 328: Rear Audio/Climate Control Module Connector End View (C3160)

G07840283

Courtesy of FORD MOTOR CO.

Fig 329: Rear Audio/Climate Control Module Connector End View (C3161)

G07840284

Courtesy of FORD MOTOR CO.

Fig 330: Heated Seat Module, Left Rear Connector End View (C3162)

G07840285

Courtesy of FORD MOTOR CO.

Fig 331: Heated Seat Module, Right Rear Connector End View (C3163)

G07840286

Courtesy of FORD MOTOR CO.

Fig 332: Power Point, Left Rear Connector End View (C3164)

G07840287

Courtesy of FORD MOTOR CO.

Fig 333: Power Point, Right Rear Connector End View (C3165)

G07840288

Courtesy of FORD MOTOR CO.

Fig 334: Seat Cushion Heater, Left Rear Connector End View (C3167)

G07840289

Courtesy of FORD MOTOR CO.

Fig 335: Seat Back Heater, Left Rear Connector End View (C3168)

G07840290

Courtesy of FORD MOTOR CO.

Fig 336: Seat Cushion Heater, Right Rear Connector End View (C3169)

G07840291

Courtesy of FORD MOTOR CO.

Fig 337: Seat Back Heater, Right Rear Connector End View (C3170)

G07840292

Courtesy of FORD MOTOR CO.

Fig 338: Redundant Seat Adjust Switch, Passenger Side Front Connector End View (C3197)

G07840293

Courtesy of FORD MOTOR CO.

Fig 339: Inline Connector End View (C3205)

G07840294

Courtesy of FORD MOTOR CO.

Fig 340: Inline Connector End View (C3206)

G07840295

Courtesy of FORD MOTOR CO.

Fig 341: Parking Aid Sensor, Outer Left Connector End View (C4009)

G07840296

Courtesy of FORD MOTOR CO.

Fig 342: Parking Aid Sensor, Outer Right Connector End View (C4011)

G07840297

Courtesy of FORD MOTOR CO.

Fig 343: Parking Aid Module (PAM) Connector End View (C4014a)

G07840298

Courtesy of FORD MOTOR CO.

Fig 344: Parking Aid Module (PAM) Connector End View (C4014b)

G07840299

Courtesy of FORD MOTOR CO.

Fig 345: Fuel Pump Driver Module Connector End View (C4033)

G07840300

Courtesy of FORD MOTOR CO.

Fig 346: Air Suspension Height Sensor Connector End View (C4043)

G07840301

Courtesy of FORD MOTOR CO.

Fig 347: Air Spring Solenoid Valve, Left Rear Connector End View (C4044)

G07840302

Courtesy of FORD MOTOR CO.

Fig 348: Air Spring Solenoid Valve, Right Rear Connector End View (C4045)

G07840303

Courtesy of FORD MOTOR CO.

Fig 349: License Plate Lamp Connector End View (C4046)

G07840304

Courtesy of FORD MOTOR CO.

Fig 350: Luggage Compartment Lid Switch Connector End View (C4079)

G07840305

Courtesy of FORD MOTOR CO.

Fig 351: Luggage Compartment Lid Closing Motor Connector End View (C4080)

G07840306

Courtesy of FORD MOTOR CO.

Fig 352: Power Luggage Compartment Lid Module Connector End View (C4081a)

G07840307

Courtesy of FORD MOTOR CO.

Fig 353: Power Luggage Compartment Lid Module Connector End View (C4081b)

G07840308

Courtesy of FORD MOTOR CO.

Fig 354: Power Luggage Compartment Lid Module Connector End View (C4081c)

G07840309

Courtesy of FORD MOTOR CO.

Fig 355: Power Luggage Compartment Lid Module Connector End View (C4081d)

G07840310

Courtesy of FORD MOTOR CO.

Fig 356: Parking Aid Radar Sensor Connector End View (C4082)

G07840311

Courtesy of FORD MOTOR CO.

Fig 357: Air Suspension Disable Switch Connector End View (C4087)

G07840312

Courtesy of FORD MOTOR CO.

Fig 358: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07840313

Courtesy of FORD MOTOR CO.

Fig 359: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)

G07840314

Courtesy of FORD MOTOR CO.

Fig 360: Trunk Pull-Down Module Connector End View (C4197)

G07840315

Courtesy of FORD MOTOR CO.

Fig 361: Luggage Compartment Lamp Connector End View (C4198)

G07840316

Courtesy of FORD MOTOR CO.

Fig 362: Luggage Compartment Lid Motor Connector End View (C4200a)

G07840317

Courtesy of FORD MOTOR CO.

Fig 363: Luggage Compartment Lid Motor Connector End View (C4200b)

G07840318

Courtesy of FORD MOTOR CO.

Fig 364: Luggage Compartment Lid Motor Connector End View (C4200c)

G07840319

Courtesy of FORD MOTOR CO.

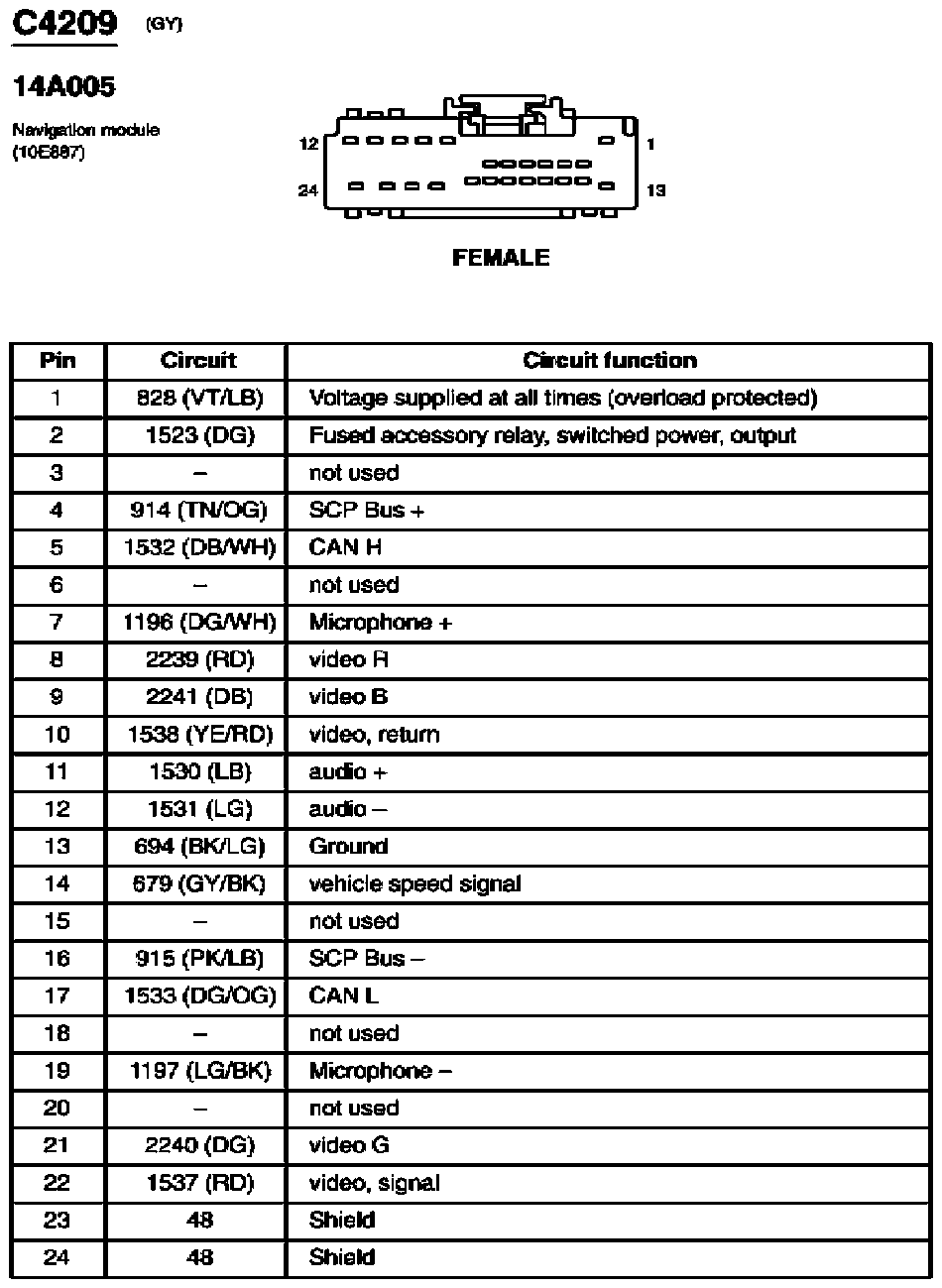

Fig 365: Navigation Module Connector End View (C4209)

G07840320

Courtesy of FORD MOTOR CO.

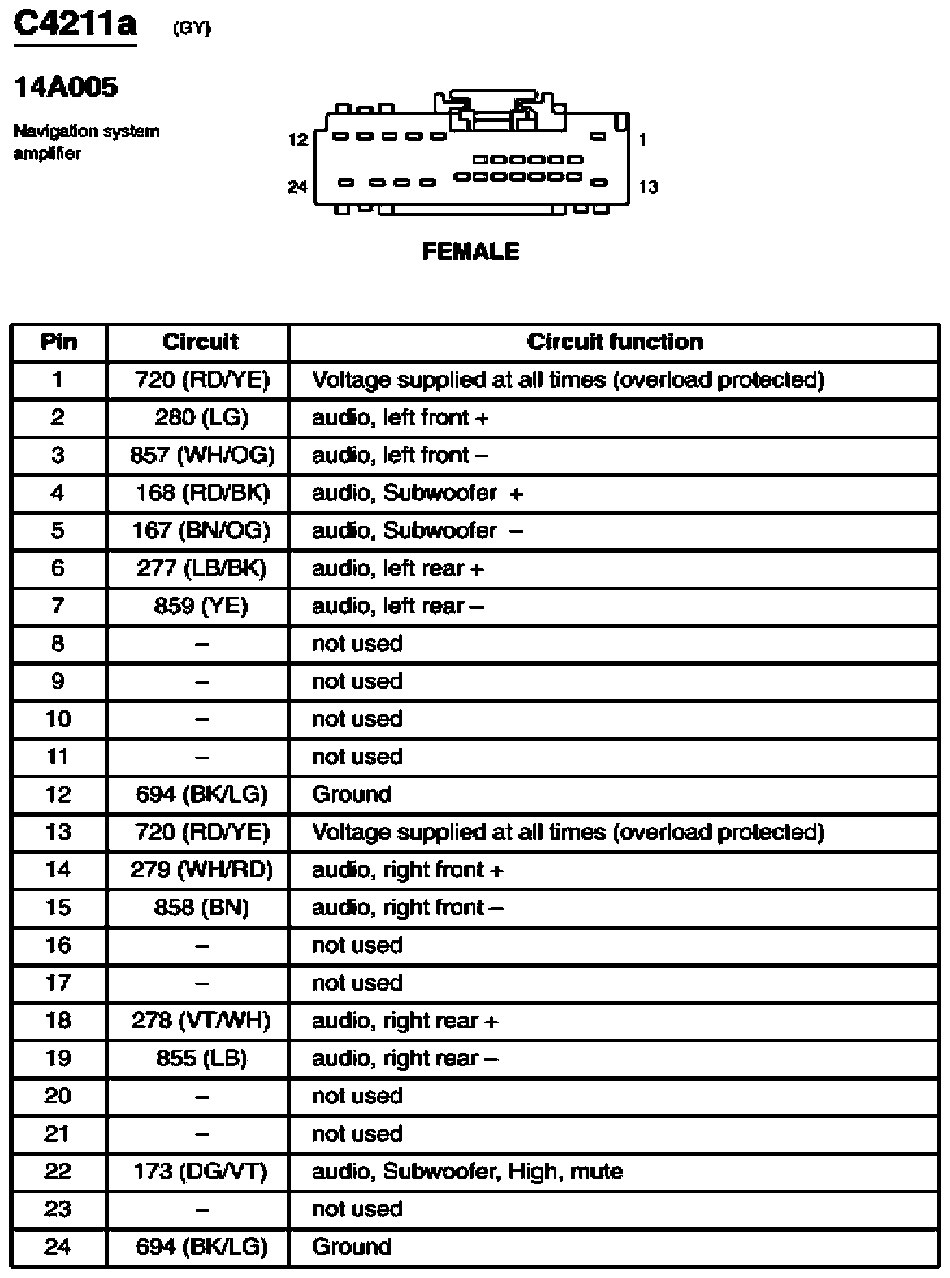

Fig 366: Navigation System Amplifier Connector End View (C4211a)

G07840321

Courtesy of FORD MOTOR CO.

Fig 367: Navigation System Amplifier Connector End View (C4211b)

G07840322

Courtesy of FORD MOTOR CO.

Fig 368: Subwoofer Connector End View (C4212)

G07840323

Courtesy of FORD MOTOR CO.

Fig 369: Isolator/Radio Antenna Module Connector End View (C4221)

G07840324

Courtesy of FORD MOTOR CO.

Fig 370: Liftgate/Decklid Anti-Theft Inhibit Switch Connector End View (C4225)

G07840325

Courtesy of FORD MOTOR CO.

Fig 371: Electrochromatic Inside Mirror Unit Connector End View (C9012)

G07840326

Courtesy of FORD MOTOR CO.
