Driver Seat Module (DSM) C341g

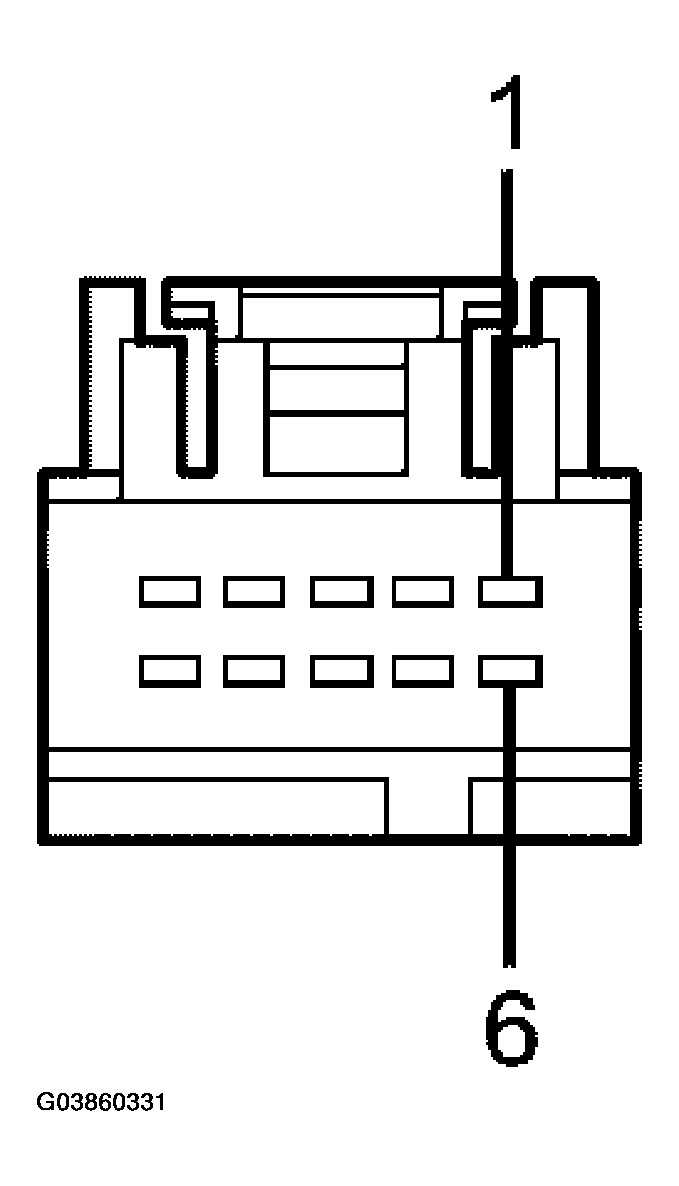

Fig 1: Identifying Driver Seat Module (DSM) C341g Connector
G03860331Courtesy of FORD MOTOR CO.
DRIVER SEAT MODULE (DSM) C341G CONNECTOR TERMINAL PIN REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 1003 (GY/YE) voltage Greater than 10 volts at the DSM connector.
6 1203 (BK/LB) ground Less than 5 ohms between the DSM connector and ground.
