Multifunction Switch, Turn Portion

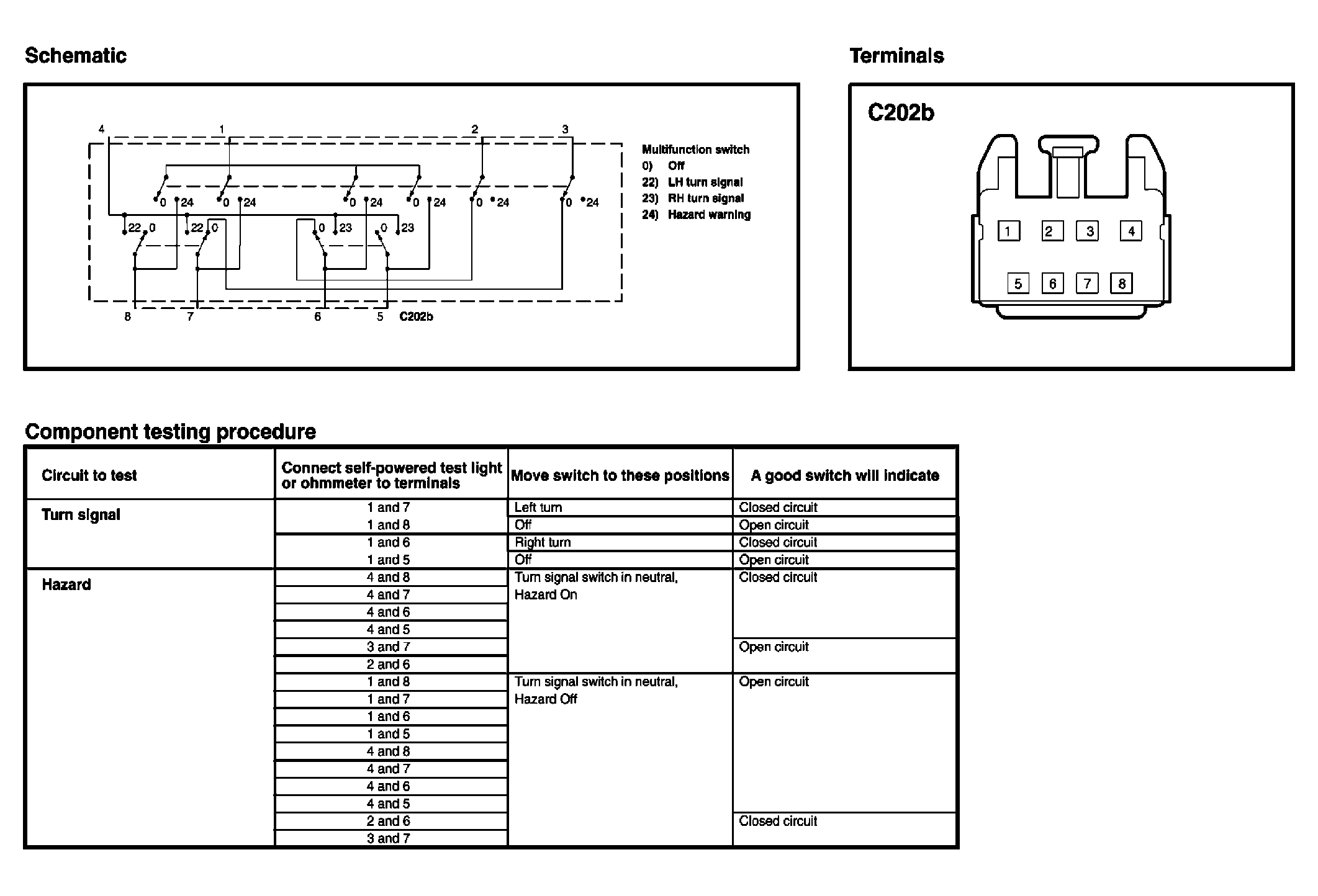

Fig 1: Multifunction Switch, Turn Portion - Component Testing
G03982455Courtesy of FORD MOTOR CO.
