Powertrain Control Module (PCM) C175t

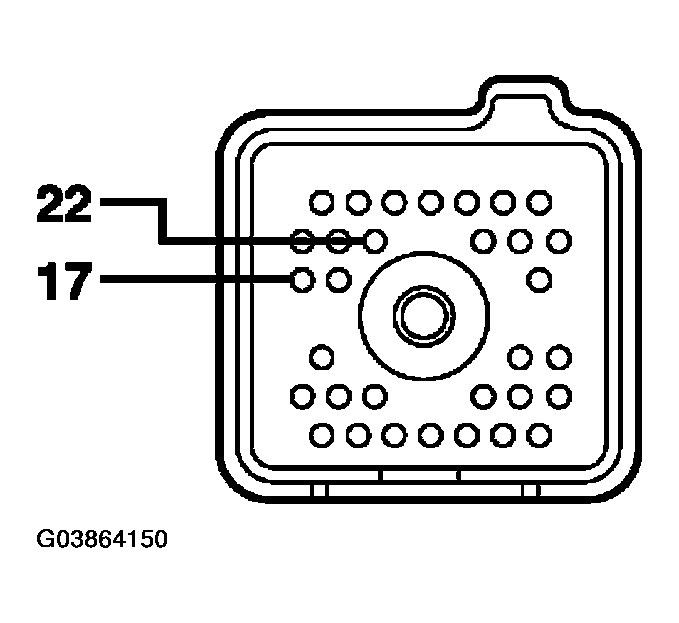

POWERTRAIN CONTROL MODULE (PCM) C175T CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 17 | 359 (GY/RD) digital TR sensor signal return | 0 volts, less than 5 ohms between the PCM and the digital TR sensor. |
| 22 | 1144 (YE/BK) digital TR sensor signal | 0 volts, less than 5 ohms between the PCM and the digital TR sensor. |
