Starter Motor: Notes

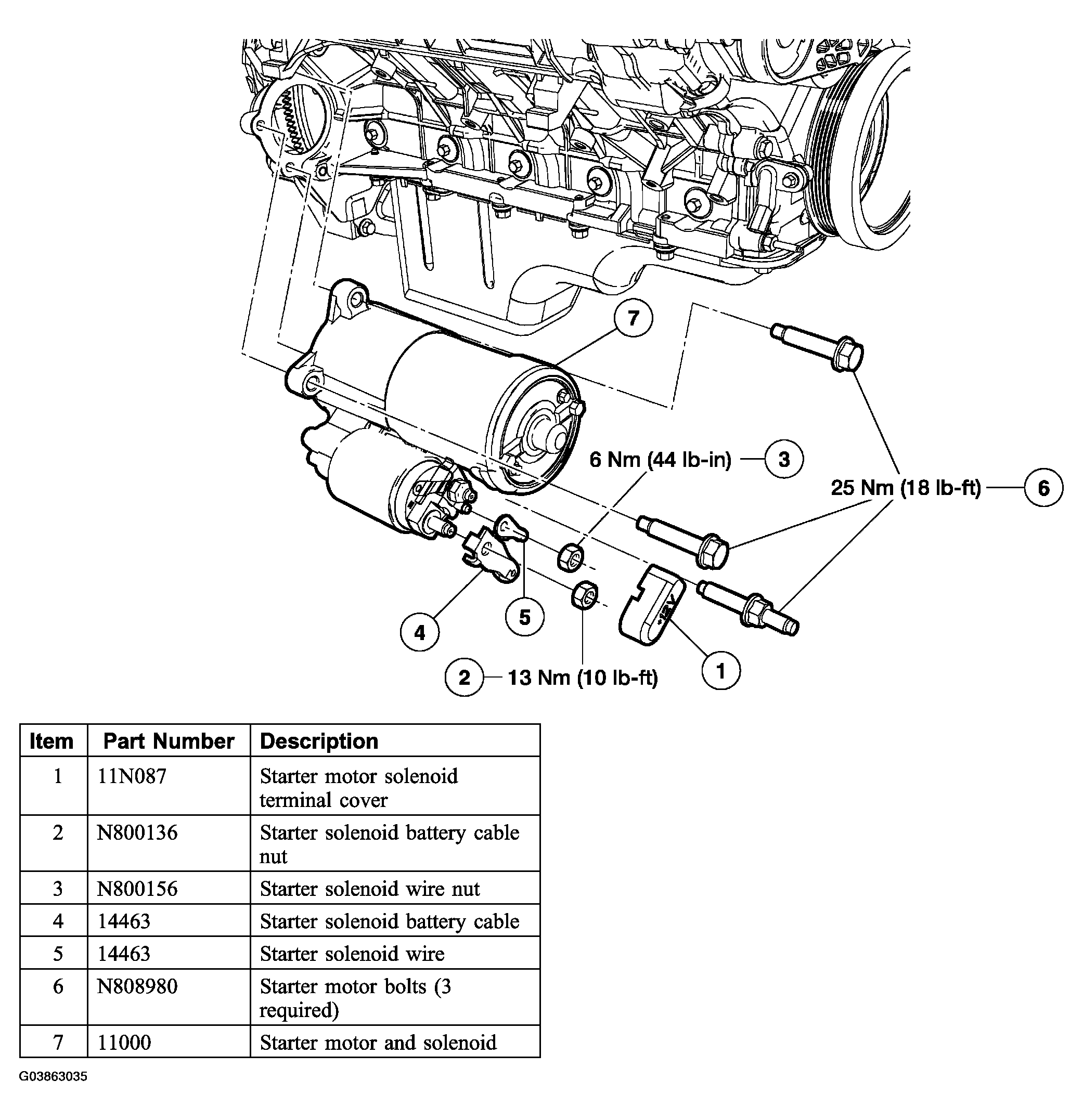

Fig 1: Locating Starter Motor Components (Torque Specs)
G03863035Courtesy of FORD MOTOR CO.
