Exhaust System - Exploded View

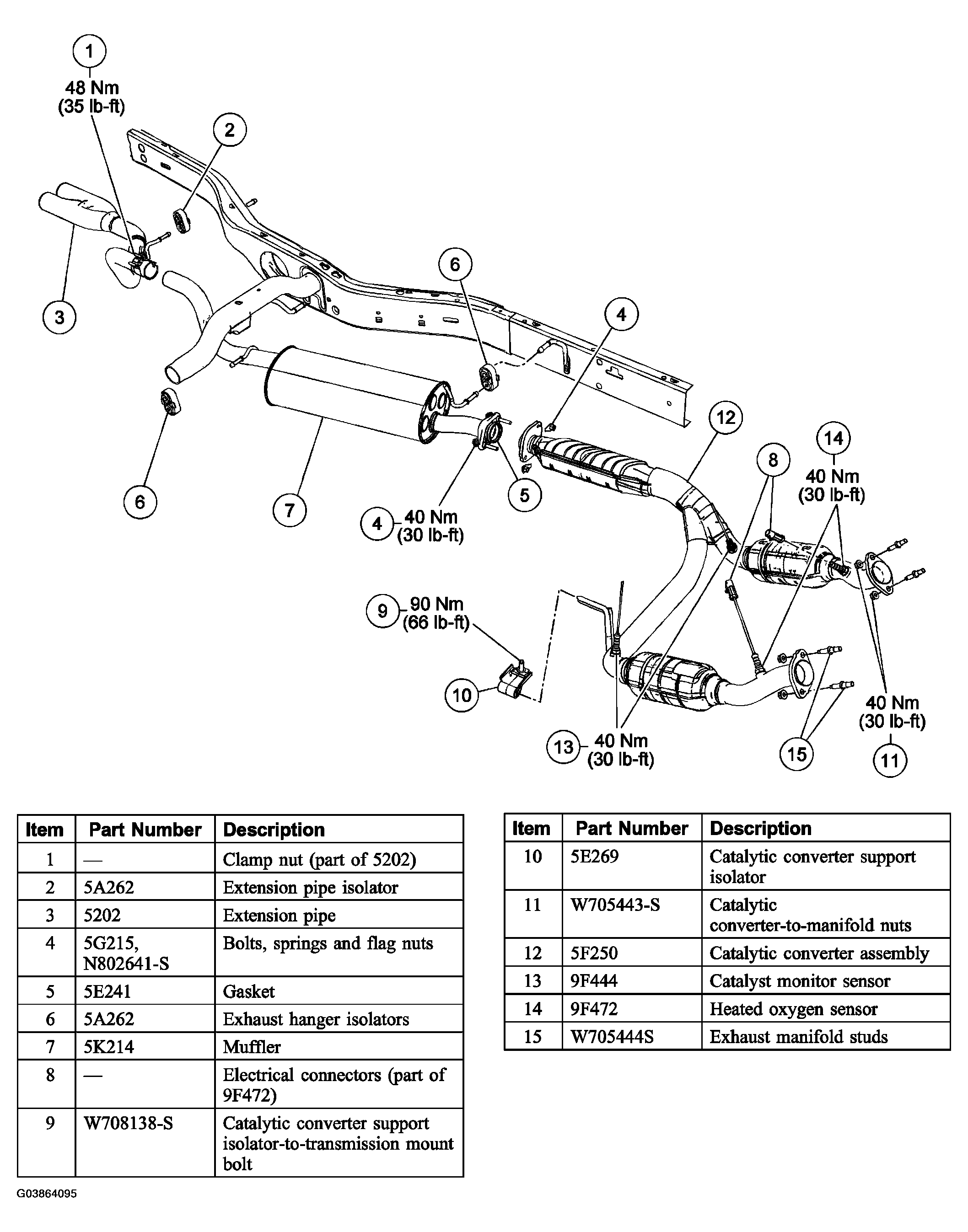

Fig 1: Exploded View Of Exhaust System
G03864095Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the GENERAL PROCEDURES .
