Powertrain Control Module (PCM)

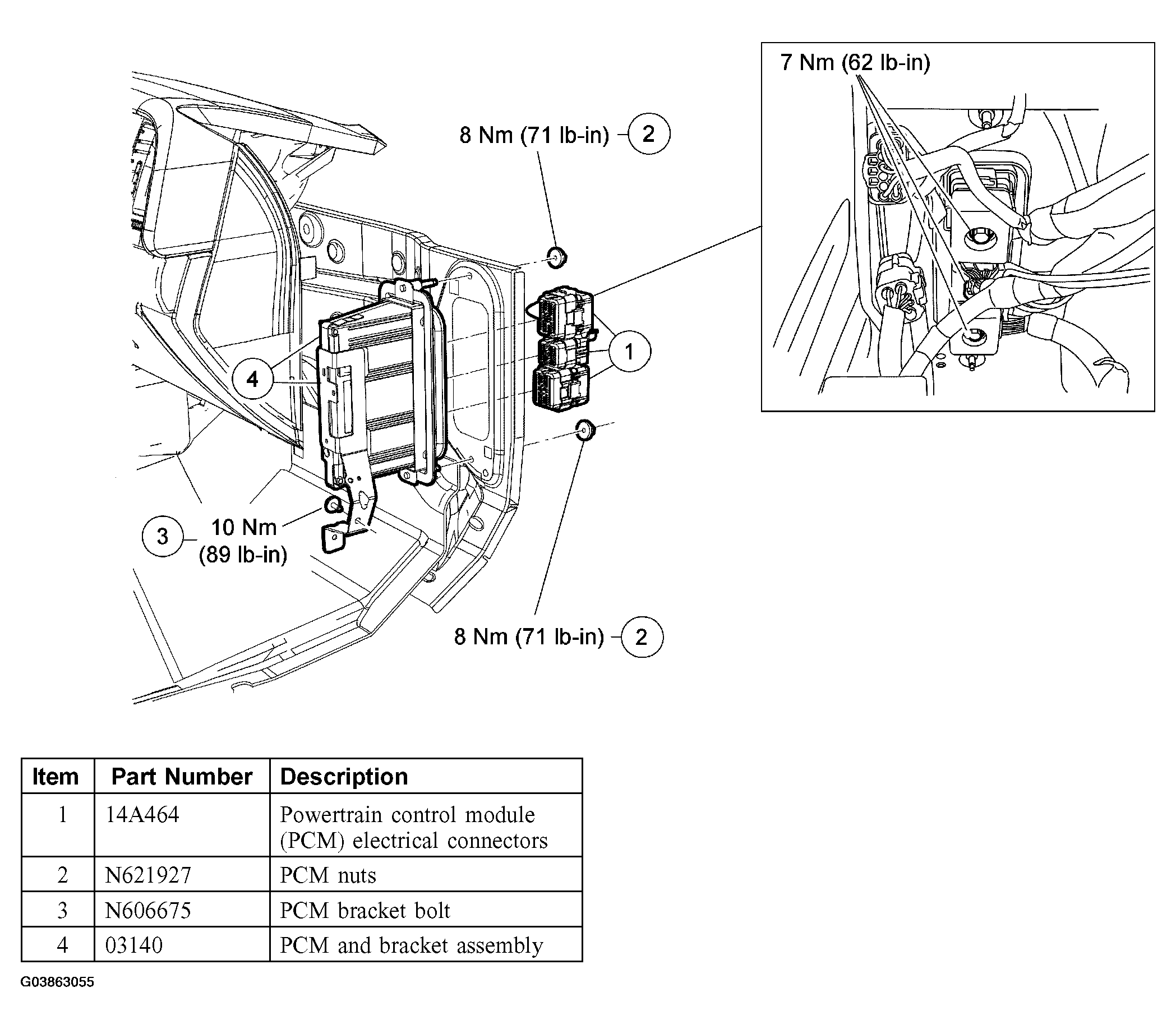

Fig 1: Locating Powertrain Control Module (PCM) (Torque Specs)

Courtesy of FORD MOTOR CO.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the RF door scuff plate.
Remove the RH cowl side trim panel.
Disconnect the powertrain control module (PCM) electrical connectors.
Remove the PCM mounting nuts.
- To install, tighten to 8 Nm (71 lb-in).
Lower the glove box past the stops and disconnect the cable from the side of the glove box.

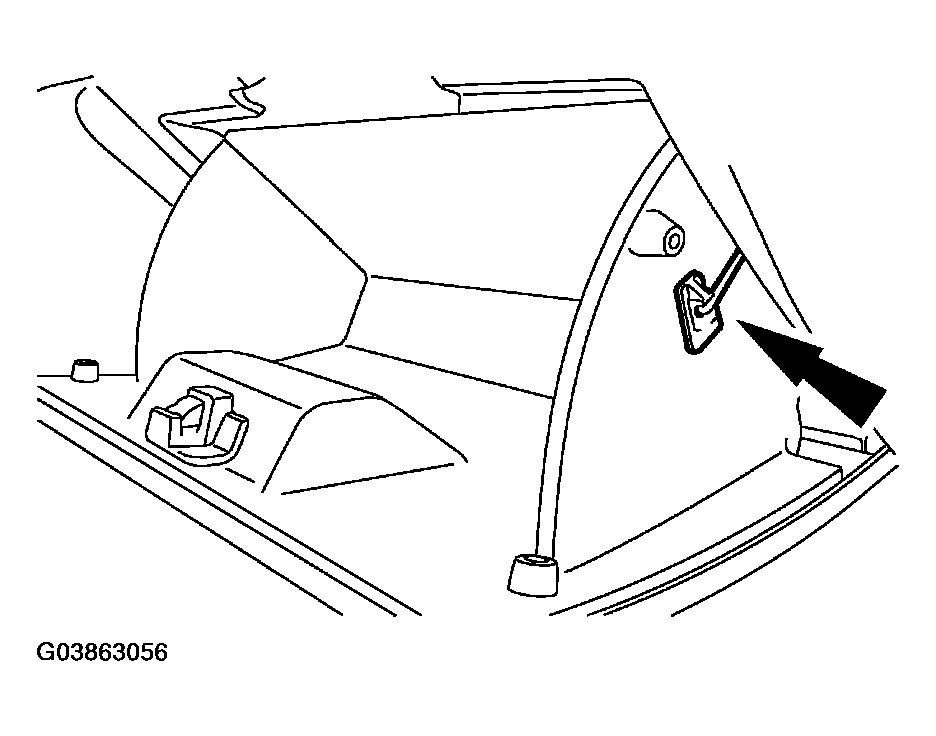

Fig 2: Disconnecting Cable From Side Of Glove Box
Courtesy of FORD MOTOR CO.
Remove the PCM bracket bolt.
- To install, tighten to 10 Nm (89 lb-in).
Remove the pin-type retainer and position the sound deadening insulation upward.

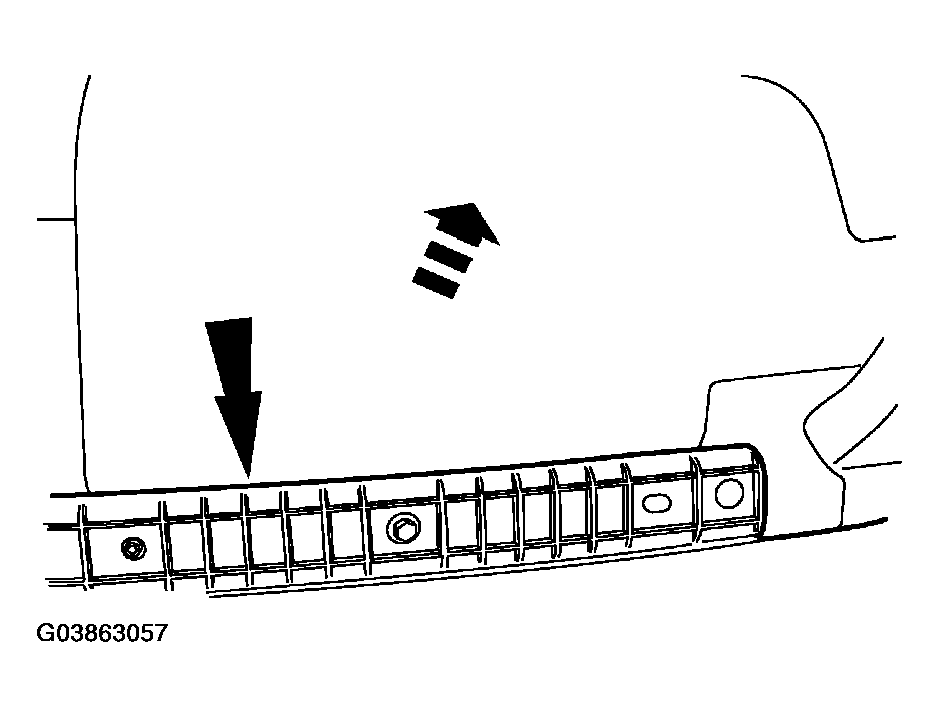

Fig 3: Removing Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Remove the lower screw for the fuel pump driver module and position back and disconnect the electrical connector.

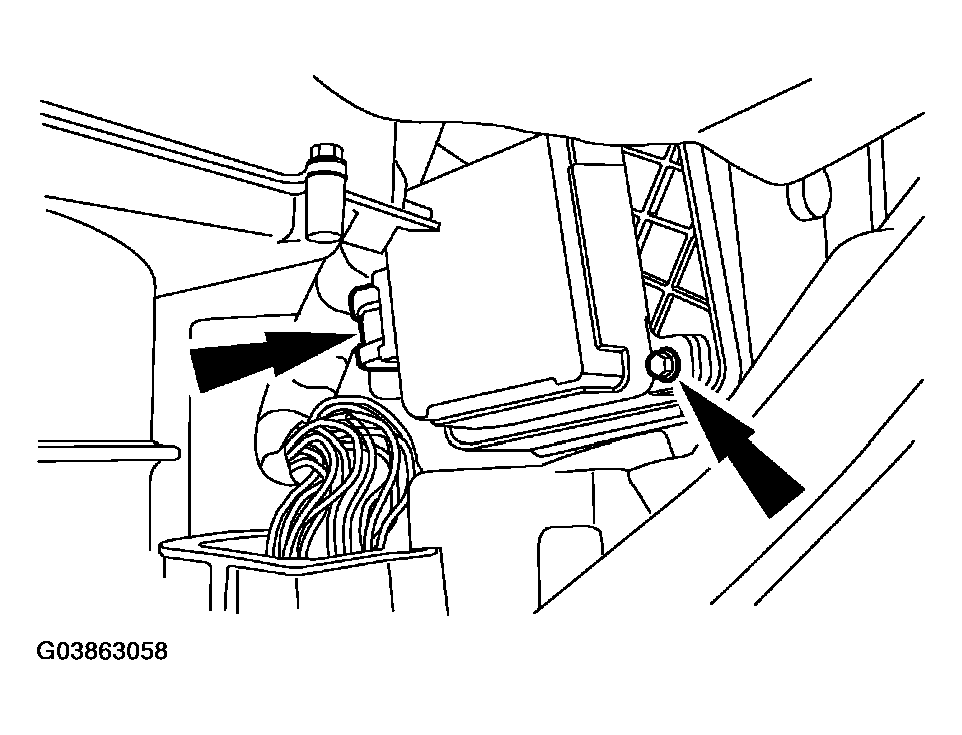

Fig 4: Removing Lower Screw For Fuel Pump Driver Module
Courtesy of FORD MOTOR CO.
Remove the PCM and bracket as an assembly.
To install, reverse the removal procedure.
