Transmission Control Switch (TCS)

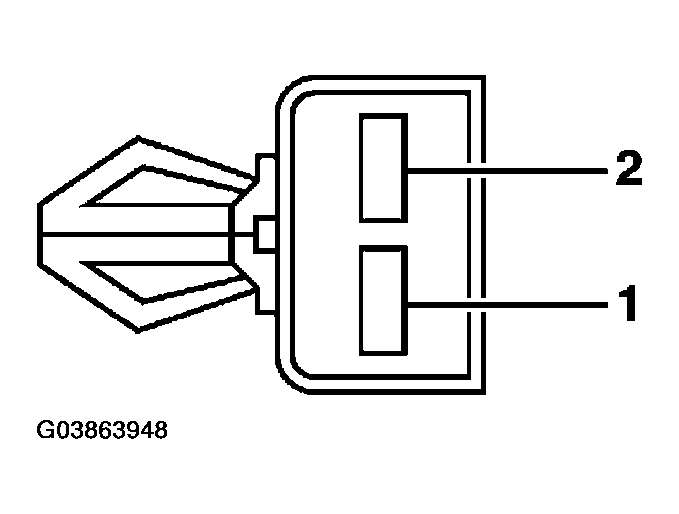

Fig 1: Identifying Transmission Control Switch (TCS) Pinouts
G03863948Courtesy of FORD MOTOR CO.
TRANSMISSION CONTROL SWITCH (TCS) REFERENCE CHART

Pin Number Circuit Description
1 Transmission Overdrive Cancel Switch to PCM
2 Voltage in run
