Relay - Micro ISO: Notes

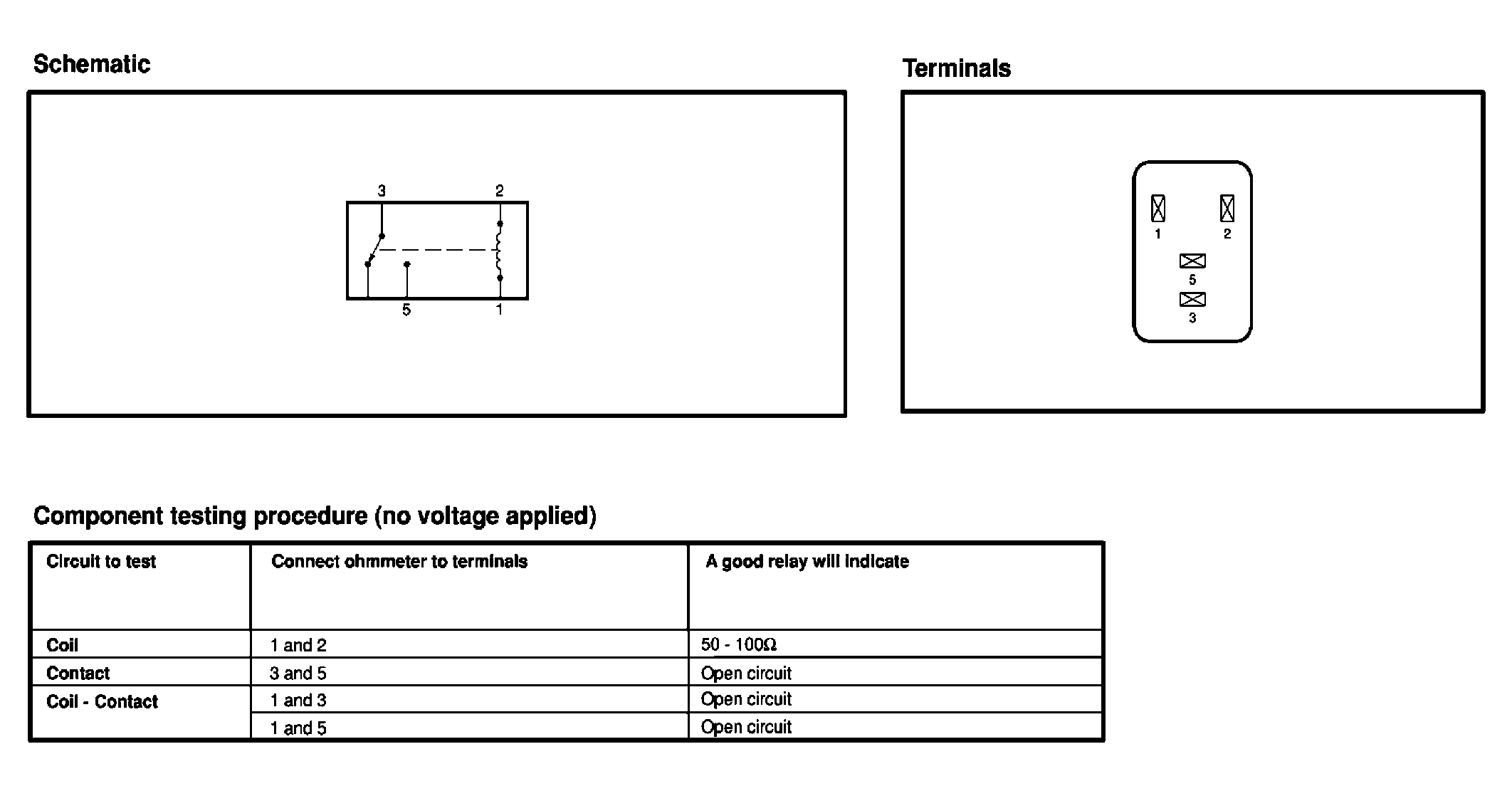

Fig 1: Relay - Micro ISO - Component Testing
G03982466Courtesy of FORD MOTOR CO.
