Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch Diode | In battery junction box (BJB). See Figure . |

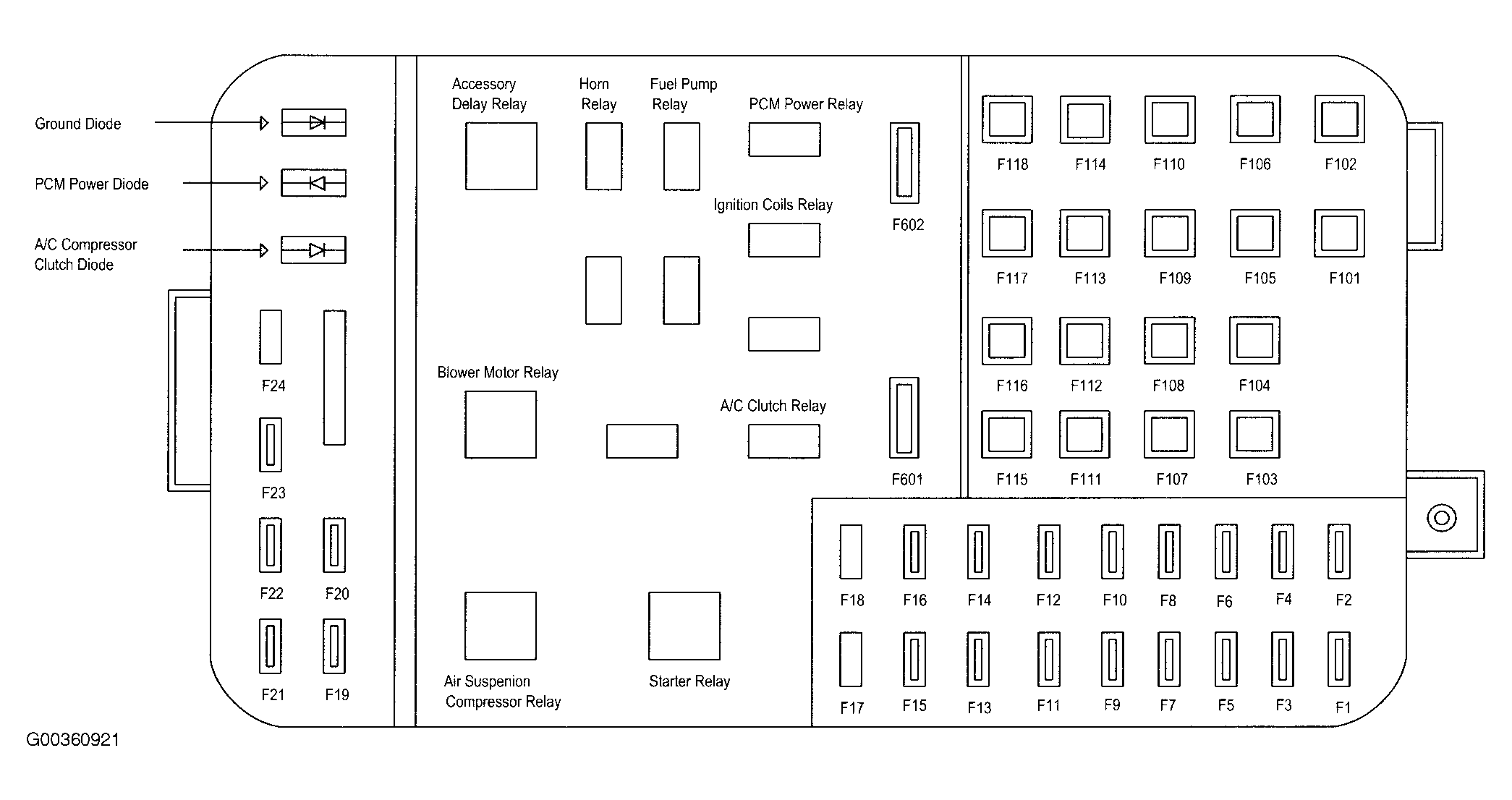

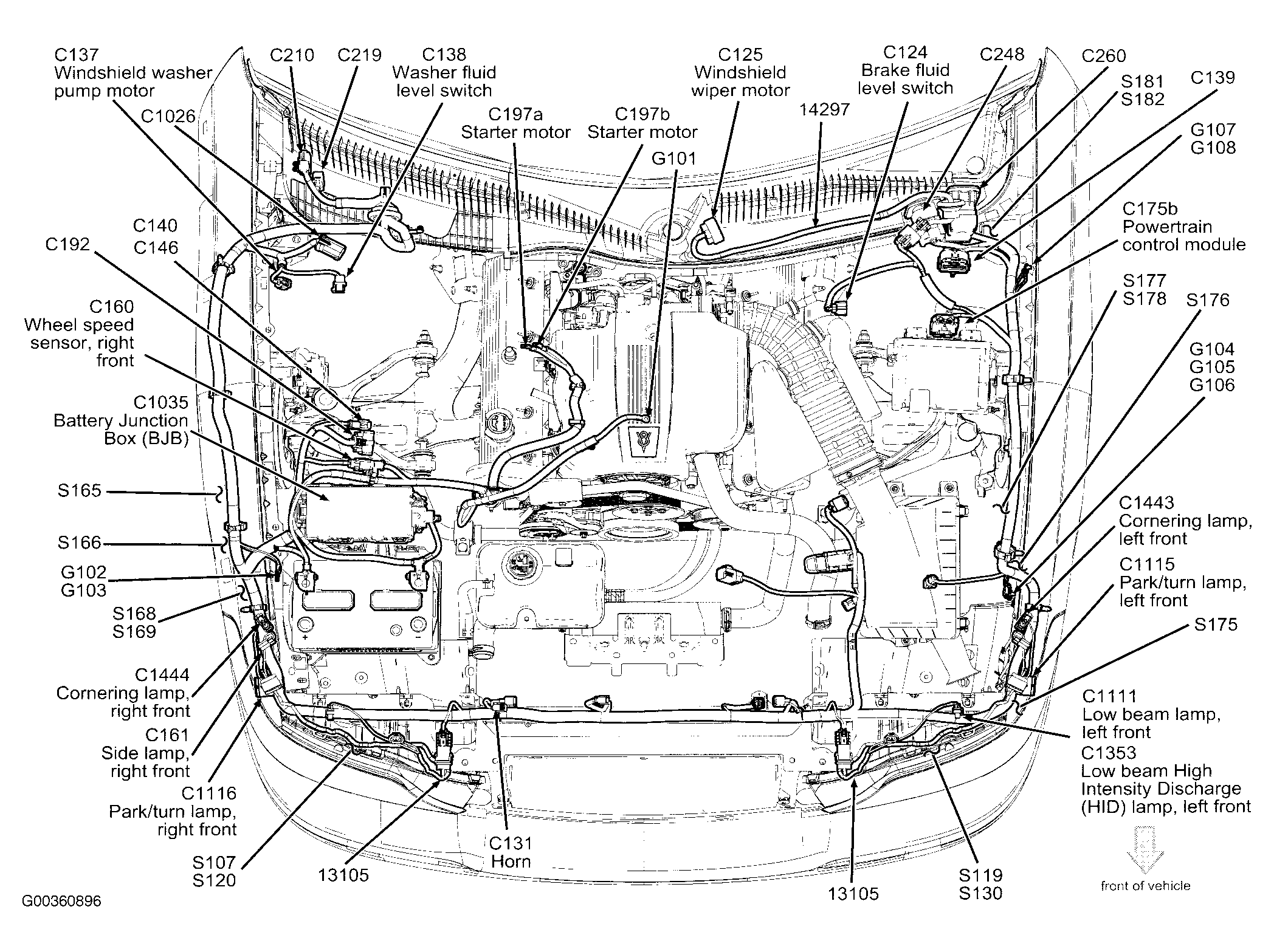

| Battery Junction Box (BJB) | At right of engine compartment. See Figure . |

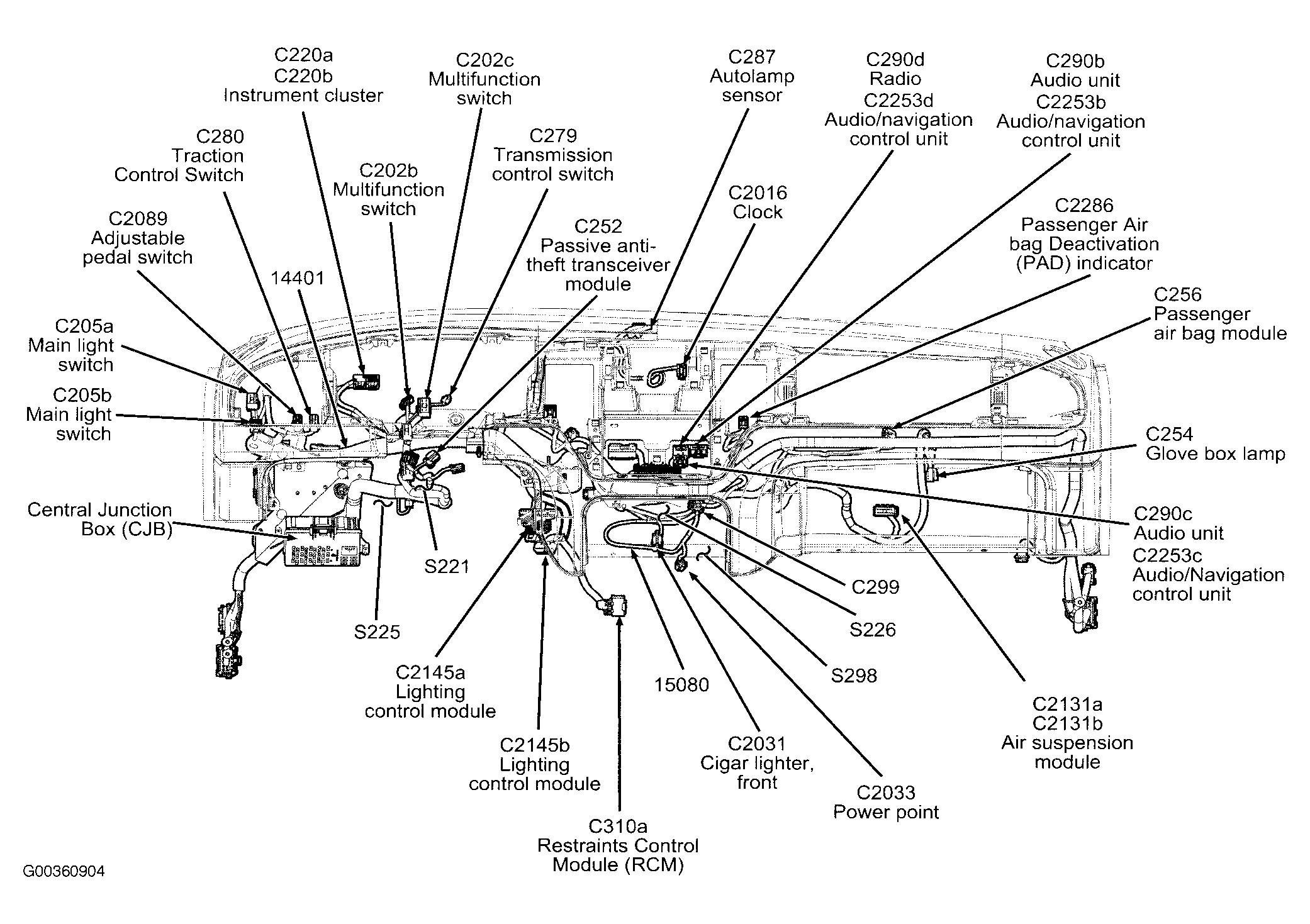

| Central Junction Box | Behind left side of dash, to left of steering column. See Figure . |

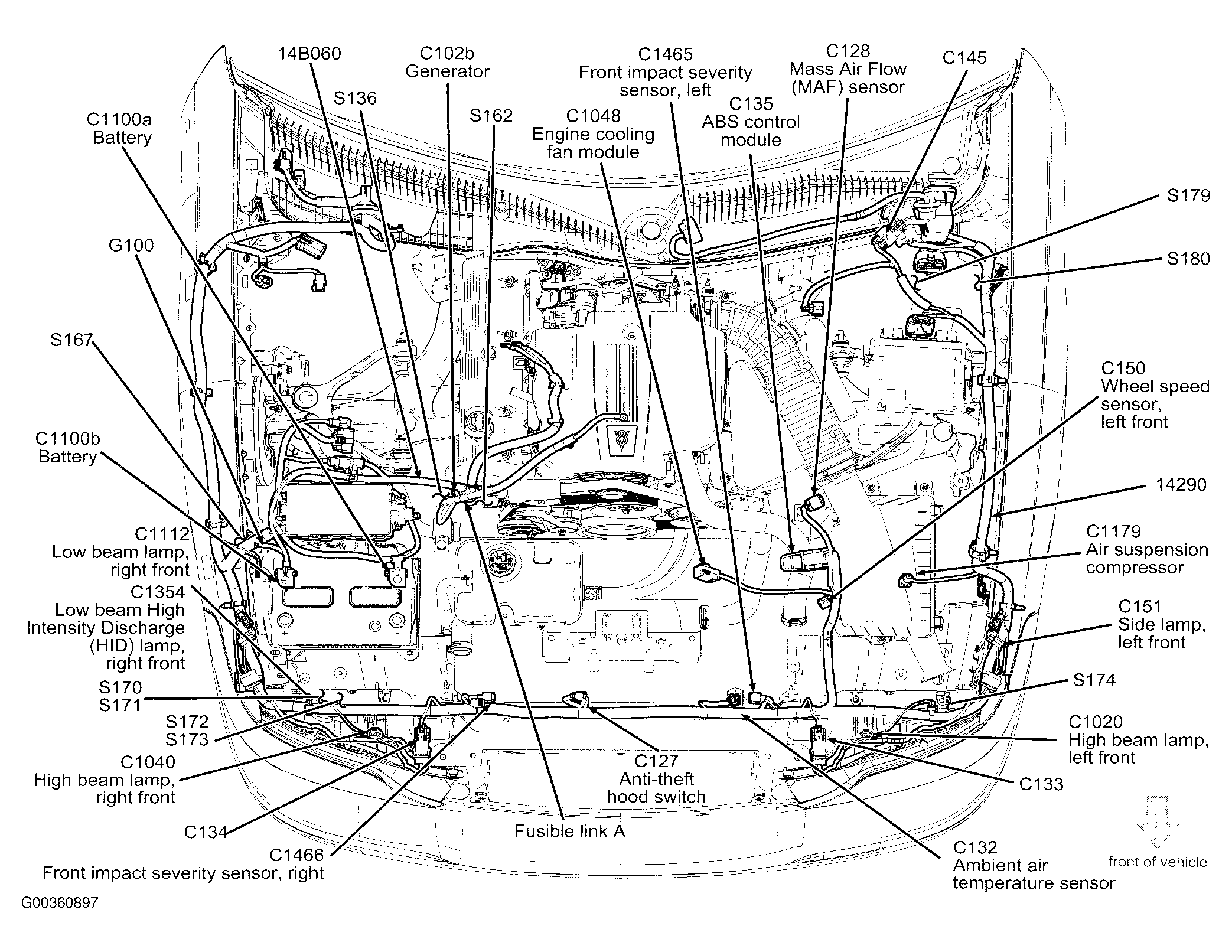

| Fusible Link A | Right front of engine. See Figure . |
| Ground Diode | In battery junction box (BJB). See Figure . |

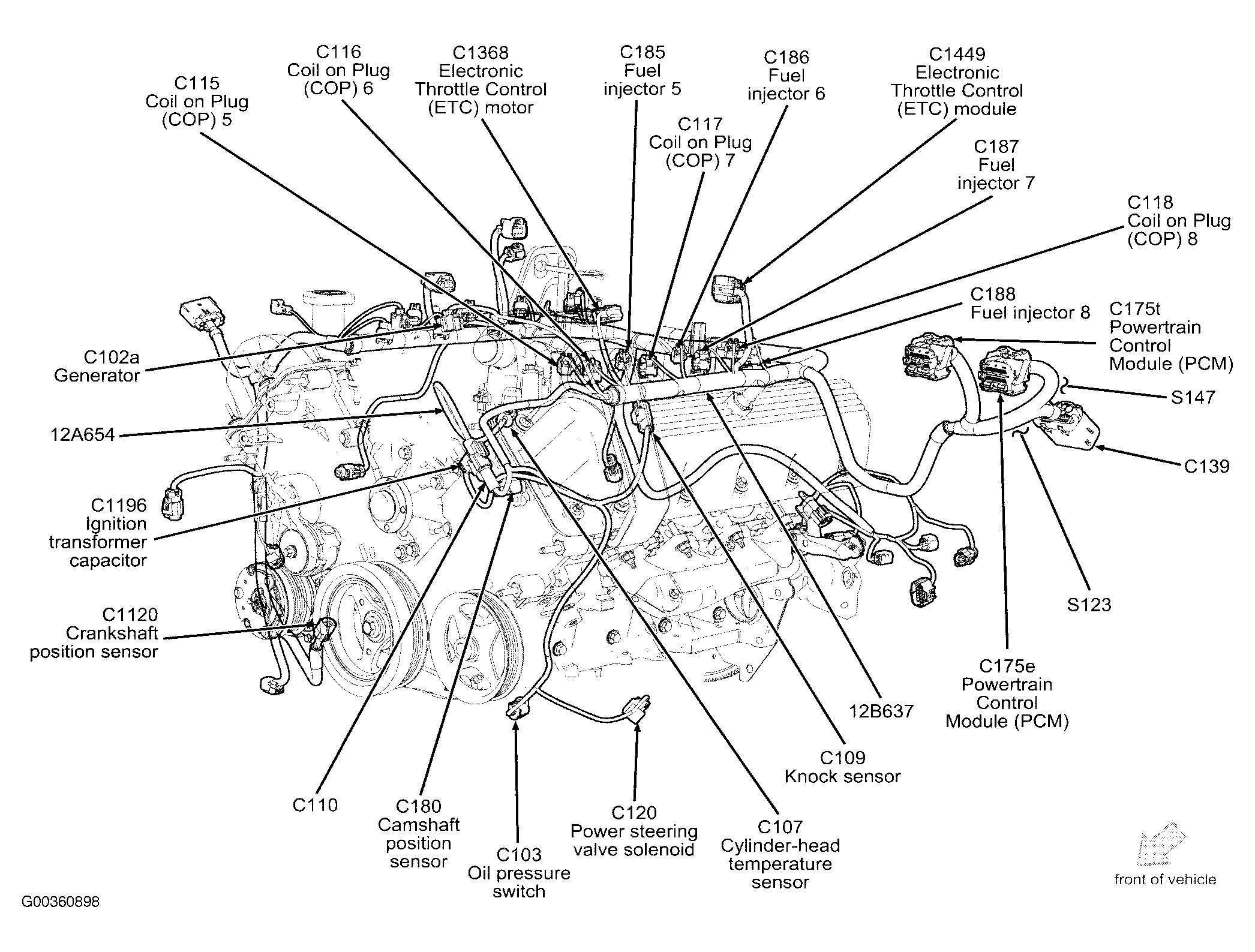

| Ignition Transformer Capacitor | Left front of engine. See Figure . |
| PCM Power Diode | In battery junction Box (BJB). See Figure . |
