Lincoln
>>
2006
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Control Module

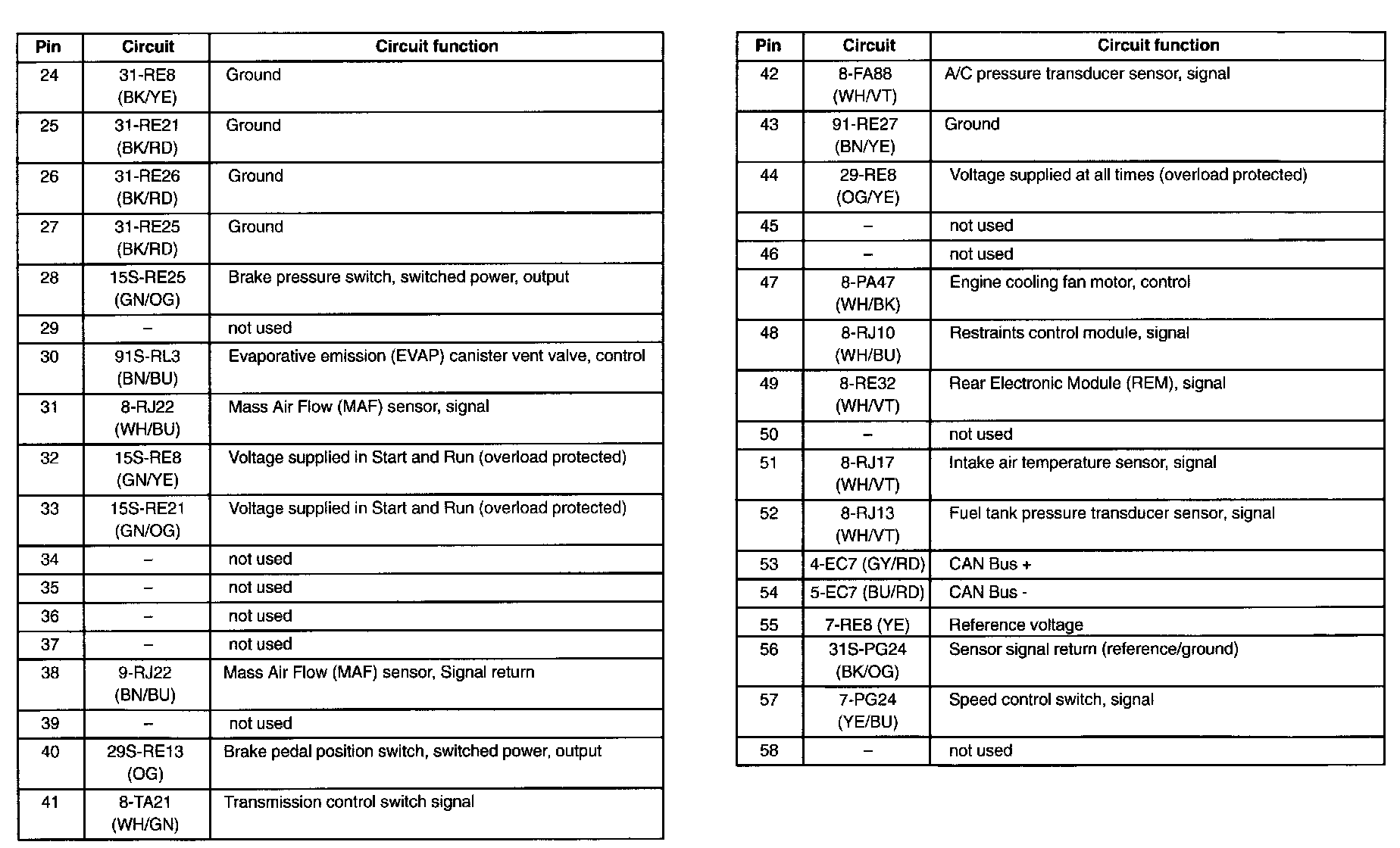

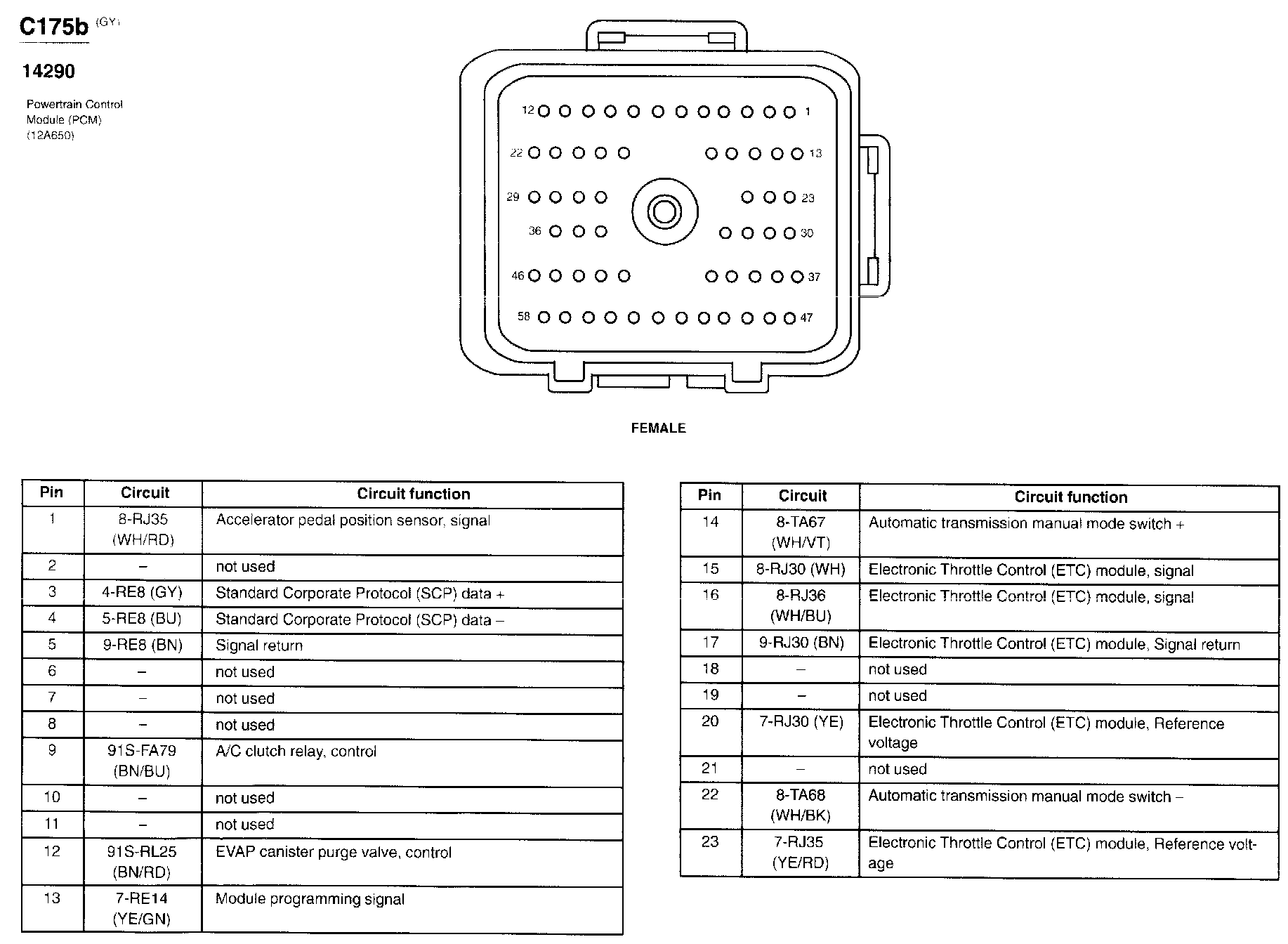

C175b (Part 1):
C175b (Part 2):

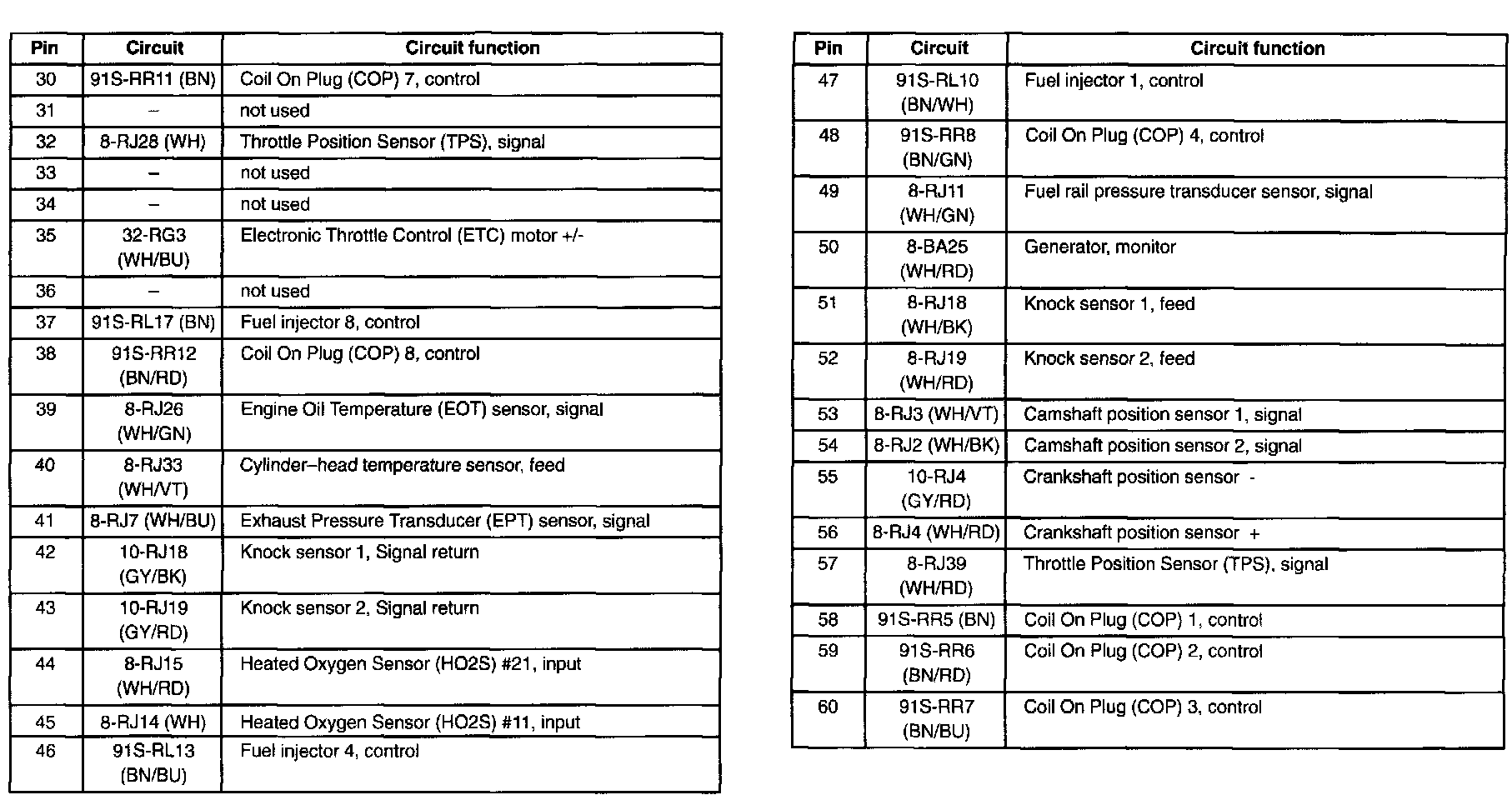

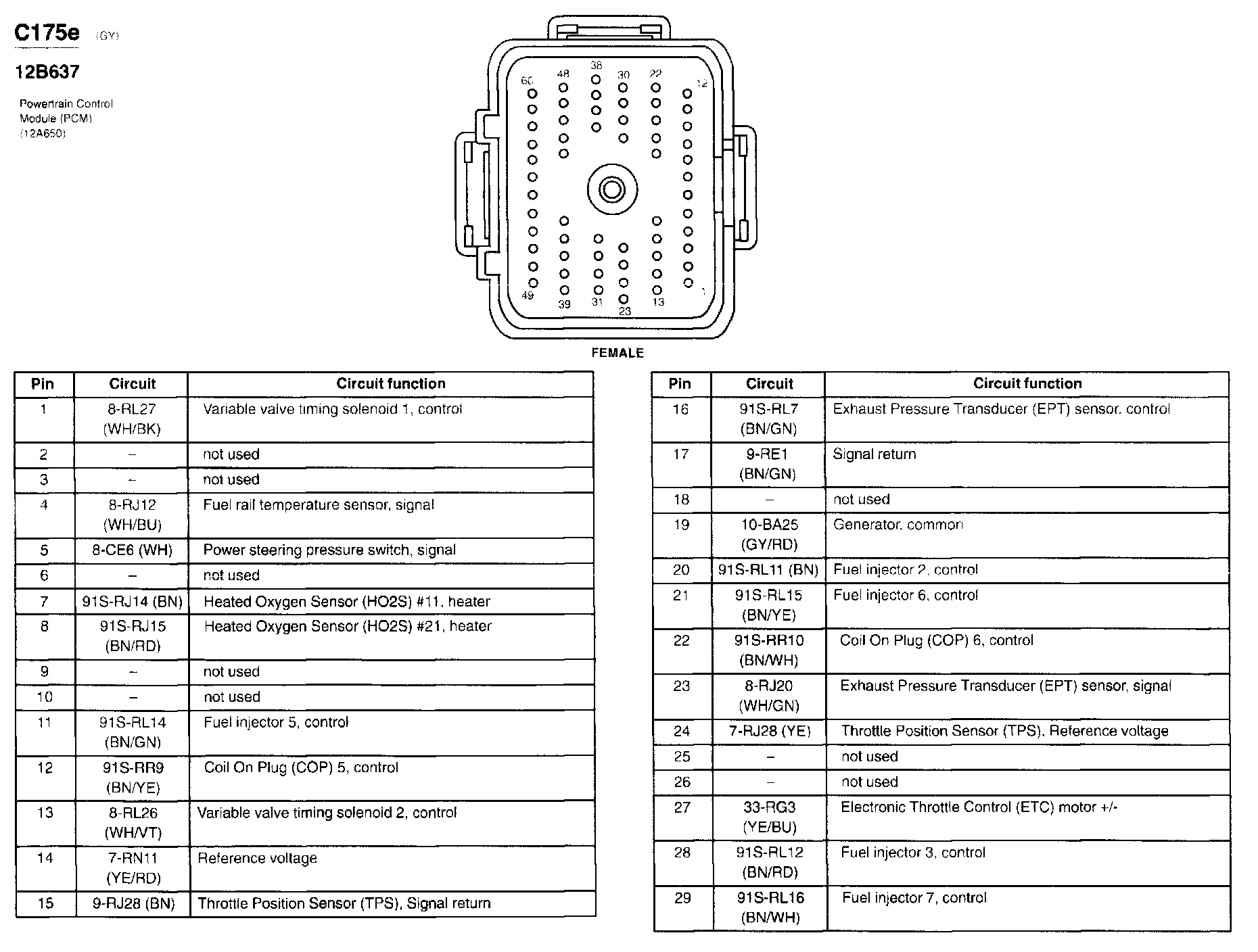

C175e (Part 1):
C175e (Part 2):

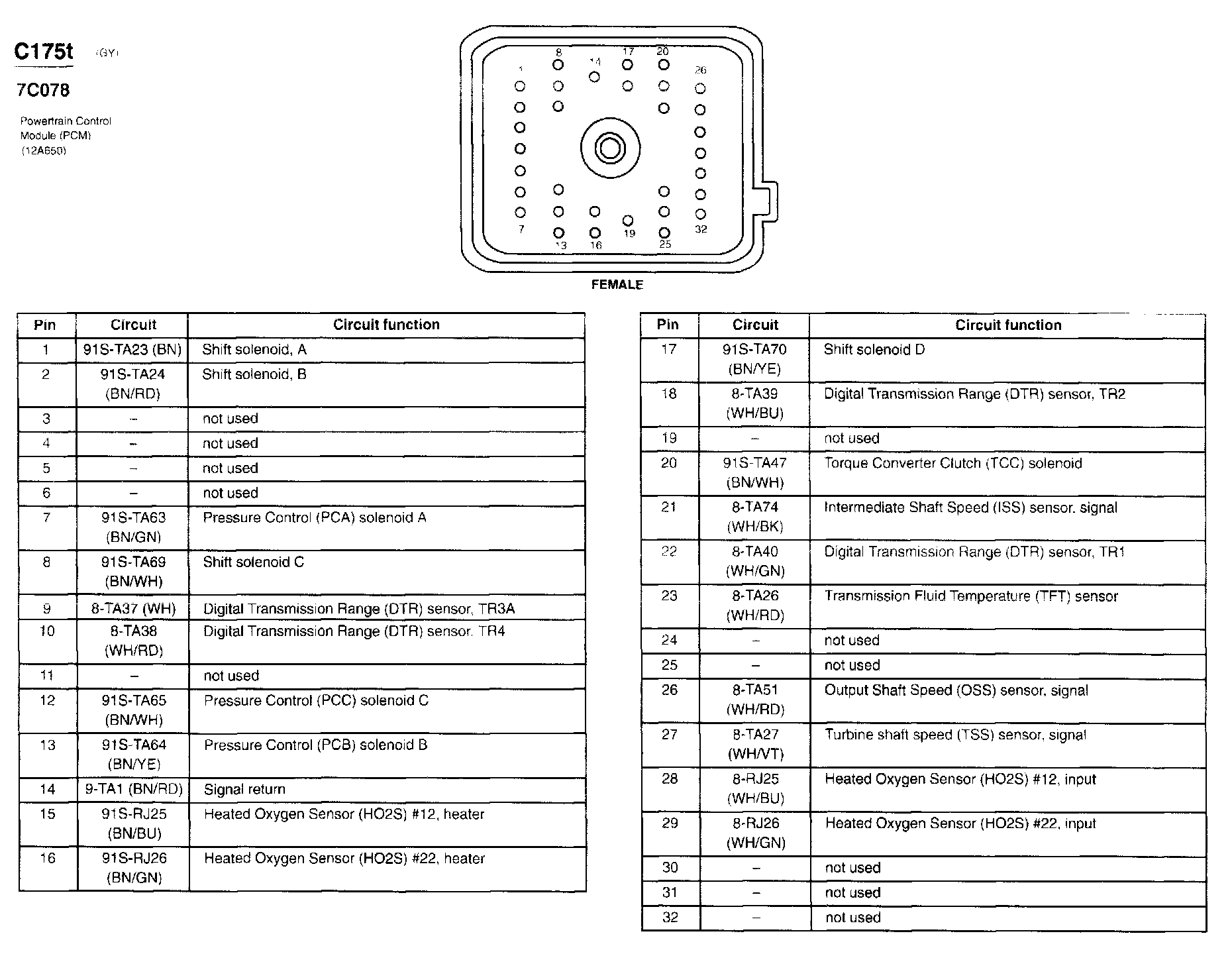

C175t:
