Seat Temperature Control Module
>>
Heated Seat Module, Left Rear
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

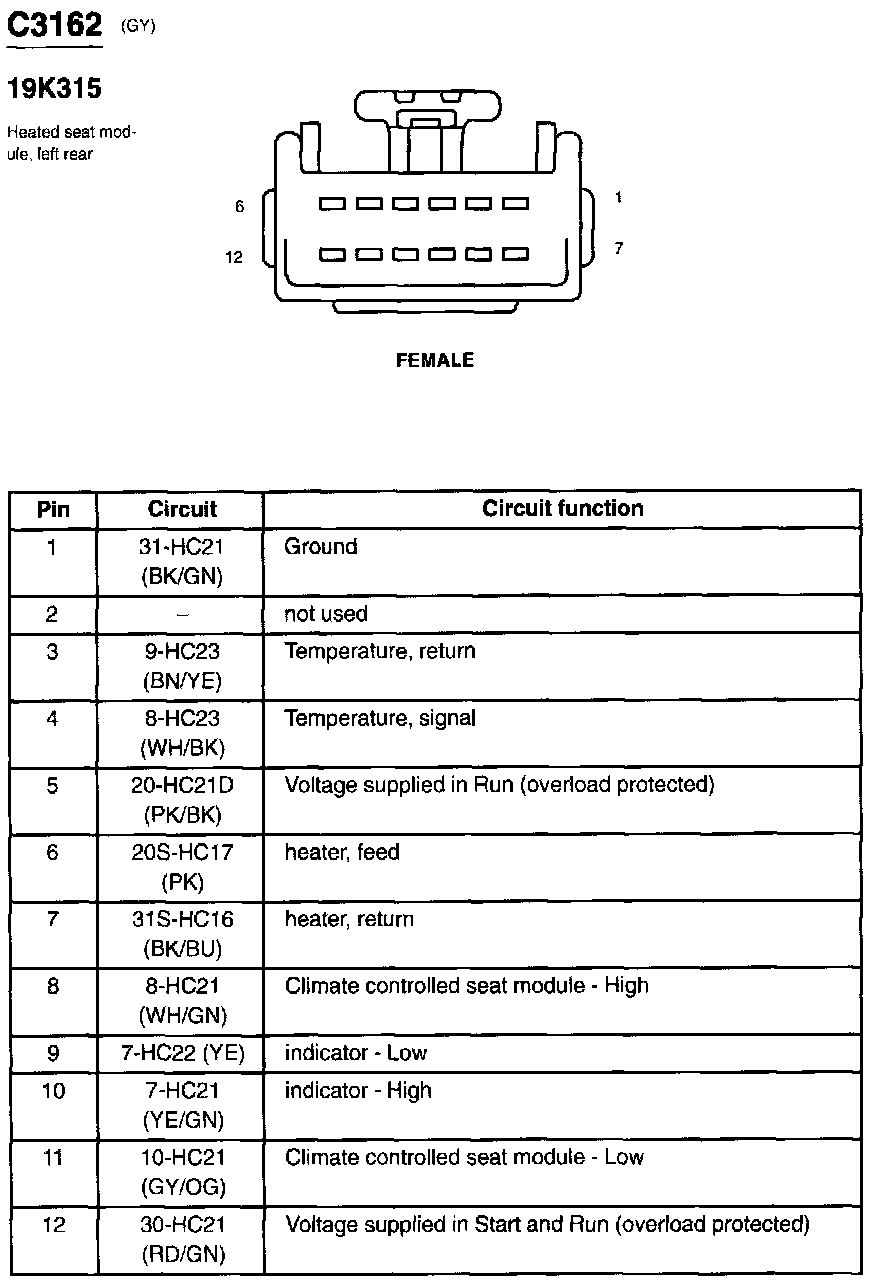

Heated Seat Module, Left Rear
C3162:
