Timing Components

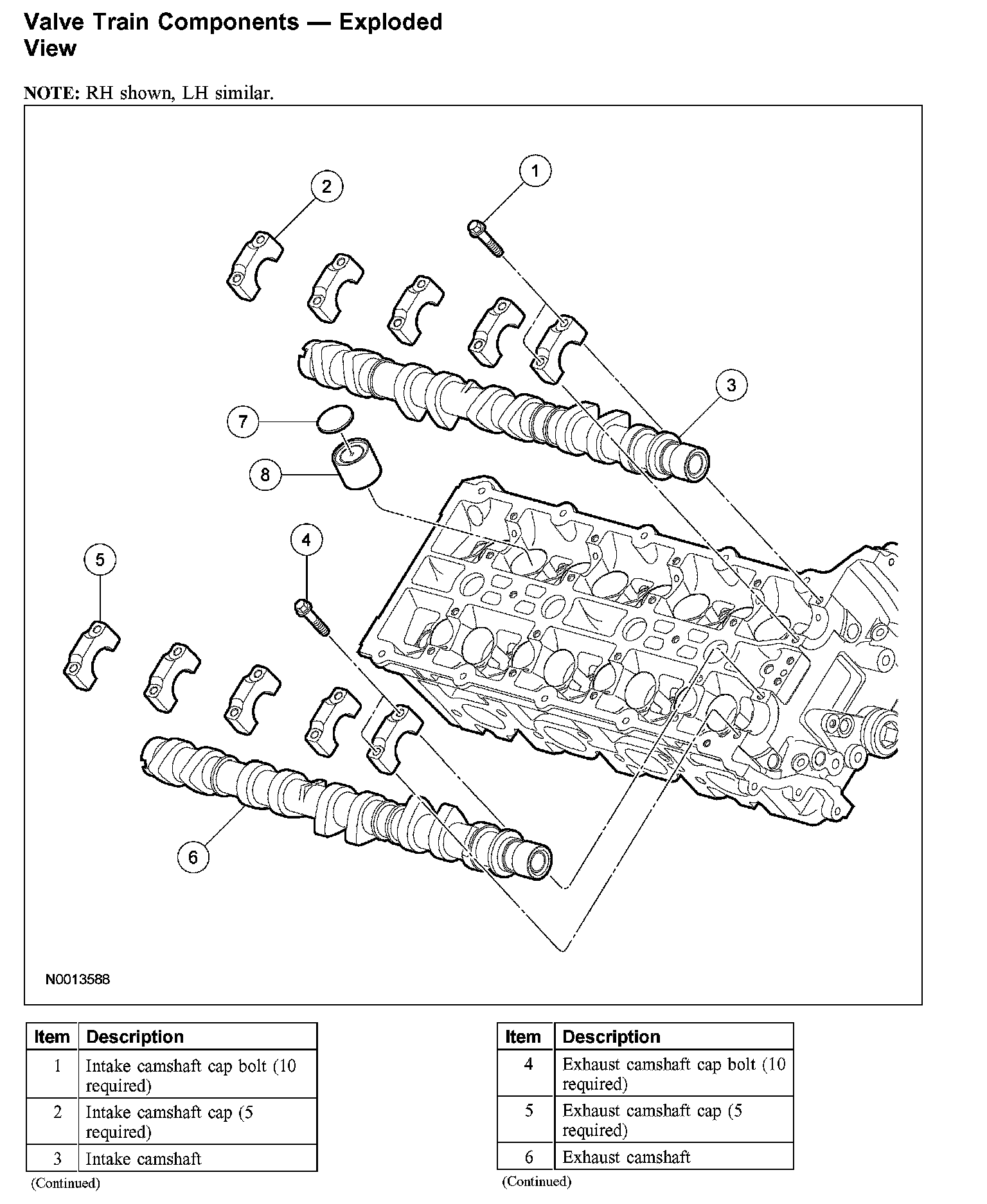

Valve Train Components - Exploded View

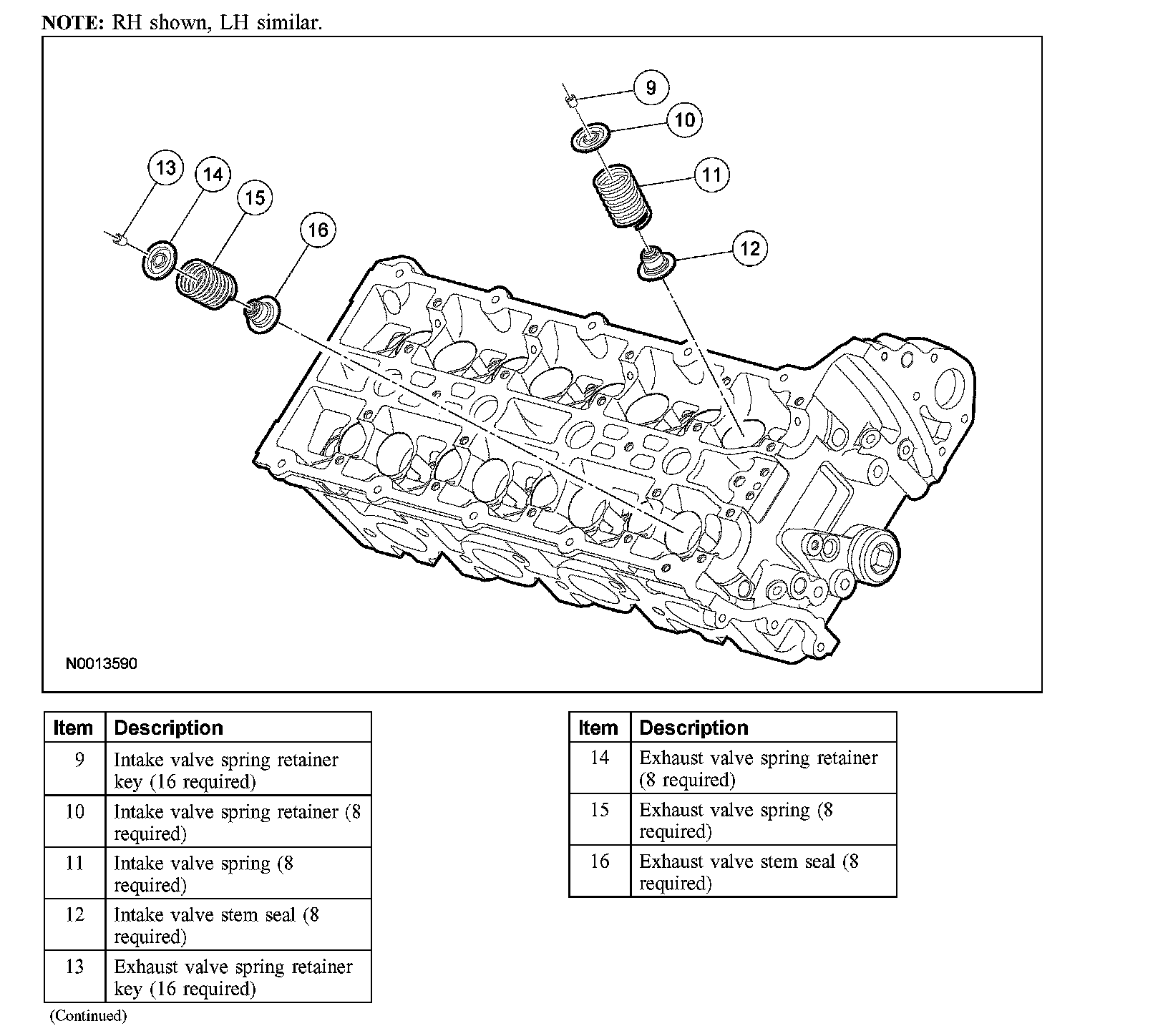

Valve Train Components - Exploded View:




Valve Train Components - Exploded View:




Valve Train Components - Exploded View:
