Front Electronic Module (FEM)

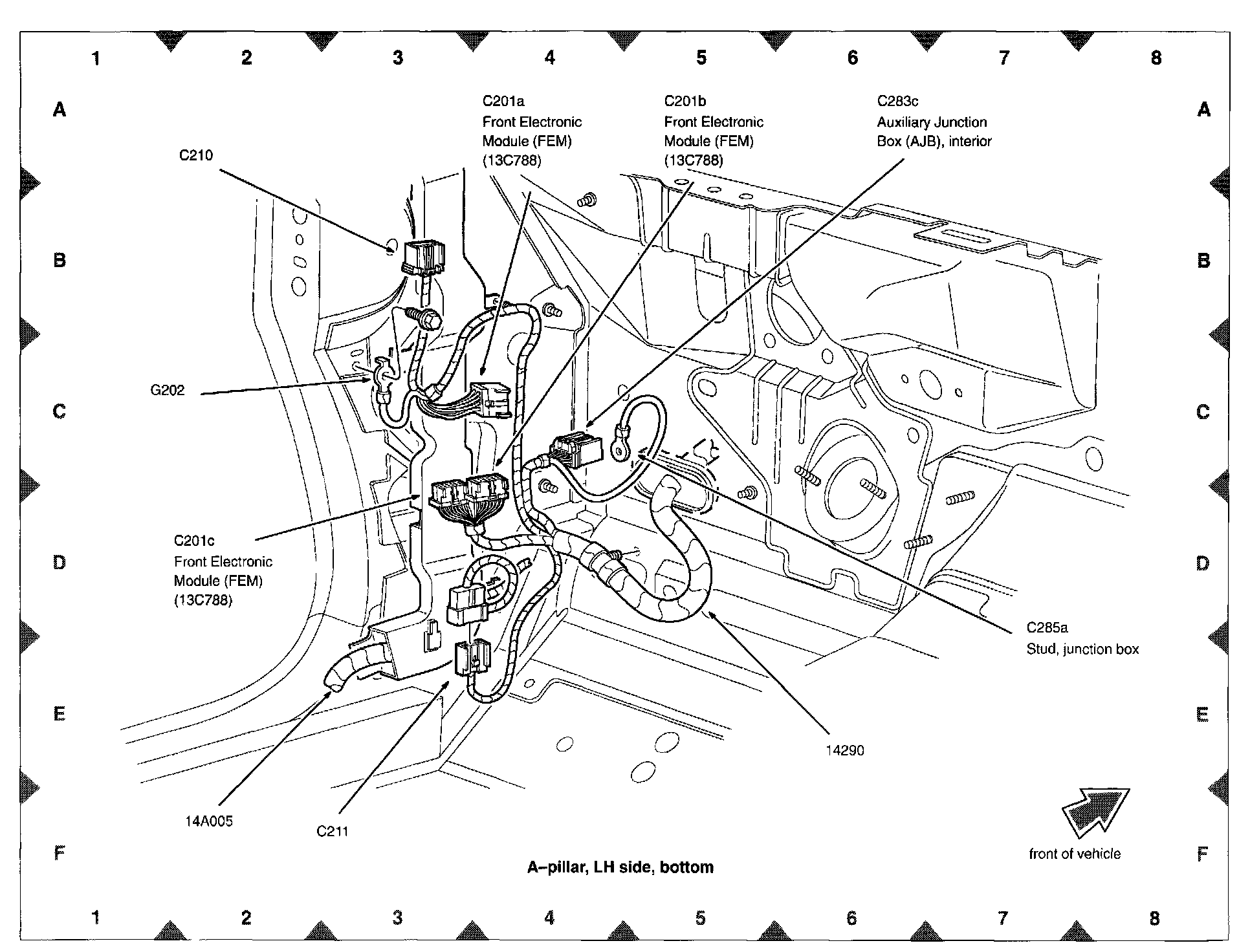

View 151-20 (A-Pillar, LH Side, Bottom):

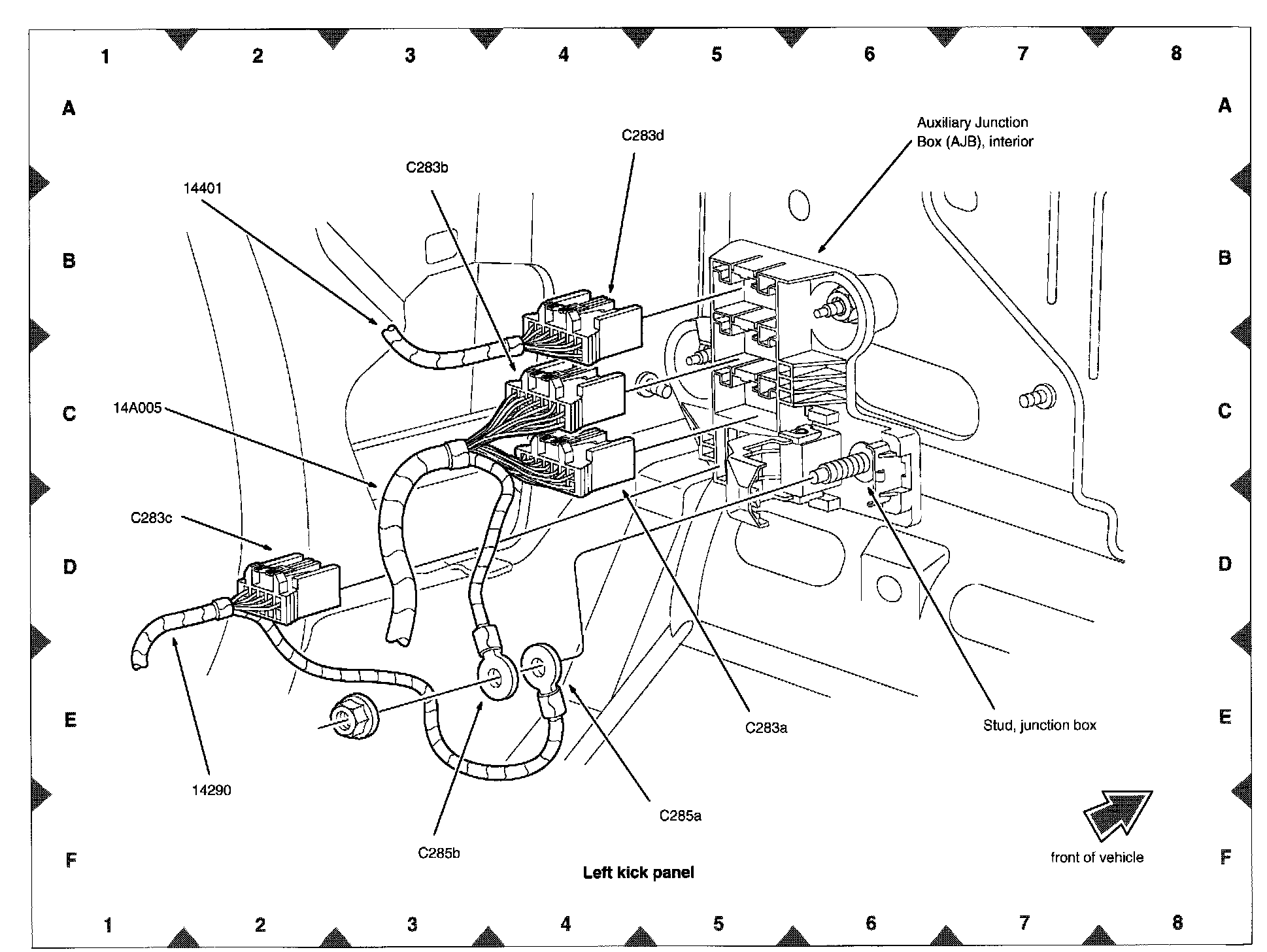

View 151-24 (Left Kick Panel):
