Engine Control Module: Locations

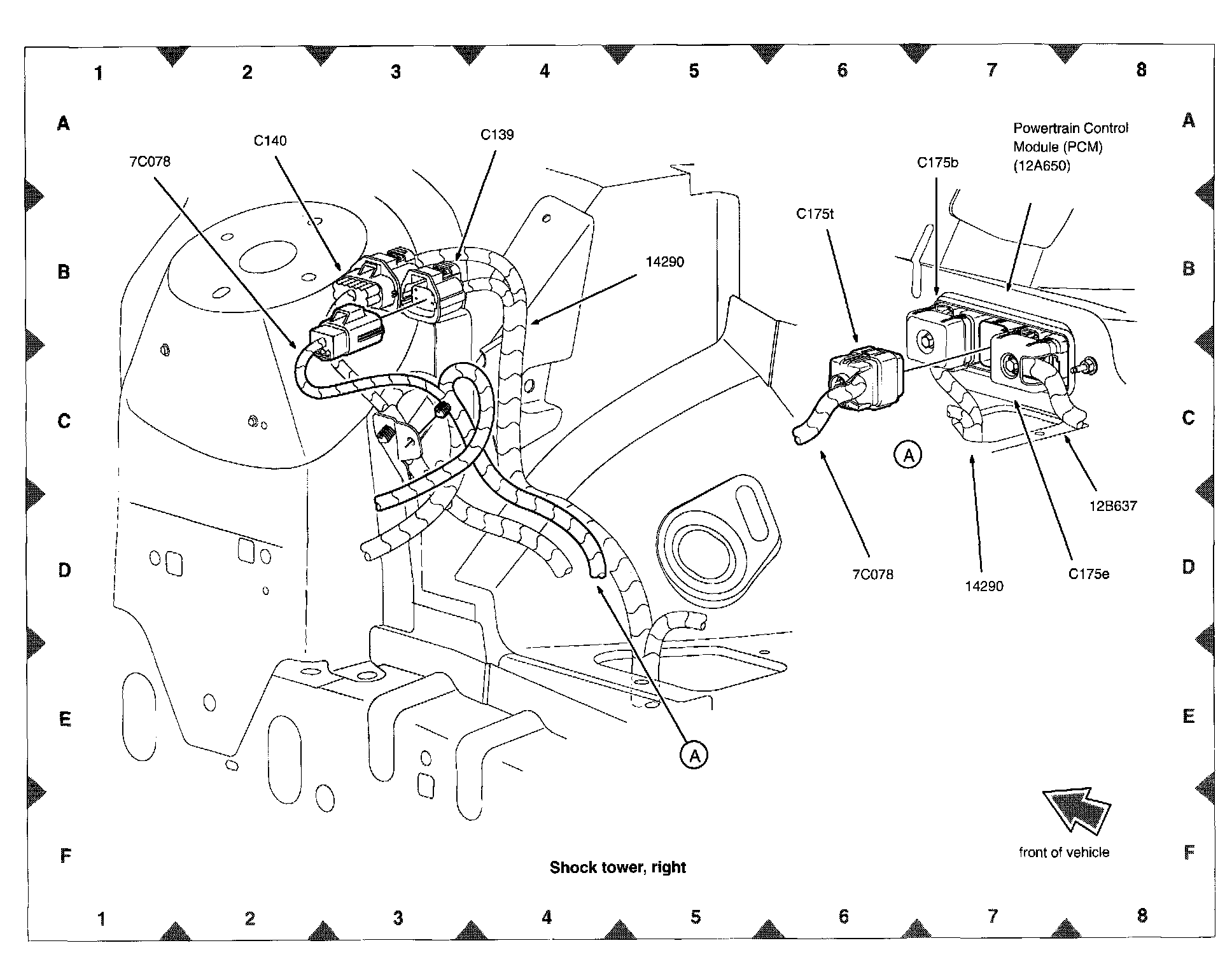

View 151-10 (Shock Tower, Right):

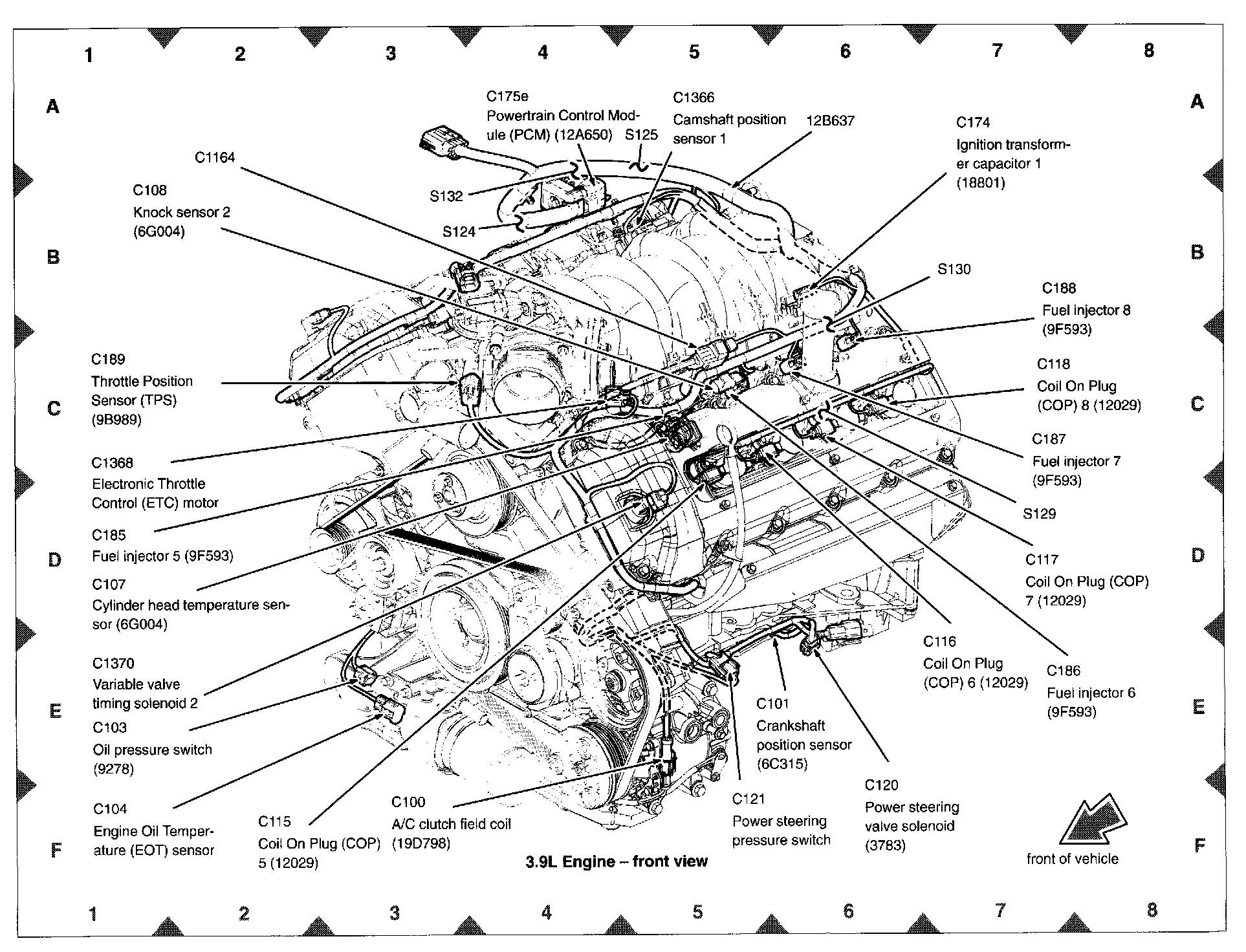

View 151-14 (Engine - Front View):

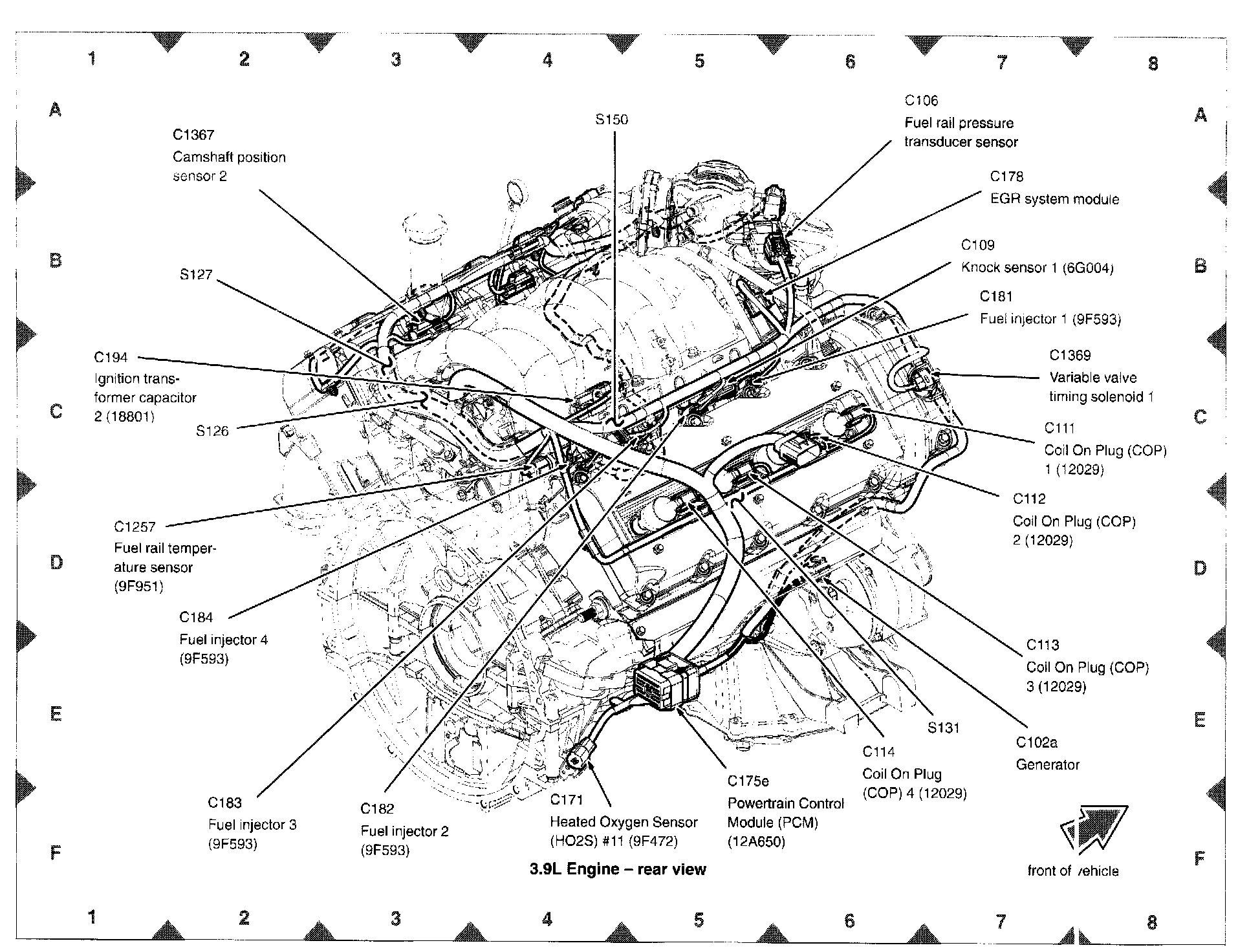

View 151-15 (Engine - Rear View):
