Central Junction Box (CJB)
NOTE:
Central Junction Box (CJB) may also be referred to as passenger compartment fuse panel.
NOTE:

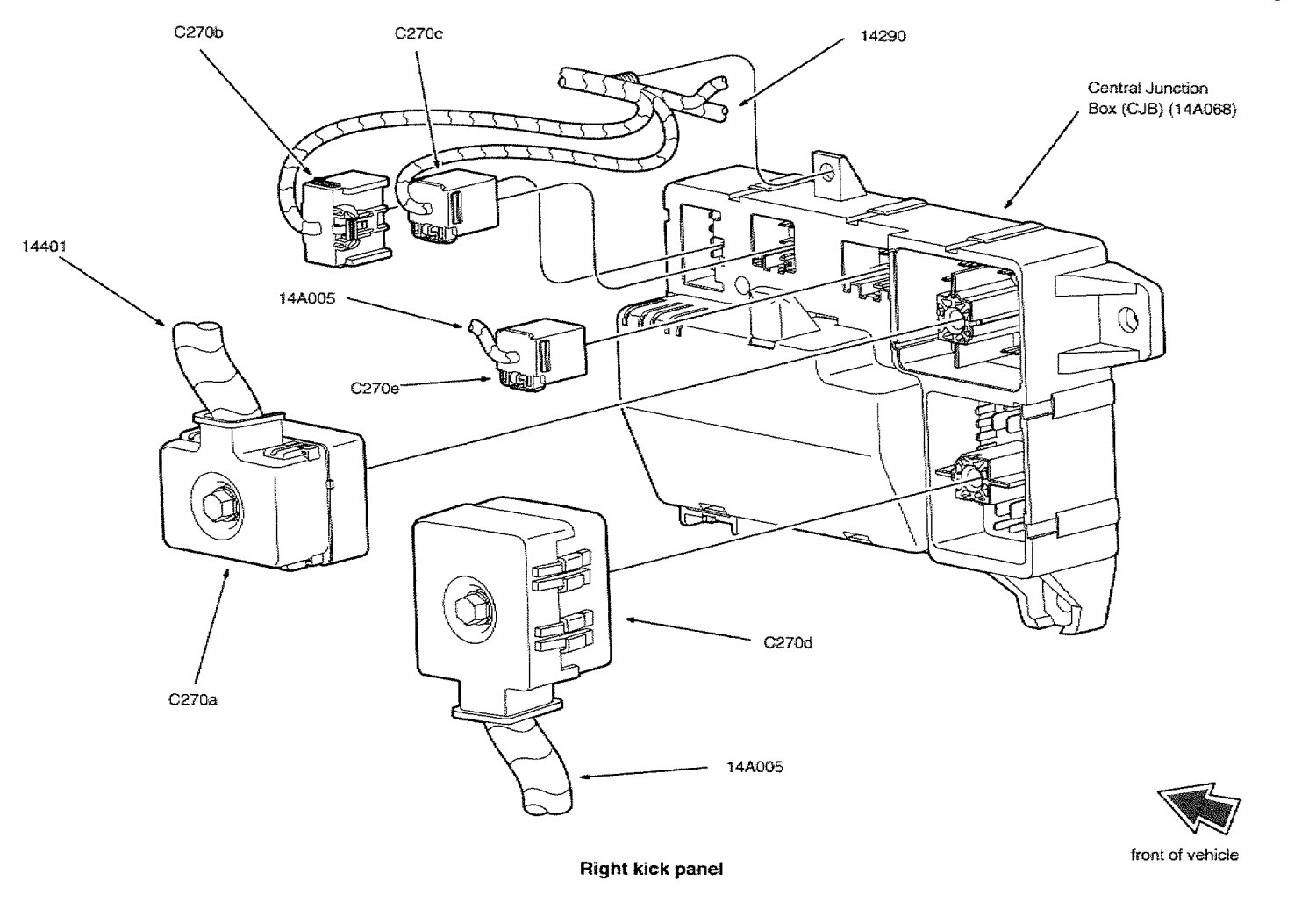

Central Junction Box (CJB) is located behind right side kick panel. See Fig 1.

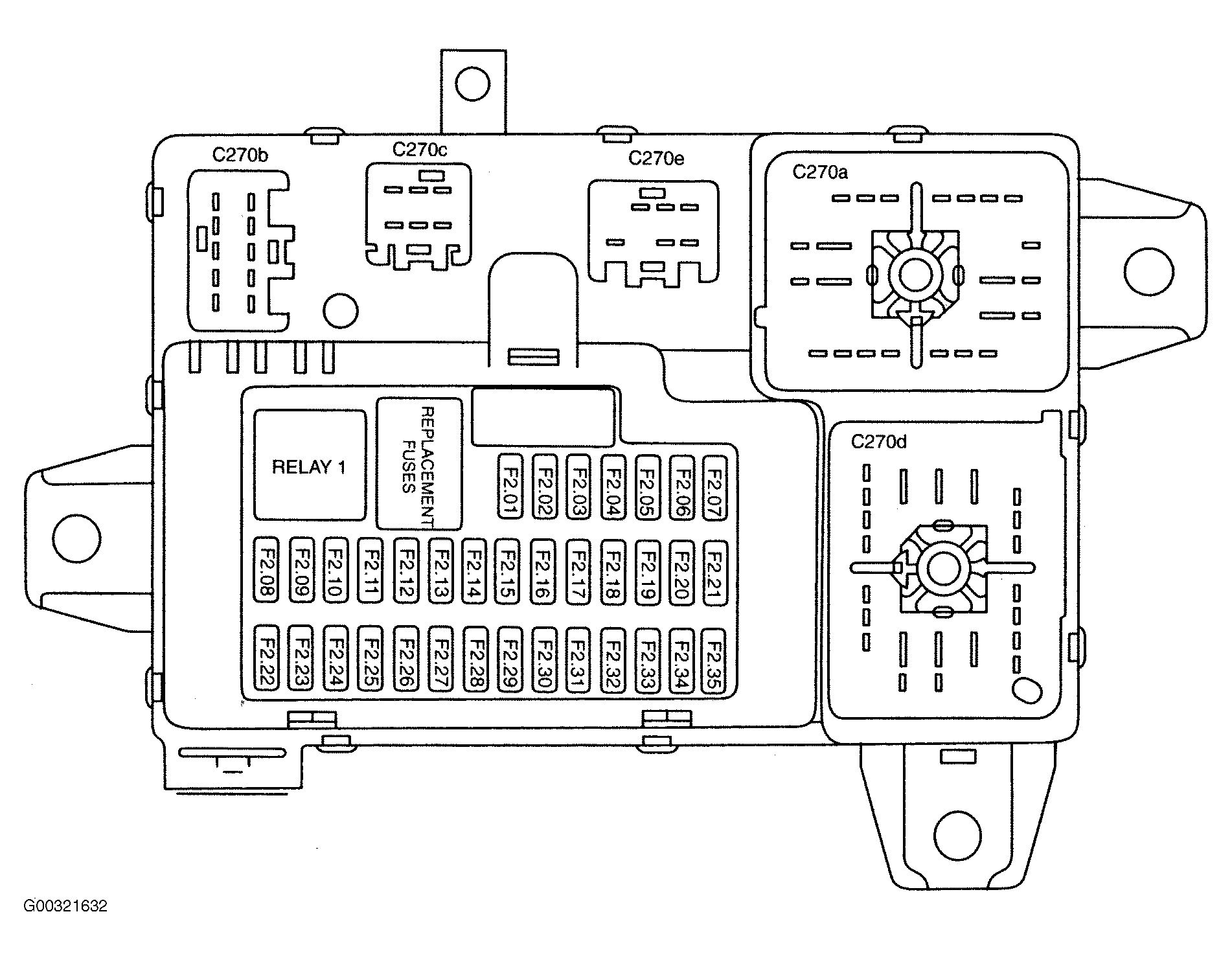

CENTRAL JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F2.01 | 5 | Digital Transmission Range (DTR) sensor (7F293) |
| F2.02 | 5 | Audio unit (18808), Audio/navigation control unit |
| F2.03 | 5 | ABS test connector |
| F2.04 | 5 | PCM power diode, PCM power relay, COPS & Heated Oxygen Sensor (HO2S) relay, Inertia Fuel Shutoff (IFS) switch (9D362), Transmission shift selector, Instrument cluster |
| F2.05 | 10 | Occupant classification sensor module, Restraints control module (14B321) |
| F2.06 | 10 | Data Link Connector (DLC) (14489) |
| F2.07 | 5 | Exterior rear view mirror switch (17B676), Driver Door Module, Auto park brake release switch, Seat adjust switch, driver side front (14A701), Driver seat module (14C718), Powertrain Control Module (PCM) (12A650), Sunload sensor (19E663) |
| F2.08 | 5 | Park/turn lamp, right front (13411), Headlamp, right (13008) |
| F2.09 | 15 | Headlamp, right (13008), High intensity discharge headlamp relay, right |
| F2.10 | 5 | Headlamp, left (13008), Park/turn lamp, left front (13411) |
| F2.11 | 10 | Headlamp, left (13008) |
| F2.12 | 5 | Rain sensor module, Electrochromatic inside mirror unit (17700) |
| F2.13 | 5 | Instrument cluster |
| F2.14 | 5 | Electronic Automatic Temperature Control (EATC) module (19980) |
| F2.15 | 5 | Transmission shift selector, Traction control switch |
| F2.16 | 5 | Heated seat module, left rear, Climate controlled seat module, passenger side, Climate controlled seat module, driver side, Heated seat module, right rear |
| F2.17 | 5 | Instrument cluster |
| F2.18 | 20 | Audio/navigation control unit, Audio unit (18808), Center image amplifier |
| F2.19 | 15 | Instrument cluster |
| F2.20 | 10 | Instrument cluster, Front Electronic Module (FEM) (13C788), Rear Electronic Module (REM) (13B520), Electronic Automatic Temperature Control (EATC) module (19980) |
| F2.21 | 7, 5 | not used |
| F2.22 | 10 | Driver Door Module |
| F2.23 | 10 | Headlamp, right (13008) |
| F2.24 | 5 | Passive anti-theft transceiver module (15607) |
| F2.25 | 15 | Headlamp, left (13008), High intensity discharge headlamp relay, left |
| F2.26 | 5 | Windshield wiper motor (17508) |
| F2.27 | 10 | Audio unit (18808) |
| F2.28 | 5 | not used |
| F2.29 | 5 | Front Electronic Module (FEM) (13C788), Parking Aid Module (PAM) (15K866) |
| F2.30 | 5 | Front Electronic Module (FEM) (13C788) |
| F2.31 | - | not used |
| F2.32 | 20 | Cigar lighter, front (15055) |
| F2.33 | 10 | Front Electronic Module (FEM) (13C788) |
| F2.34 | 10 | not used |
| F2.35 | 5 | Brake pedal position switch (13480) |
