Seat Control Switch - Third Row: Notes

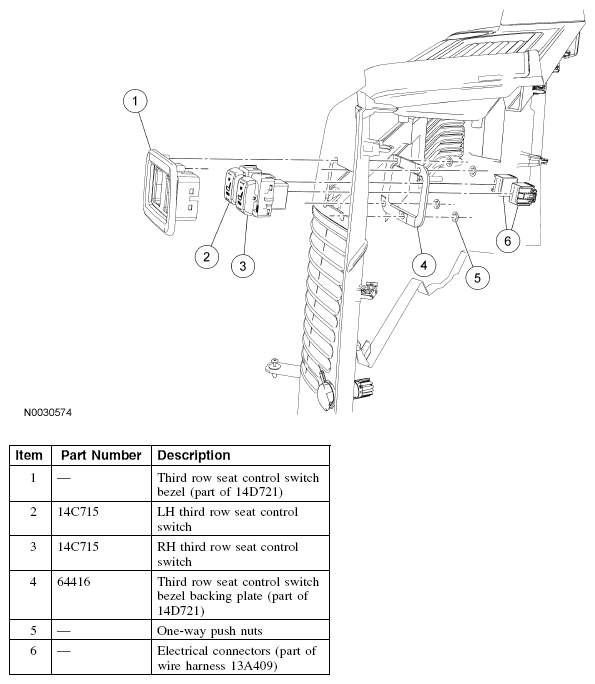

Fig 1: Identifying Exploded View Of Seat Control Switch Components - Third Row
Courtesy of FORD MOTOR CO.
