Intermediate Clutch Assembly: Assembly

  1. Install the intermediate clutch plates, starting with the wave spring then a steel plate and alternating between friction and steel plates, and ending with the pressure plate.

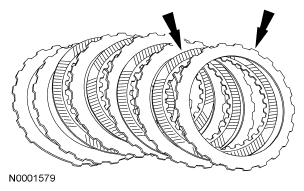

    Fig 1: Locating Intermediate Clutch Plates
    G04627924Courtesy of FORD MOTOR CO.
  2. Install the intermediate clutch plate snap ring.
    Fig 2: Locating Intermediate Clutch Plate Snap Ring
    G04627925Courtesy of FORD MOTOR CO.
  3. Install the bearing race.

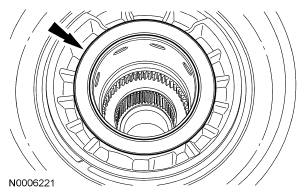

    Fig 3: Locating Bearing Race
    G04627926Courtesy of FORD MOTOR CO.
