Intermediate Clutch Assembly: Disassembly

Remove the bearing race. Clean and inspect for damage.
- If damage is indicated, a new intermediate clutch assembly will be required.

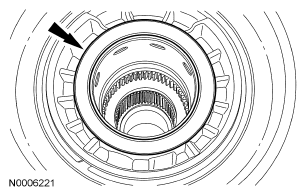

  Fig 1: Locating Bearing Race
  Courtesy of FORD MOTOR CO.
Remove the intermediate clutch plate snap ring.

Fig 2: Locating Intermediate Clutch Plate Snap Ring
Courtesy of FORD MOTOR CO.

NOTE: Inspect the intermediate clutch drum/center support, friction plates and steel plates for damage. No new components are installed at this time. If new components are required, a new intermediate clutch/center support assembly is required.

Remove the intermediate clutch plates, steel and friction. Inspect the steel and friction plates for damage. If damage is indicated, a new intermediate clutch assembly will be required.
- If no damage is indicated, the intermediate clutch can be re-assembled.

  Fig 3: Locating Intermediate Clutch Plates
  Courtesy of FORD MOTOR CO.
