Intermediate Clutch Assembly: Notes

ITEM SPECIFICATION

Item Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP MERCON® SP

Intermediate Clutch Assembly (C Clutch)

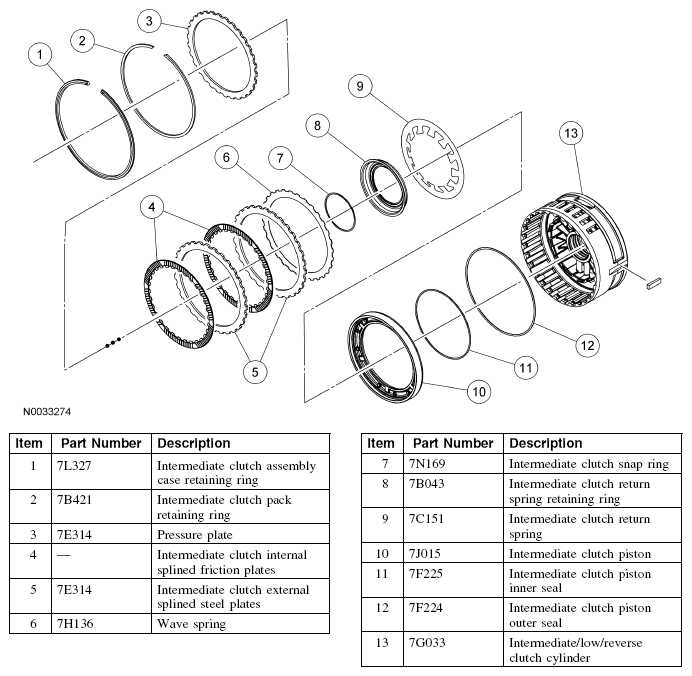

Fig 1: Identifying Clutch Assembly Components (C Clutch)
G04627920Courtesy of FORD MOTOR CO.
