Pump Assembly: Disassembly

Remove the front pump washer.

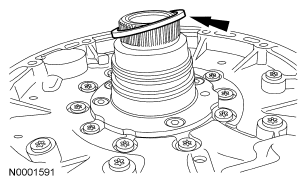

Fig 1: Locating Front Pump Washer
Courtesy of FORD MOTOR CO.
Remove and discard the front pump O-ring seal.

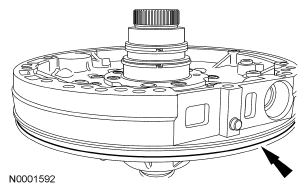

Fig 2: Locating Front Pump O-Ring Seal
Courtesy of FORD MOTOR CO.
Remove and discard the front pump seals.

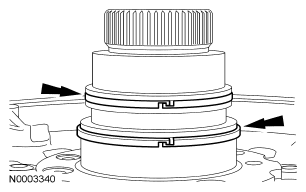

Fig 3: Locating Front Pump Seals
Courtesy of FORD MOTOR CO.
Remove the 11 bolts and separate the pump control body from the pump body.

Fig 4: Locating Pump Control Body Bolts
Courtesy of FORD MOTOR CO.
Inspect the pump body outer seal for damage. If damage is indicated a new pump assembly will be required.

Fig 5: Locating Pump Body Outer Seal
Courtesy of FORD MOTOR CO.
Remove and inspect the inner and the outer pump gears.
- Clean all pump parts in solvent.
- Dry the parts with compressed air.
- Inspect the pump gears, faces, gear teeth, pump housing and mating surfaces for damage or scoring.
- Install a new pump if any of the parts are damaged or worn.

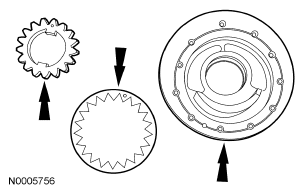

  Fig 6: Locating Inner & Outer Pump Gears
  Courtesy of FORD MOTOR CO.
