Engine Ignition Components - Exploded View

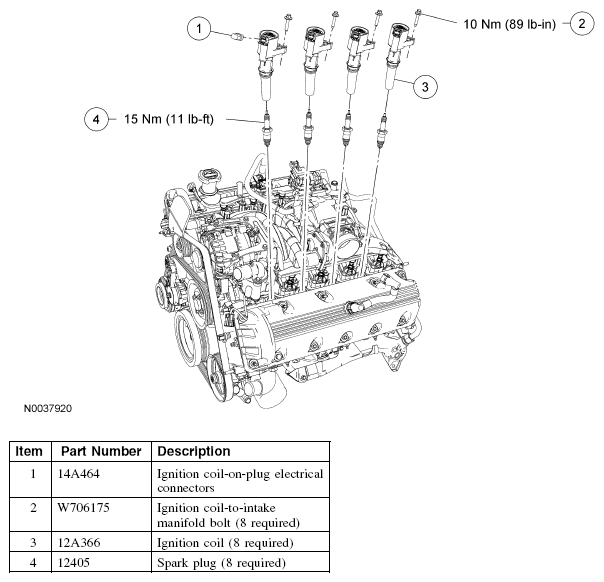

Fig 1: Exploded View Of Engine Ignition Components With Torque Specification
G04705853Courtesy of FORD MOTOR CO.
