Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

POWERTRAIN CONTROL MODULE CONNECTOR PINS AND CIRCUITS REFERENCE

Vehicle	Connector	Pin	Circuit
E-Series 4.6L, E-Series 5.4L, Explorer, Mountaineer, Mustang	170 Pin	E45	CMP
	170 Pin	B35, B36	VPWR
E-Series 6.8L, F-Super Duty	170 Pin	E45	CMP
E-Series 6.8L, F-Super Duty	170 Pin	B35, B36, T39	VPWR
Expedition, F-150, Mark LT, Navigator	190 Pin	E45	CMP
Expedition, F-150, Mark LT, Navigator	190 Pin	B51, B52, B53	VPWR
Freestar/Monterey, Ford GT, Ranger, Taurus	104 Pin	85	CMP
Freestar/Monterey, Ford GT, Ranger, Taurus	104 Pin	71, 97	VPWR
Fusion, Milan, Zephyr	140 Pin	E45	CMP
Fusion, Milan, Zephyr	140 Pin	B51, B52	VPWR
LS	150 (60-32-58) Pin	E53	CMP
LS	150 (60-32-58) Pin	B32, B33	VPWR
All other vehicles	150 (50-50-50) Pin	E25	CMP
All other vehicles	150 (50-50-50) Pin	B35, B36	VPWR

Fig 1: Identifying Camshaft Position Sensor Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

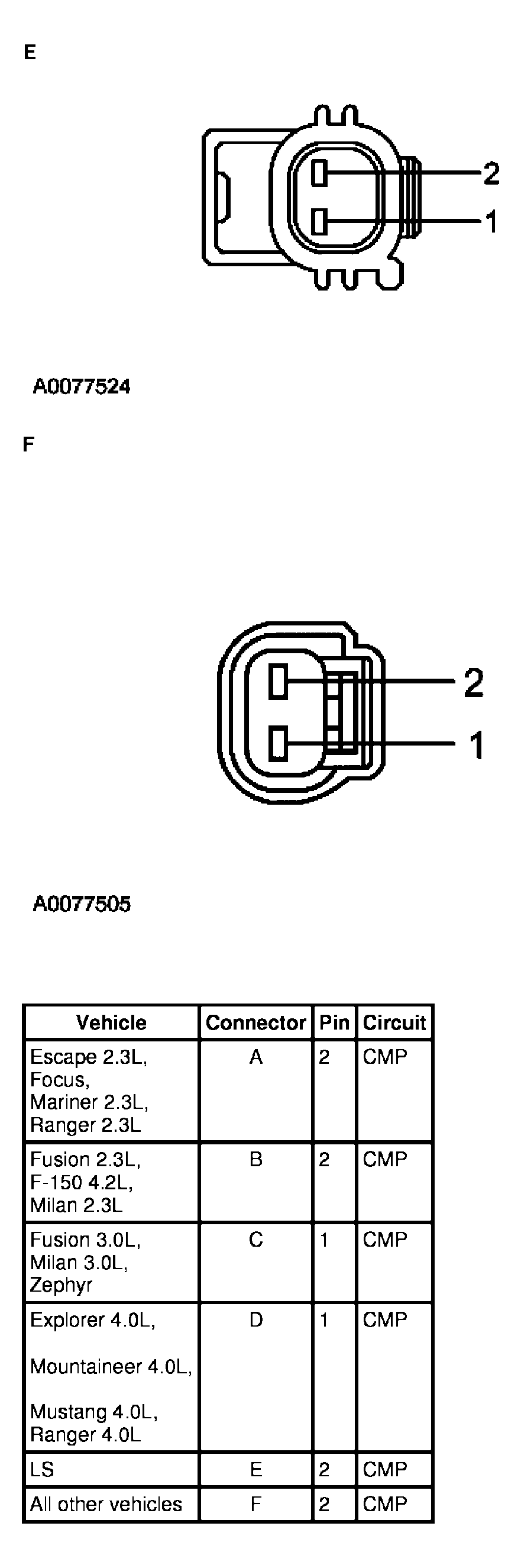

Fig 2: Identifying Camshaft Position Sensor Connector (2 Of 2)

Courtesy of FORD MOTOR CO.
