Accelerator Pedal - Fixed: Notes

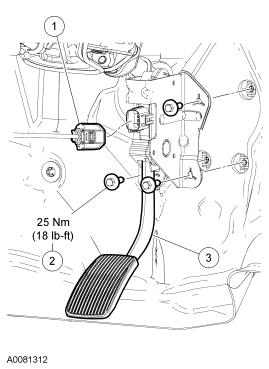

Fig 1: View Of Accelerator Pedal Fixed
GF0004242Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Accelerator pedal electrical connector
2 W709356 Accelerator pedal assembly bolts (3 required)
3 9F836 Accelerator pedal assembly
