Seat - Front, 60 Percent: Notes
NOTE:
For torque specifications and torque sequence, refer to the procedure steps.

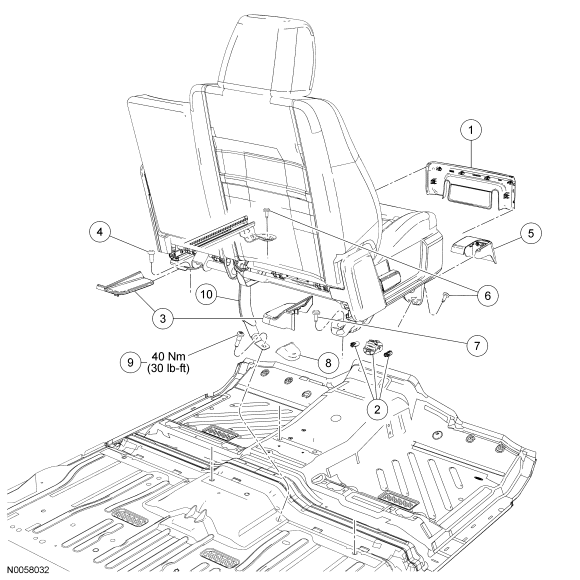

| Item | Part Number | Description |
|---|---|---|
| 1 | 62184 | Front seat cushion panel shield |
| 2 | - | Electrical connectors (part of 14A699) |
| 3 | 618D48 | Seat-to-floor rear bolt covers (2 required) |
| 4 | W710482 | Seat-to-floor rear inboard bolt |
| 5 | 618D48 | Seat-to-floor front bolt cover |
| 6 | W708564 | Seat-to-floor front bolts (2 required) |
| 7 | W708564 | Seat-to-floor rear outboard bolt |
| 8 | - | Center seat safety belt buckle bolt cover |
| 9 | - | Center seat safety belt buckle bolt (part of 611B60) |
| 10 | 611B60 | Center seat safety belt buckle |
