Floor Shifter Connector

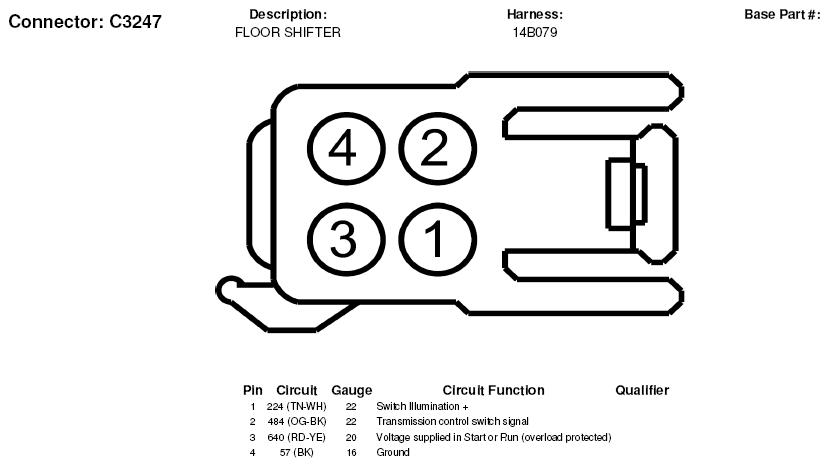

Fig 1: Floor Shifter Connector End View (C3247)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
