EVAP Canister Vent Control Connector

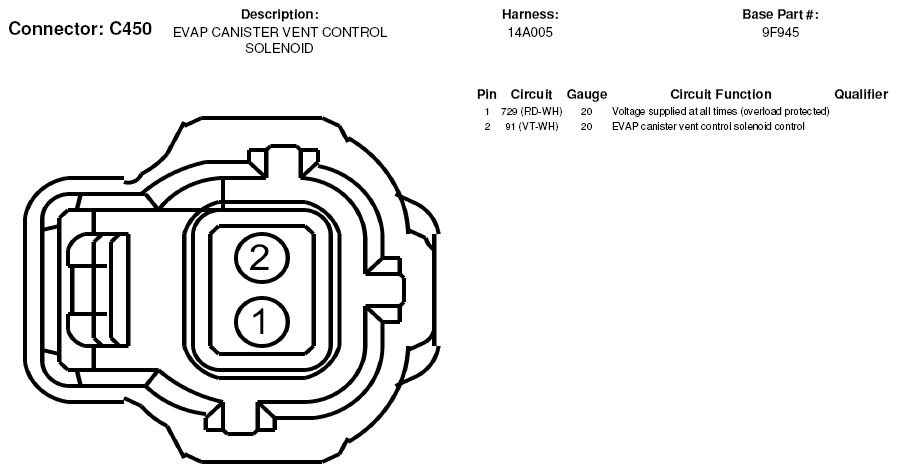

Fig 1: EVAP Canister Vent Control Connector End View (C450)
G05179192Courtesy of FORD MOTOR CO.
