Variable Camshaft Timing (VCT) Oil Control Solenoid: Notes

NOTE: LH shown, RH similar.

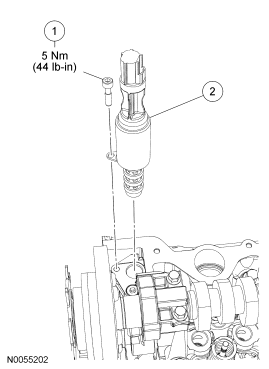

Fig 1: Exploded View Of Variable Camshaft Timing VCT Oil Control Solenoid With Torque Specifications
GF0000712Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6C260 Variable camshaft timing (VCT) oil control solenoid bolt
2 6C297 VCT oil control solenoid
