Horn Switch Connectors

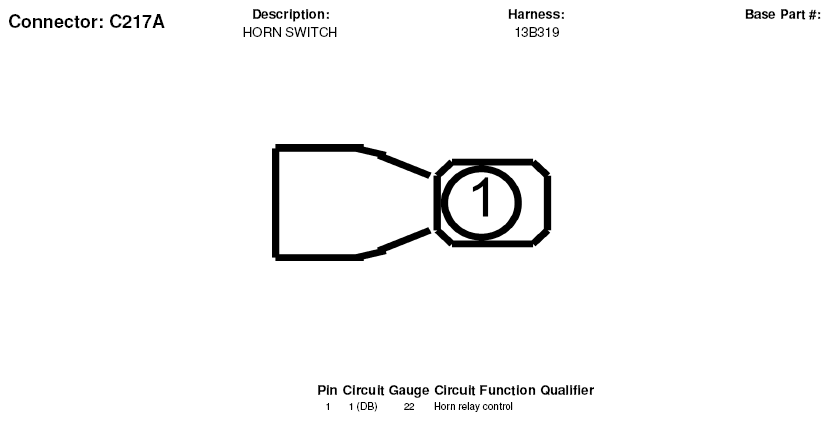

Fig 1: Horn Switch Connector End View (C217A)
G05179110Courtesy of FORD MOTOR CO.

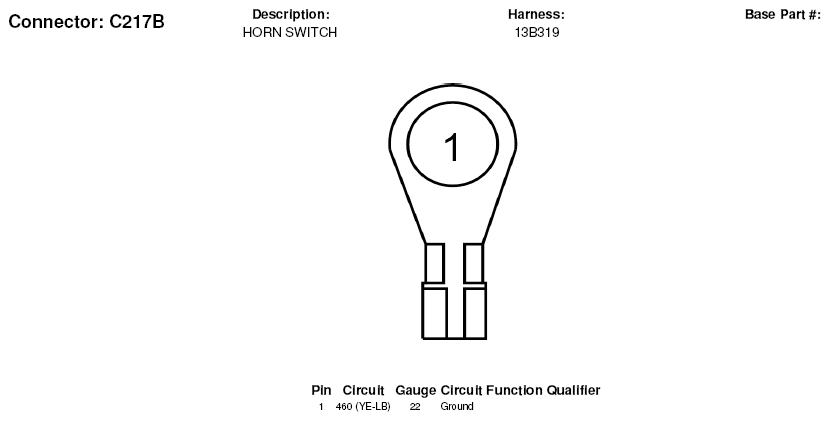

Fig 2: Horn Switch Connector End View (C217B)
G05179111Courtesy of FORD MOTOR CO.
