Smart Junction Box (SJB): Notes

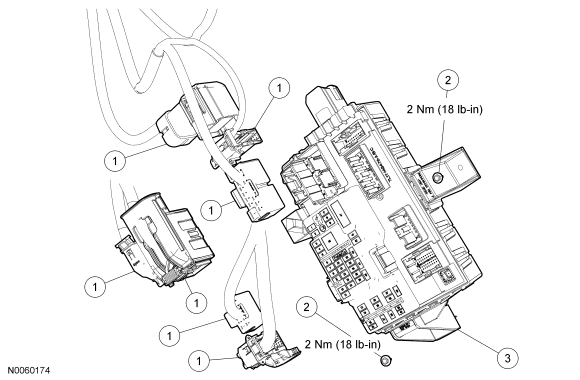

Fig 1: Exploded View Of Smart Junction Box SJB With Torque Specifications
GF0023578Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Electrical connectors (part of 14A005)
2 W706287 - S901 SJB bolts (2 required)
3 14B207 SJB
