Audio Control Switch / Climate Control Switch Connector

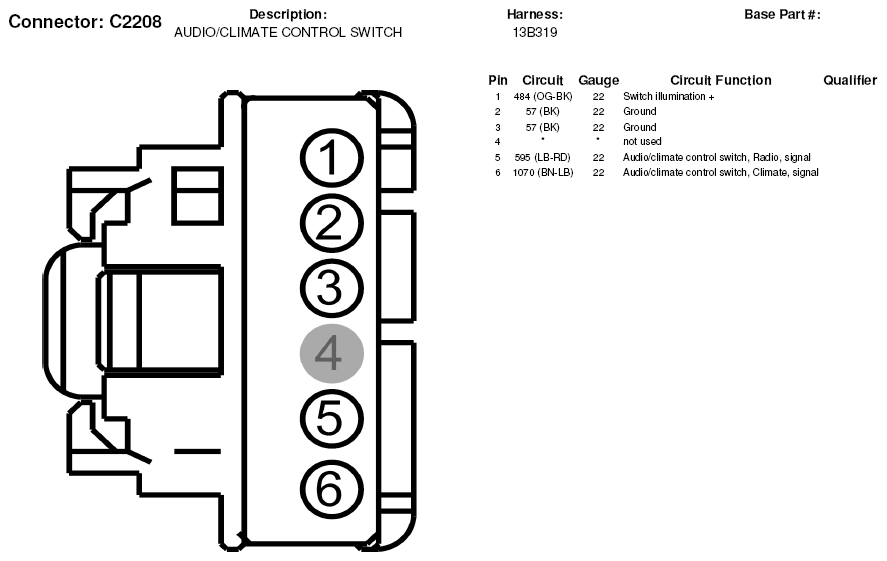

Fig 1: Audio Control Switch / Climate Control Switch Connector End View (C2208)
G05179319Courtesy of FORD MOTOR CO.
