Low/Reverse Clutch Assembly: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Depth Micrometer | 303-D075 (D92P-4201-A) or equivalent | |
| Piston Spring Compressor | 307-525 | |
| D-Clutch Stack-up Gauge | 307-554 |
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |

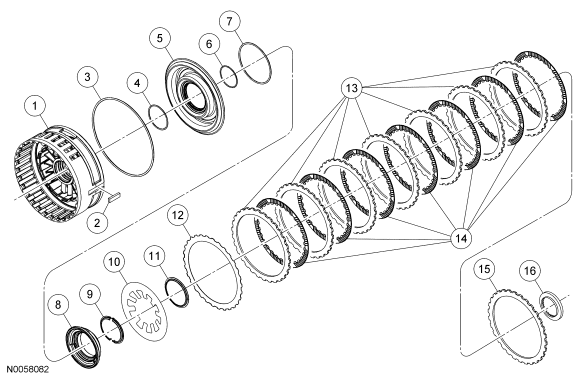

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G033 | Intermediate/low/reverse clutch cylinder |
| 2 | 7J135 | Center support keys (2 required) |
| 3 | 7G446 | Low/reverse clutch cylinder outer seal |
| 4 | 7G444 | Low/reverse clutch cylinder inner seal |
| 5 | 7D343 | Low/reverse clutch piston |
| 6 | - | Low/reverse clutch piston inner seal |
| 7 | - | Low/reverse clutch baffle plate outer seal |
| 8 | - | Low/reverse clutch baffle plate |
| 9 | - | Low/reverse clutch baffle plate retaining ring |
| 10 | 7D404 | Return spring |
| 11 | 7G494 | Return spring retainer |
| 12 | 7N572 | Pressure plate (internal to case) |
| 13 | 7E314 | Low/reverse clutch external splined steel plates (internal to case) |
| 14 | 7B164 | Low/reverse clutch internal splined friction plates (internal to case) |
| 15 | 7E314 | Wave spring (internal to case) |
| 16 | - | Roller bearing |
