Accelerator Pedal and Bracket : Notes

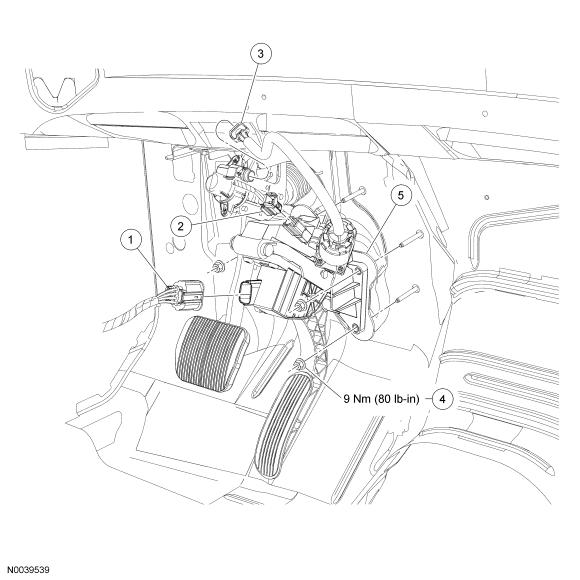

Fig 1: Adjustable Accelerator Pedal And Bracket Without Memory With Torque Specifications
GF0014216Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector
2 14489 Accelerator pedal motor electrical connector
3 9825 Accelerator pedal motor drive cable connector
4 N806385 Accelerator pedal and bracket retainer nut (3 required)
5 9F836 Accelerator pedal and bracket

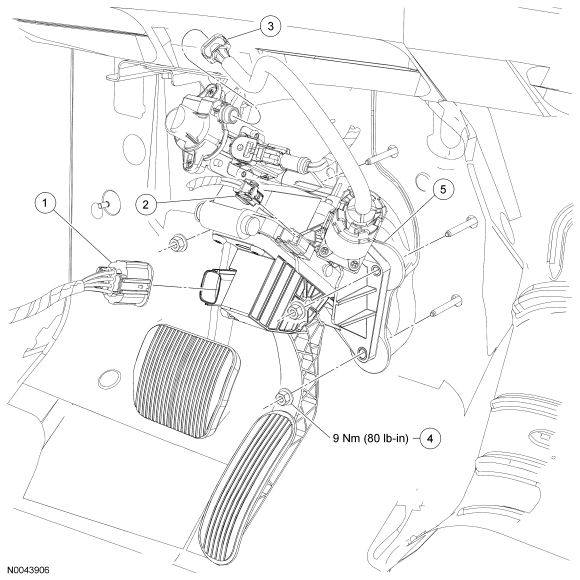

Fig 2: Adjustable Accelerator Pedal and Bracket With Memory With Torque Specifications
GF0018789Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector
2 14489 Accelerator pedal motor electrical connector
3 9825 Accelerator pedal motor drive cable connector
4 N806385 Accelerator pedal and bracket retainer nut (3 required)
5 9F836 Accelerator pedal and bracket
