HVAC-EATC Connector

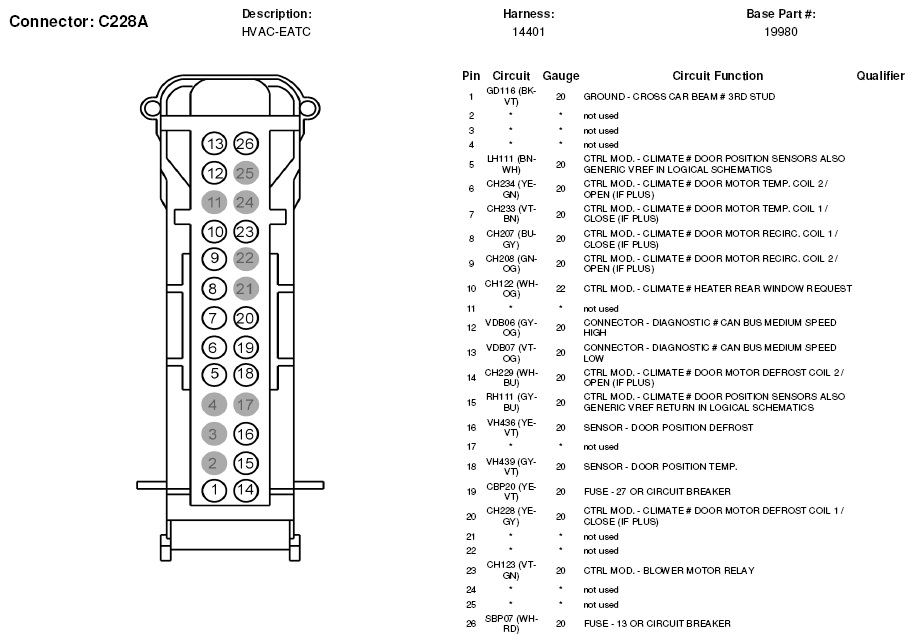

Fig 1: HVAC-EATC Connector End View (C228A)

G05602436

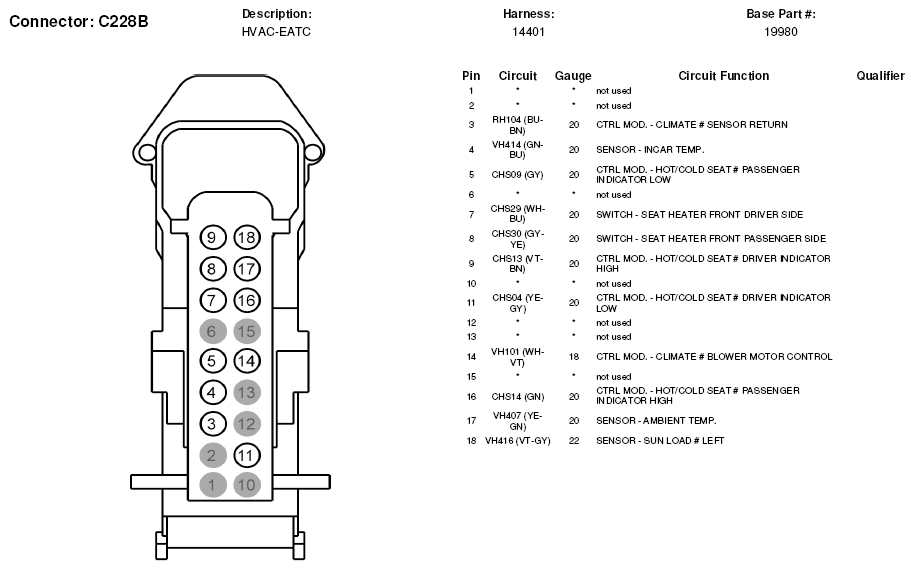

Fig 2: HVAC-EATC Connector End View (C228B)

G05602437
