System Diagram

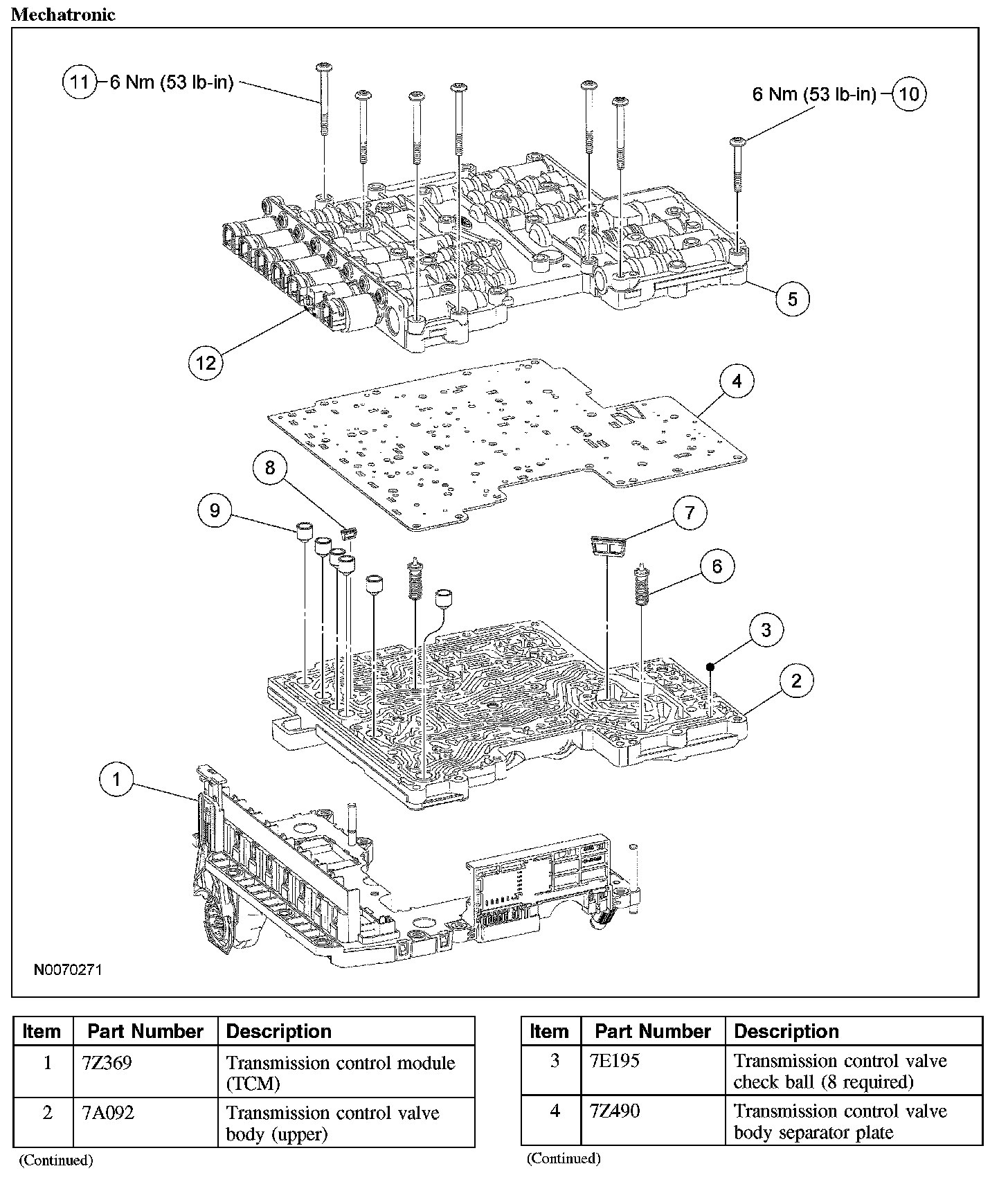

Mechatronic Assembly

Mechatronic (Part 1):




Mechatronic (Part 2):

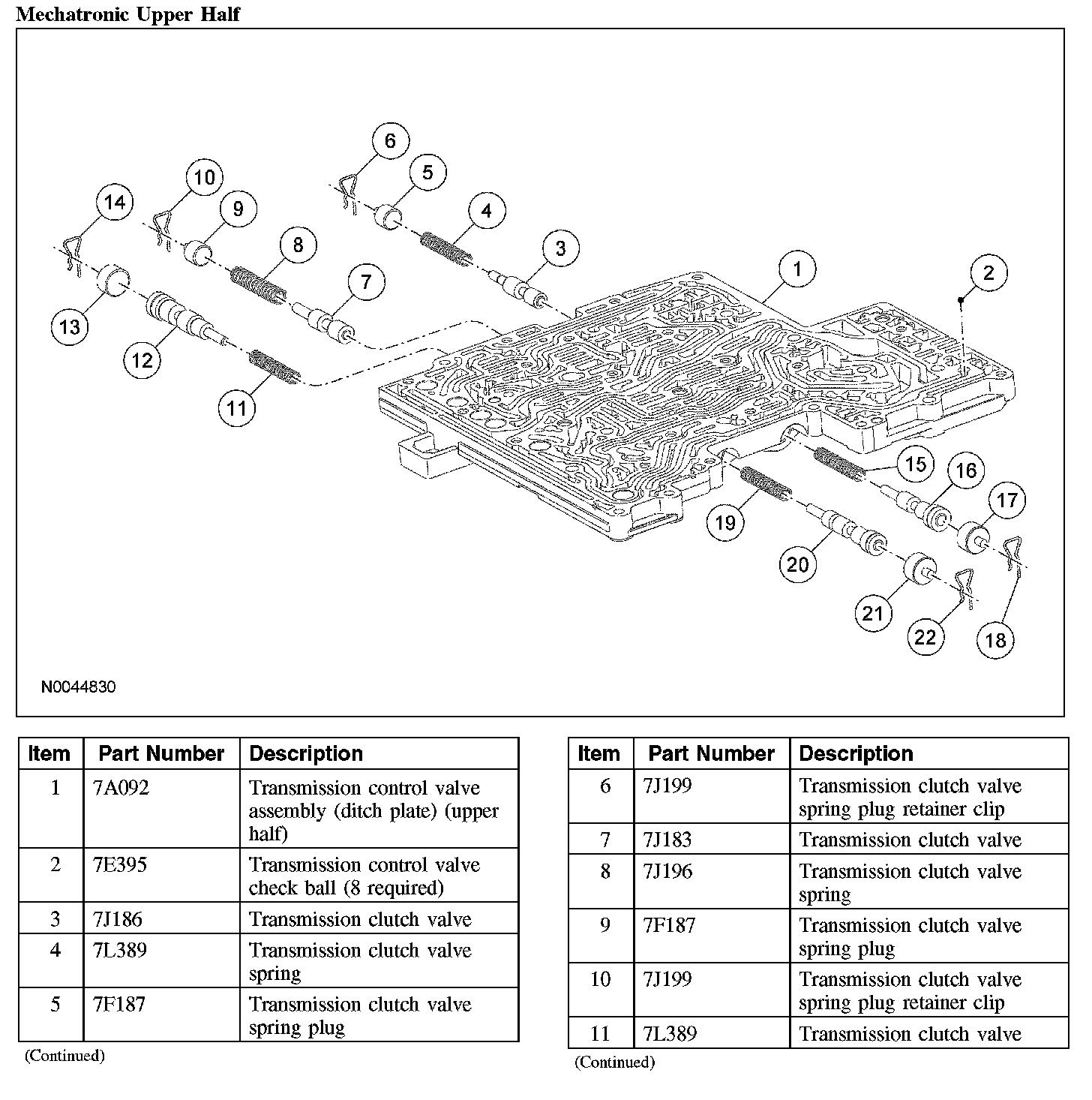

Mechatronic Upper Half (Part 1):




Mechatronic Upper Half (Part 2):

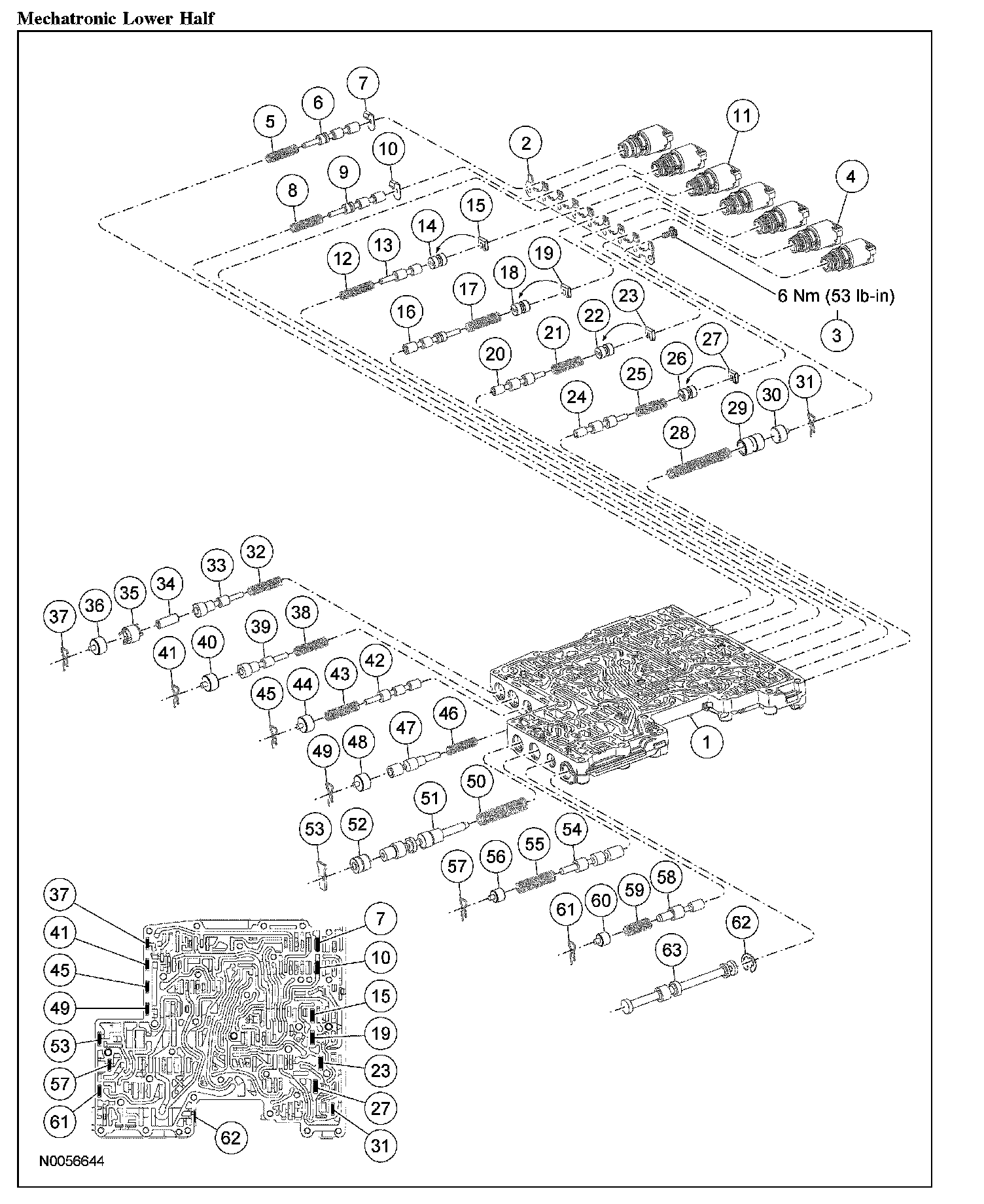

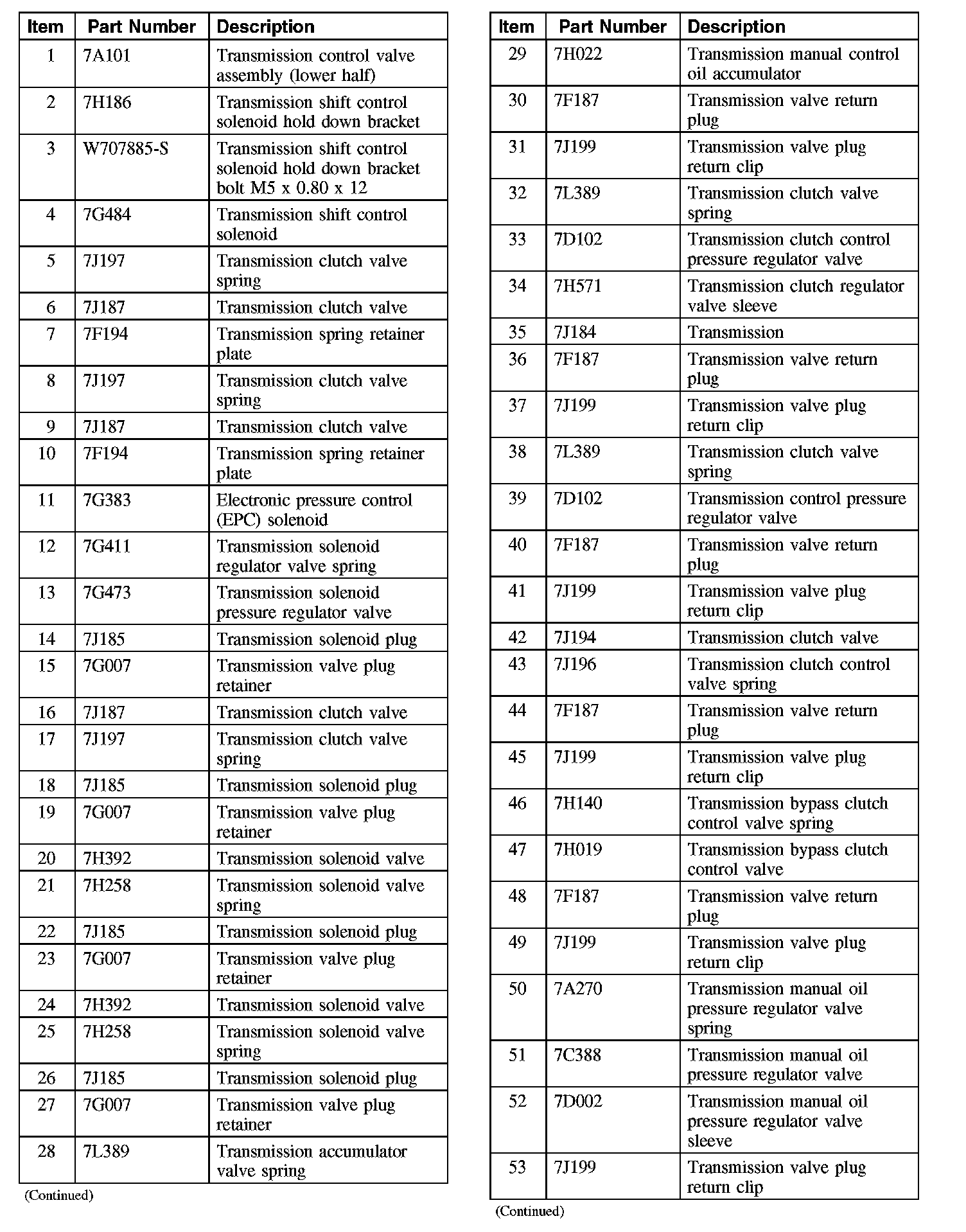

Mechatronic Lower Half (Part 1):




Mechatronic Lower Half (Part 2):




Mechatronic Lower Half (Part 3):
