Light Sensor Connector (C287)

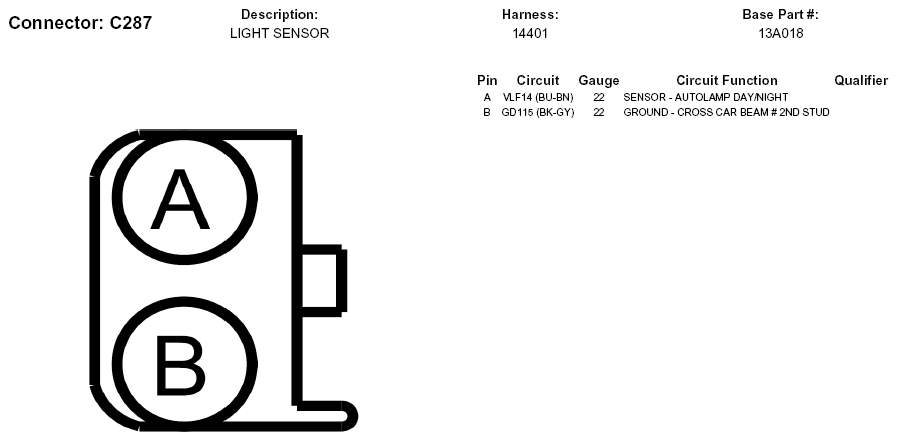

Fig 1: Light Sensor Connector End View (C287)
Courtesy of FORD MOTOR CO.
