Satellite Digital Audio Receiver System (SDARS) Module: Notes

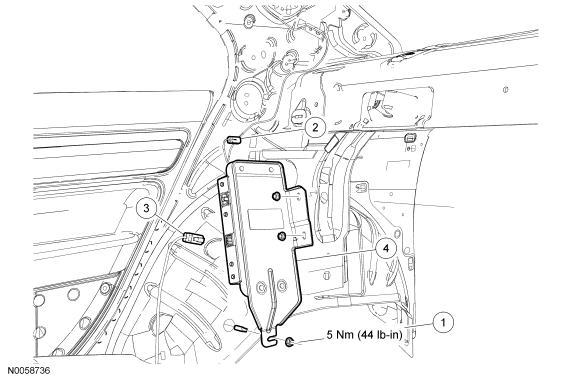

Fig 1: Exploded View Of Satellite Radio Receiver With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706131-S437	Satellite Digital Audio Receiver System (SDARS) module nuts (3 required)
2	18812	Satellite radio antenna cable electrical connector
3	-	SDARS module electrical connector (part of 14A005)
4	18C851	SDARS module
