Master Window Control Switch Connector End View - C535A

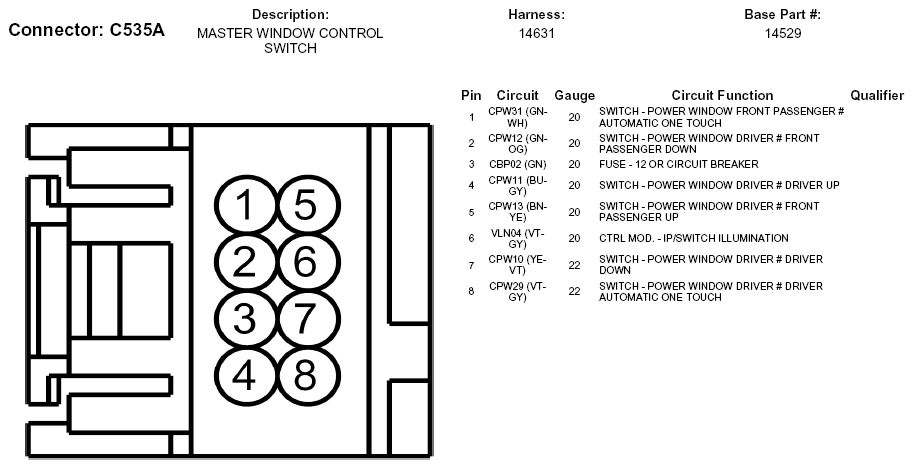

Fig 1: Master Window Control Switch Connector End View (C535A)
G05769933Courtesy of FORD MOTOR CO.
