Master Window Control Switch Connector End View - C535B

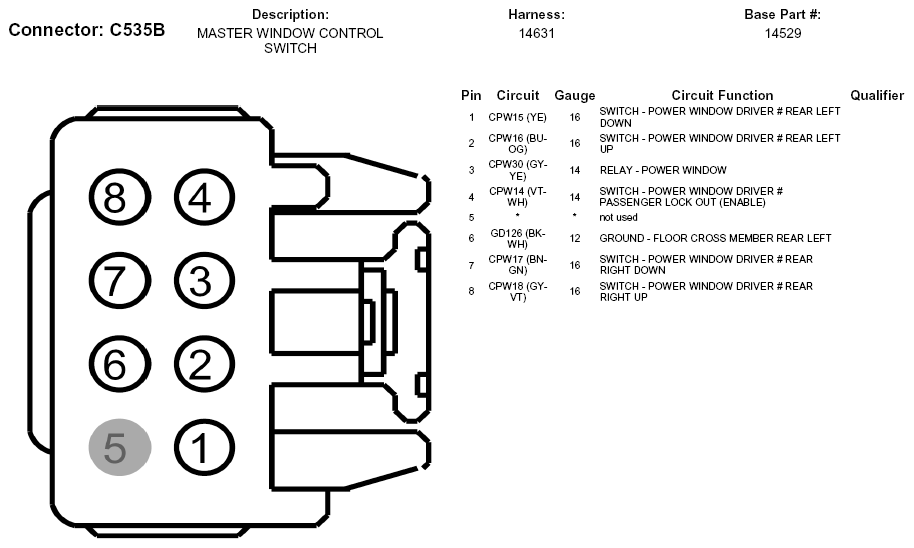

Fig 1: Master Window Control Switch Connector End View (C535B)
G05769934Courtesy of FORD MOTOR CO.
